SIGLENT SDS2000HD-PA Power Analysis Software

Name: SIGLENT SDS2000HD-PA Power Analysis Software
Brand: SIGLENT
SKU: 915314
Price: 241.94 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

id: 915314

General information

Warranty

USD 241.94

General information

SIGLENT SDS2000HD-PA Power Analysis Software

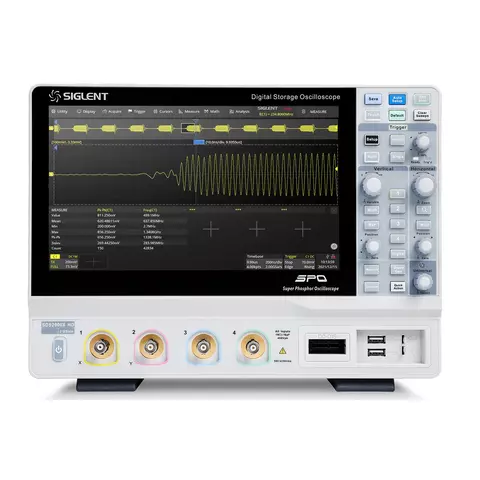

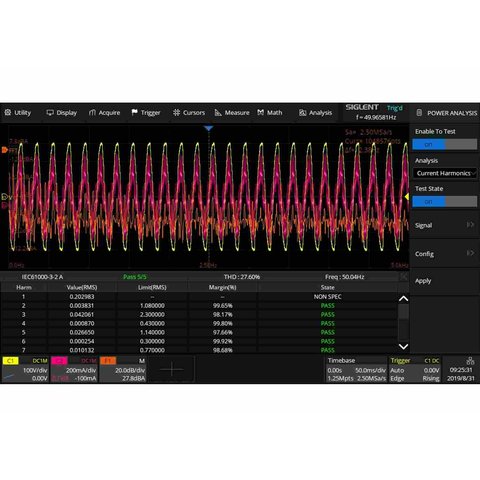

SIGLENT SDS2000HD-PA Power Analysis Software Preview 1

5 (1)

0.01 kg Warranty: 6 months

Unlocks the power analysis option for the SDS2000X HD 4-channel oscilloscope series. To use it, the DF2001A deskew fixture and at least one current probe are required.

USD 241.94

Impossible to estimate the shipping cost

When you purchase this item you get the activation key used to enable the described function in your device.

SIGLENT SDS2000HD-PA is a software feature for SIGLENT oscilloscopes of the SDS2000X HD series, which unlocks the power analysis option for the purpose of standardization, automation, and acceleration of measurements and streamlining of power supply testing.

Attention! To use the complete functionality of the option, the SIGLENT DF2001A deskew fixture and at least one current probe and are required.

The software option enables the following measurements:

Input Parameters
Power quality	Power factor, real power, apparent power, reactive power, phase angle, I&V crest
Current harmonics	Based on IEC 61000-3-2 A/B/C/D, up to 40th harmonics
Inrush current
Switching Parameters
Switching losses	Power loss, energy loss. Conduction: waveform, Rds (on), Vce (sat)
Slew rate	Top/base of voltage/current
Modulation	Ave, AC-RMS, Period, Width, Duty, Rise/Fall time etc.
Output Parameters
Output ripple
Turn on/Turn off
Transient response
Efficiency
Frequency Response Measurements
Power supply rejection ratio (PSRR)
Control loop response (Standard function available without the PA option)
