LED Display Receiver Card Huidu HD-R708
id: 919773
LED Display Receiver Card Huidu HD-R708
General information
Warranty
USD 14.00
General information
New
0.1 kg Warranty: 12 months
USD 14.00
Buy wholesale and save

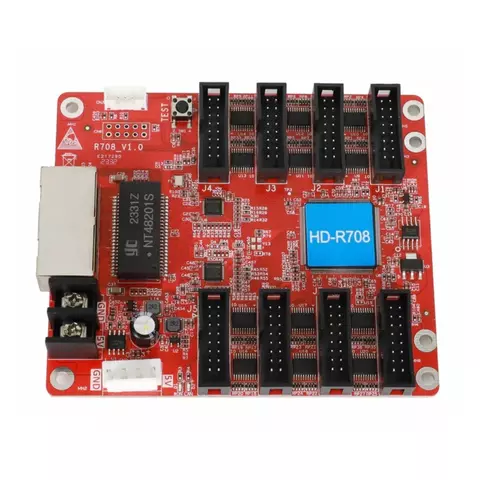

Huidu HD-R708 – full color LED display receiver card.
Features
- Pioneer setting method of separate panel RGB data group order, visualized connection
- Supports module misalignment installation and arbitrary debugging
- Supports row and column adjustion
- Supports static up to 1/128 scan modules
| Model | R708 | R712 | R716 | R732 |
|---|---|---|---|---|
| Loading capacity | Conventional chip: 128*512 PWM chip: 384*512 | Conventional chip: 128*1024 PWM chip: 256*1024 | Conventional chip: 160*1024 PWM chip: 320*1024 | Conventional chip: 128*1024 PWM chip: 256*1024 |
| USB Interface | 8×HUB75E | 12×HUB75E | 16×HUB75E | 8×HUB320 |
| Data output | 16 sets of RGB | 24 sets of RGB | 32 sets of RGB | 32 sets of RGB |
| Scanning | Static~1/128 | Static~1/128 | Static~1/128 | Static~1/128 |
| Module construction | √ | √ | √ | √ |
| Rotate animation | √ | √ | √ | √ |
| Specify setting | √ | √ | √ | √ |
| Extract rows/columns | √ | √ | √ | √ |
| Brightness correction | √ | √ | √ | √ |
| Arbitrary sor | √ | √ | √ | √ |
| Bright line control | √ | √ | √ | √ |
| Mapping | √ | √ | √ | √ |
