DJI Battery Chip Reset License (1 Year)
id: 923239
DJI Battery Chip Reset License (1 Year)
General information
Instructions
Video
Warranty
USD 139.00
General information
Video
Video
Availability in stock:
HK
Digital product. No refunds, no returns.
The order will be processed within 1 hour during business hours, starting from the moment we receive your full payment. and all the required information. We will send the beginner instructions to your email.
This license allows you to Reset, Repair or Program a DJI Drone Battery Chip using the NLBA1 Battery Analyzer.
Attention! Before buying, you need to read the instructions
USD 139.00
This license allows you to Reset, Repair or Program a DJI Drone Battery Chip using the NLBA1 Battery Analyzer.
Valid for 1 year.
Advantages
- Automatic Chip Name and Firmware Detection, no need to open the battery
- Ideal for drone repair shops
Main Features
Chip Reset / Repair

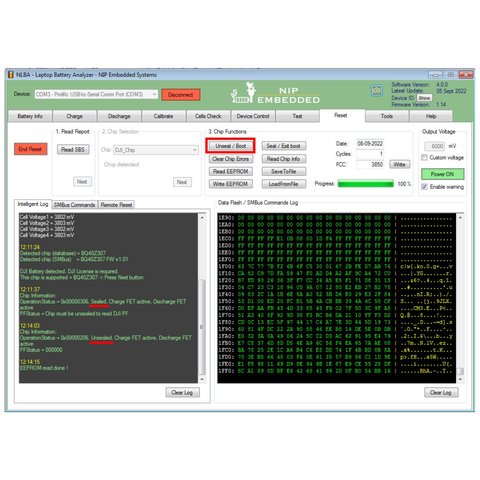

- Unsealing chips
- Most of the chips are unsealed using the master password within a few seconds.
- By pressing the Unseal button, the chip is unsealed and switched to FAS (Full Access) mode.

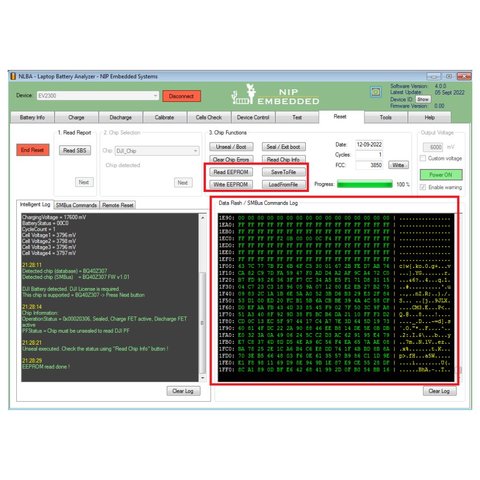

- Read / Write EEPROM/DataFlash
- After reading, the content of the EEPROM can be stored in a file on the computer.
- In the same way, the saved EEPROM image can be loaded and written using the Write function.

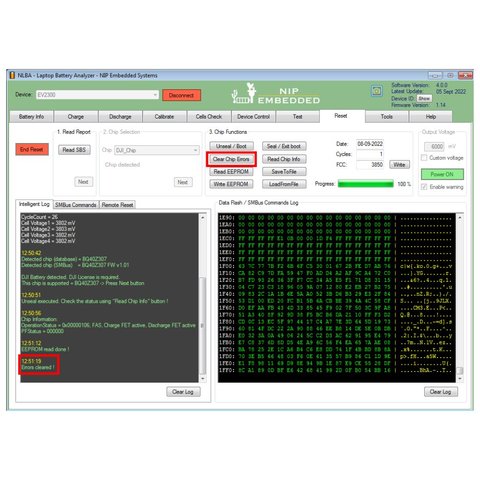

- Clearing chip errors (PF flags)
- This feature can clear the PFF (Permanent Failure Flag). A battery stops working and sets a PFF when it detectes a failure.
- Over-charged cells is the most common failure. After fixing/replacing bad cells and the checking the thermal fuse, clearing PFF is mandatory.

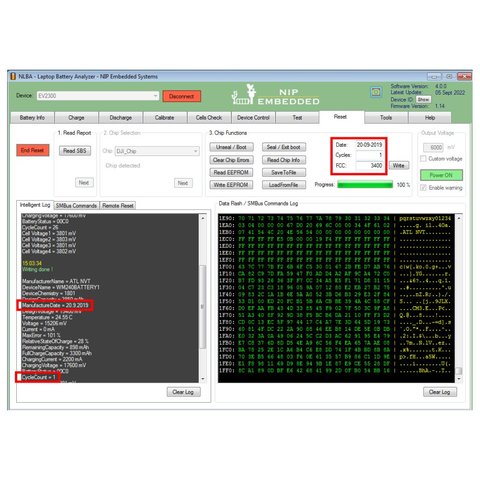

- Edit parameters
- The parameters that can be changed after unsealing are: manufacturer date, cycle count, and FCC.
- Note that resetting the Cycle Count parameter to 0 will not bring the battery back to life. Only clearing errors will make the battery work again (if the cells are good).
Demonstration
How It Works
- Step 1 - Read Parameters (the software marks the failure)
- Step 2 - Chip Selection (it is detected automatically most of the time)
- Step 3 - Unseal the battery and Clear Chip Errors
Supported Chips
| Texas Instruments Gas Gauge Chips | bq30z55, bq9003, bq40z307, bq40z50 |
| DJI Battery Type | DJI Drone Mavic Pro DJI Drone Mavic 2 Pro DJI Drone Mavic 2 Ent DJI Drone Mavic Air DJI Drone Mavic Air 2 DJI Drone Mavic Mini DJI Drone Mini 2 DJI Drone Spark DJI Drone Phantom 2 DJI Drone Phantom 3 DJI Drone Phantom 4 DJI Drone Phantom 4 Pro DJI Steadycam Ronin DJI Steadycam Ronin-M DJI Steadycam Ronin-S DJI Steadycam Osmo DJI SmartControl CrystalSky |
| DJI Battery Model | FB1-3830mAh-11.4V FB2-3850mAh-15.4V PB1-2375mAh-11.55V PB2-3500mAh-11.55V MB1-1480mAh-11.4V PH2-5200mAh-11.1V_v2.0 PH3-4480mAh-15.2V PH3-4480mAh-15.2V_Copy PH4-5350mAh-15.2V PH4-5870mAh-15.2V 844297-4350mAh-15.2V 423496-1580mAh-14.4V BG37-2400mAh-14.4V TB50-4280mAh-22.8V HB01-522365-980mAh-11.1V HB02-542465-1225mAh-11.55V MB2-2400mAh-7.2V BWX161-2250mAh-7.7V WB37-4920mAh-7.6V |
How to buy
- After we receive your payment in full and process your order, we will send a notification to your email with an activation code.
Instructions
How to buy
- After we receive your payment in full and process your order, we will send a notification to your email with an activation code.
How It Works
- Step 1 - Read Parameters (the software marks the failure)
- Step 2 - Chip Selection (it is detected automatically most of the time)
- Step 3 - Unseal the battery and Clear Chip Errors
