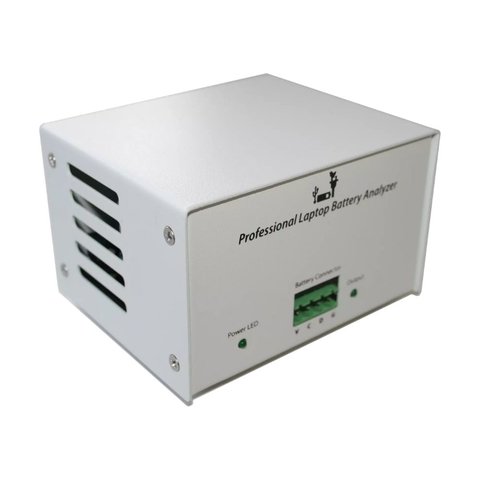

NLBA1 - Professional Laptop Battery Analyzer

NLBA1 is a professional tool for testing laptop batteries.

• Compatible with detachable laptop batteries and new flat internal batteries.
• Can diagnose faulty laptop batteries that are not detected by the laptop.
• Measures Internal Cell Resistance and displays cells health (Good,Poor,Bad).
• Measures Real Battery Capacity (both injected and discharged capacity).
• Advanced Log Analyzer during charging/discharging/calibrating.
• Detects the Battery Pinout by entering battery Part Number or Type Code.

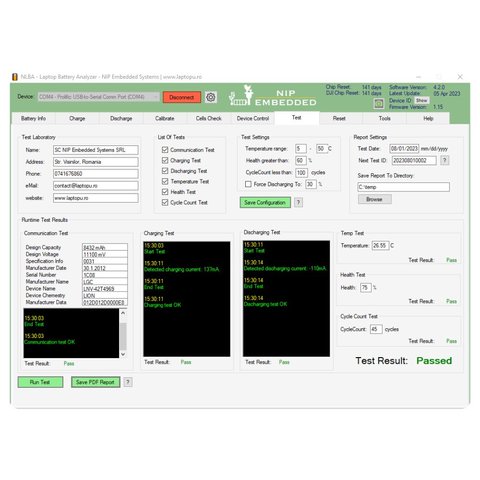

• Performs Functional Tests according to IATA and generates PDF report.

Main Features

• Testing

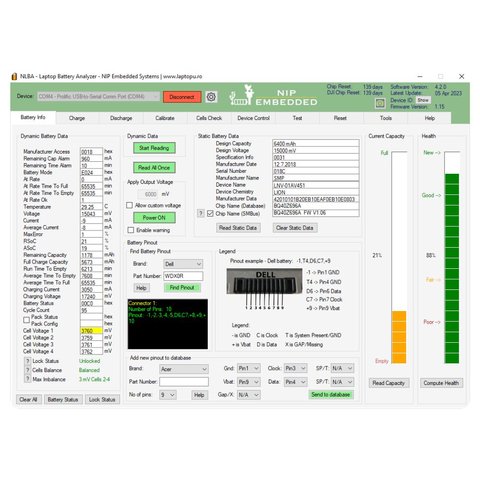

  • Read battery information
  • Perform quick health test
  • Check if the battery is locked
  • Compute the cells balance
• Charging
  • Charges almost all laptop batteries (max current 3.2A)
  • Safe and monitored charging process
  • Advanced log analyzer
• Discharging
  • Discharges batteries with a current down to -3.2A
  • Measure real battery capacity and max cells imbalance
  • Tracks cells voltage
  • Advanced log analyzer

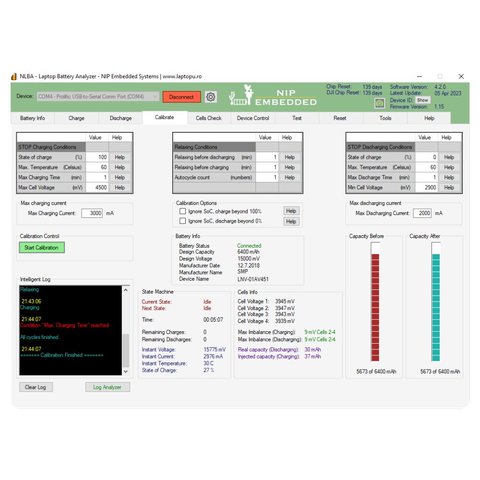

• Calibrating
  • Calibrates almost all laptop batteries
  • Performs correct calibration cycle
  • Fully customizable calibration process
  • Advanced log analyzer

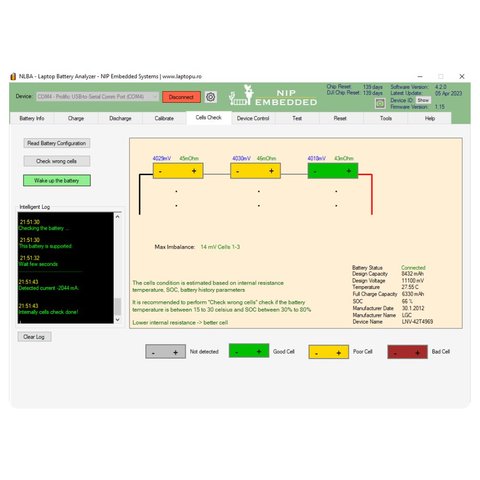

• Cells check
  • Compute internal cells resistance
  • Check cells health (Good, Poor or Bad)
  • Revive batteries with over-discharged cells (typically, batteries that are stored for a long time without charging)
• Chip Reset / Repair
  • Unsealing chips within seconds
  • Clearing chip errors (PF flags)
  • Read / Write EEPROM/DataFlash
  • Edit parameters: manufacturing date, cycle count, and FCC

Supported OS

• Windows 7/8/10, (32/64-bit)

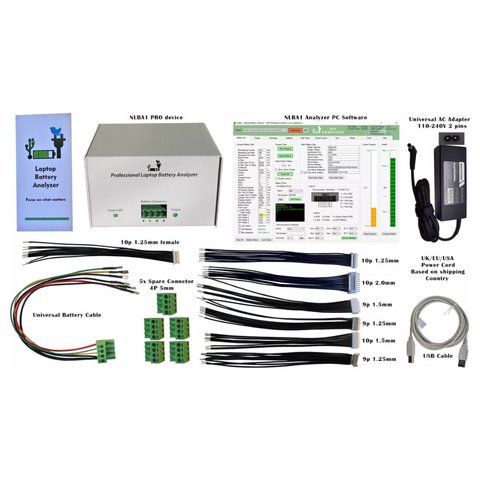

Package Content

1. NLBA1 PRO device Analyzer - 1 pc.
2. Universal Battery Cable (for external user-replaceable batteries) - 1 pc.
3. Spare Green Connector 4P 5mm pitch - 5 pcs.
4. Battery Cable 10p 1.25mm pitch, female, for internal batteries - 1 pc.
5. Battery Cable 10p 1.25mm pitch, male, for internal batteries - 1 pc.
6. Battery Cable 10p 2.0mm pitch, male, for internal batteries - 1 pc.
7. Battery Cable 9p 1.5mm pitch, male, for internal batteries - 1 pc.
8. Battery Cable 9p 1.25mm pitch, male, for internal batteries - 1 pc.
9. Battery Cable 10p 1.5mm pitch, male, for internal batteries - 1 pc.
10. Battery Cable 9p 1.25mm pitch, socket, male, for internal batteries - 1 pc.
11. Universal AC Adapter 110-240V 2 pins - 1 pc.
12. EU style 2 pins Power Cord - 1 pc.
13. USB Cable - 1 pc.
14. Manual - 1 pc.
