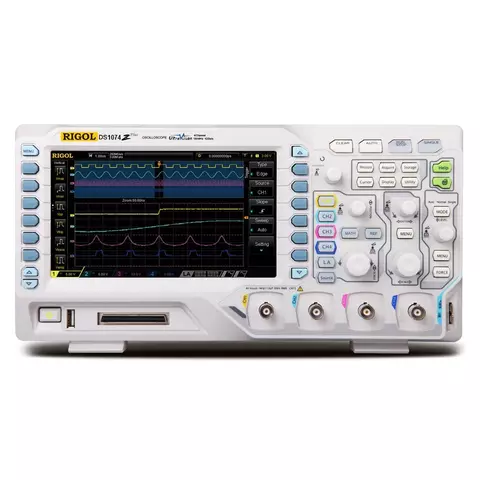

Digital Oscilloscope RIGOL DS1074Z-S Plus
RIGOL DS1074Z-S Plus is the new economic level four-channel mixed signal oscilloscope with 16 digital channels. This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS1074Z-S Plus provides up to 30 000 wfms/s waveform acquisition rate and a and 2-channel 25 MHz signal generator.
RIGOL DS1074Z-S Plus digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Bandwidth: 70 MHz.
- 4 analog + 16 digital channels.
- Real-time sample rate: up to 1 GSa/s.
- Memory depth: 12 Mpts.
- 2-channel 25 MHz signal generator
- Innovative UltraVision technology.
- Waveform acquisition rate up to 30,000 wfms/s.
- Low noise floor, dynamic Range: 1mV/div to 10V/div
- 7-inch color LCD.
- Standard interface: LAN, USB host and device, AUX, USB-GPIB (opt.)
- Compact design, small dimensions, light weight.
Technical Specifications
| Bandwidth | 70 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 (MSO upgradable) |
| Real time sample rate | 1 GSa/s (single-channel), 500 MSa/s (dual-channel), 250 MSa/s (full-channel) |
| Memory depth | 12 Mpts, 24 Mpts (opt.) |
| Waveform acquisition rate | 30,000 wfms/s (Max. ) |
| Vertical sensitivity range | 1 mV/div - 10 V/div |
| Offset range | 1 mV/div to 499 mV/div: ± 2 V 500 mV/div to 10 V/div: ± 100 V |
| Vertical resolution | 8 bit |
| Math | Add, Subtract, Multiply, Divide, FFT, editable |
| Output voltage | ~ 3 V, peak-peak |
| Frequency | 1 kHz |
| General Specifications | |
|---|---|
| Power | 50 W (max.) |
| Power voltage | 100-240 V, 45-440 Hz |
| Temperature range | Operation: 0°C to +50°C Non-operation: -20°C to +70°C |
| Cooling method | Fan |
| Display | 7" color LCD (800×480) |
| Weight | 3.8 kg (± 0.5 kg) |
| Dimensions | 313.1 × 160.8 × 122.4 mm |
Data Sheet
Download RIGOL DS1074Z-S Plus Data Sheet.
User Manual
Download RIGOL DS1074Z-S Plus User Guide.
Video
Package Contents
- RIGOL DS1074Z-S Plus digital oscilloscope — 1 pc.
- Passive probes — 4 pcs.
- Power cable — 1 pc.
- USB data cable — 1 pc.
Digital oscilloscope screen size:
- 7.0" TFT display
Digital oscilloscope number of channels:
- 4-channel
- With 16 channel logic analyzer
Digital oscilloscope type:
- Desktop
- Mixed-signal
- With built-in generator
Digital oscilloscope sample rate:
- 1 GS/s
Digital oscilloscope bandwidth:
- 70 MHz
Digital oscilloscope storage capacity:
- 12 MB
