Super Phosphor Oscilloscope SIGLENT SDS1104X-E
id: 874773
Video
Video
Video
Video
Bestseller
id: 874773 6 kg
Availability in stock:
HK
Warranty: 36 months 4-channel phosphor oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Add to wishlist
Compare
Compare
Suggest your price
Buy wholesale and save
Frequently bought together
Add to wishlist
ID: 887352
Waveform Generator Option SIGLENT SDS1000X-E-FG (Activation Key) for SIGLENT SDS1104X-E, SDS1204X-E
USD 109.00
Add to wishlist
Add to cart
25 MHz arbitrary waveform generator for SIGLENT SDS1104X-E, SDS1204X-E digital oscilloscopes.
Availability in stock:
HK
ID: 887352 0.001 kg
Bestseller
Add to wishlist
ID: 887305
Logic Analyzer Software SIGLENT SDS1000X-E-16LA for SIGLENT SDS1000X-E
USD 109.00
Add to wishlist
Add to cart
MSO function software option for SIGLENT SDS1104X-E, SDS1204X-E oscilloscopes. Adds 16-channel, 500 MSa/s, 14 Mpts Logic Analyzer.
Availability in stock:
HK
ID: 887305
Overview
Video
Warranty
Overview

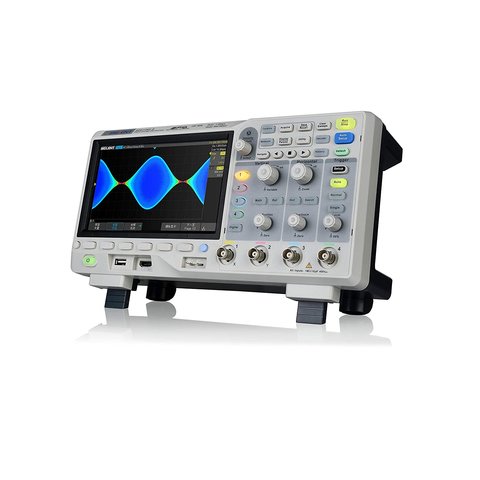

SIGLENT SDS1104X-E is a 4-channel Super Phosphor Oscilloscope with 100 MHz bandwidth, 1 GSa/s sample rate, and a standard record length of 14 Mpts.
Features
- New generation of SPO (Super Phosphor Oscilloscope) technology
- Low background noise, supports 500 μV/div to 10 V/div voltage scales
- 38 automatic measurement functions
- Supports Statistics calculations, Zoom measurement, Gating measurement, Math measurement, History measurement, Ref measurement
- Waveform math functions (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
- High Speed hardware based Pass/Fail function
- Large 7-inch TFT LCD display with 800×480 resolution
- Abundant interfaces: USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger
- Supports multi-language display and embedded online help
Technical Specifications
| SDS1072X-E | SDS1102X-E | SDS1202X-E | SDS1104X-E | |
|---|---|---|---|---|
| Bandwidth | 70 MHz | 100 MHz | 200 MHz | 100 MHz |
| Channels | 2 + 1 EXT | 2 + 1 EXT | 2 + 1 EXT | 4 |
| Real-time sampling rate | 1 GSa/s | |||
| Memory depth | 14 Mpts/CH (Single-Channel); 7 Mpts/CH (Dual-Channel) | |||
| Waveform capture rate | 400,000 wfms/s (Sequence Mode) | |||
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval, Time out (Dropout), Pattern, Video | |||
| Vertical resolution | 500 μV/div to 10 V/div | |||
| Math Operators | Addition, subtraction, multiplication, division, FFT, differential, integral, square root | |||
| FFT processing | 1 Mpts | |||
| Auto measurements | 38 types: Statistics calculations, Zoom measurement, Gating measurement, Math measurement, History measurement, Ref measurement | |||
| Decoding | I2C, SPI, UART/RS232, CAN and LIN | |||
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Ext Trigger | |||
| Display | 7'' display (800×480 pixels) | |||
| Power | AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max | |||
Functions Overview
Quick Start Guide
Download SIGLENT SDS1000X-E Series Quick Start Guide.
User Manual
Download SIGLENT SDS1000X-E Series User Manual.
Programming Guide
Download SIGLENT SDS1000X-E Series Programming Guide.
Video
You'll find even more video reviews in the Video tab. Go and check it out!

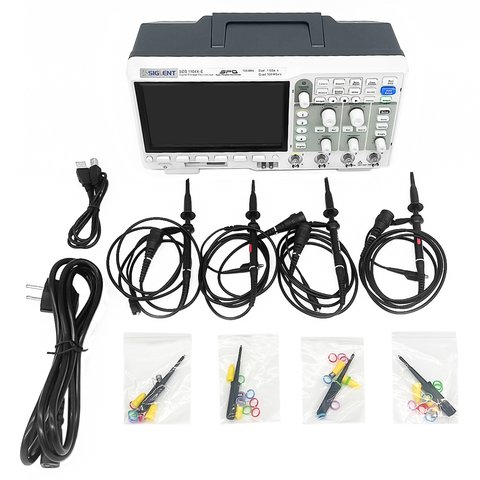

Package Contents
- SIGLENT SDS1104X-E Super Phosphor Oscilloscope — 1 pc.

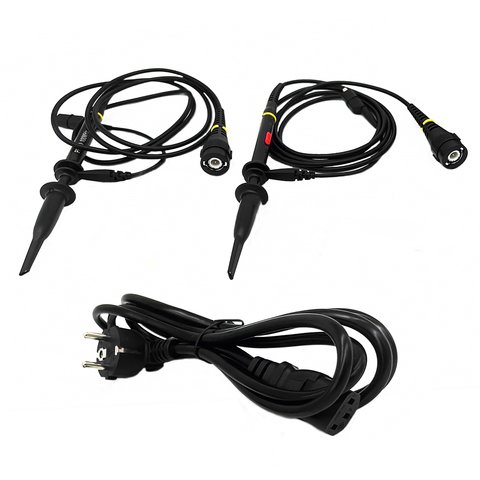

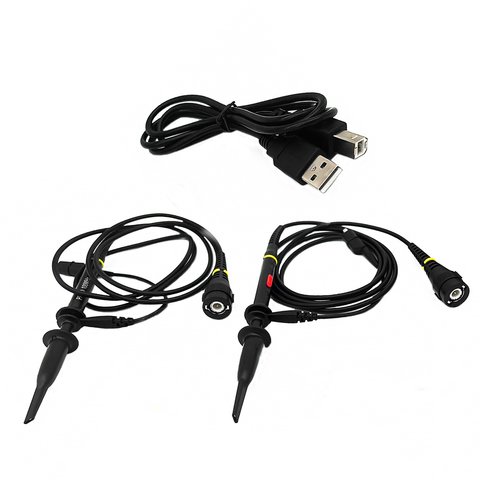

- Passive Probe 1x 10x — 4 pcs.
- USB Cable — 1 pc.
- Power Cord — 1 pc.
Digital oscilloscope screen size:
- 7.0" TFT display
Digital oscilloscope number of channels:
- 4-channel
Digital oscilloscope bandwidth:
- 100 MHz
Digital oscilloscope type:
- Desktop
- Phosphor
Digital oscilloscope sample rate:
- 1 GS/s
Digital oscilloscope storage capacity:
- 14 MB
Video
Warranty
Bestseller
ID: 874773
Super Phosphor Oscilloscope SIGLENT SDS1104X-E
USD 499.00
Add to cart
