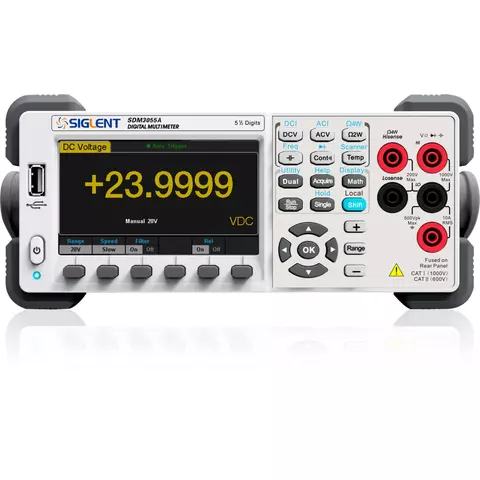

Precision Digital Multimeter Siglent SDM3055A
Siglent SDM3055A is a 5 ½ digit digital multimeter that features many math and statistical functions. It includes a variety of communication interfaces with easy setup, is equipped with a 4.3-inch TFT-LCD screen, and is designed for users who need high performance, multiple functions, and automatic measurements. Siglent SDM3055A is a high performance desktop multimeter.
Features
- Measurement speed: up to 150 rdgs/s
- 1GB Nand Flash total capacity, mass storage settings and data files, supports expandable storage to external U disk
- Built-in thermocouple
- Chinese and English menus
- Built-in help system to facilitate information acquisition and document management
- Extensive math functions which include measuring the signal’s minimum / maximum / average / standard deviation. Also readings can be displayed in dBm, dB, Pass / Fail, relative value, histograms, trend curves, bar graphs, etc
- Supports remote command and control, and is provided with PC software EASYSDM
- 4.3-inch (480×272) true color TFT large screen LCD, and comes configured for a variety of communication interfaces with USB Device, USB Host, LAN ports, GPIB.
Technical Specifications
Function | Range | Accuracy | Resolution |
---|---|---|---|
DC voltage measurement | 200.000 mV 2.00000 V 20.0000 V 200.000 V 1000.00 V |
0.015%+0.004% 0.015%+0.003% 0.015%+0.004% 0.015%+0.003% 0.015%+0.003% |
1 µV 10 µV 100 µV 1 mV 10 mV |
AC voltage measurement 20 Hz - 45 Hz 45 Hz - 20 kHz 20 kHz - 50 kHz 50 kHz - 100 kHz |
200.000 mV | 1.5%+0.10% 0.2%+0.05% 1.0%+0.05% 3.0%+0.05% |
1 µV |
20 Hz - 45 Hz 45 Hz - 20 kHz 20 kHz - 50 kHz 50 kHz - 100 kHz |
2.00000 V | 1.5%+0.10% 0.2%+0.05% 1.0%+0.05% 3.0%+0.05% |
10 µV |
20 Hz - 45 Hz 45 Hz - 20 kHz 20 kHz - 50 kHz 50 kHz - 100 kHz |
20.0000 V | 1.5%+0.10% 0.2%+0.05% 1.0%+0.05% 3.0%+0.05% |
100 µV |
20 Hz - 45 Hz 45 Hz - 20 kHz 20 kHz - 50 kHz 50 kHz - 100 kHz |
200.000 V | 1.5%+0.10% 0.2%+0.05% 1.0%+0.05% 3.0%+0.05% |
1 mV |
20 Hz - 45 Hz 45 Hz - 20 kHz 20 kHz - 50 kHz 50 kHz - 100 kHz |
750.000 V | 1.5%+0.10% 0.2%+0.05% 1.0%+0.05% 3.0%+0.05% |
10 mV |
DC current measurement | 200.000 µA 2.00000 mA 20.0000 mA 200.000 mA 2.00000 A 10.0000 A |
0.055%+0.005% 0.055%+0.005% 0.095%+0.020% 0.070%+0.008% 0.170%+0.020% 0.250%+0.010% |
0.001 µA 0.01 µA 0.1 µA 1 µA 10 µA 100 µA |
AC current measurement 20 Hz - 45 Hz 45 Hz - 2 kHz 2 kHz - 10 kHz |
20.0000 mA | 1.5%+0.10% 0.5%+0.10% 2.5%+0.20% |
0.1 µA |
20 Hz - 45 Hz 45 Hz - 2 kHz 2 kHz - 10 kHz |
200.000 mA | 1.5%+0.10% 0.5%+0.10% 2.5%+0.20% |
1 µA |
20 Hz - 45 Hz 45 Hz - 2 kHz 2 kHz - 10 kHz |
2.00000 A | 1.5%+0.20% 0.5%+0.20% 2.5%+0.20% |
10 µA |
20 Hz - 45 Hz 45 Hz - 2 kHz 2 kHz - 5 kHz |
10.0000 A | 1.5%+0.15% 0.5%+0.15% 2.5%+0.20% |
100 µA |
Resistance measurement | 200.000 Ω 2.00000 kΩ 20.0000 kΩ 200.000 kΩ 2.00000 MΩ 10.0000 MΩ 100.000 MΩ |
0.030%+0.005% 0.020%+0.003% 0.020%+0.003% 0.020%+0.010% 0.040%+0.004% 0.250%+0.003% 1.750%+0.004% |
0.001 Ω 0.01 Ω 0.1 Ω 1 Ω 10 Ω 100 Ω 1 kΩ |
Capacitance measurement | 2.000 nF 20.00 nF 200.0 nF 2.000 µF 20.00 µF 200.0 µF 10000 µF |
3.0%+1.0% 1.0%+0.5% 1.0%+0.5% 1.0%+0.5% 1.0%+0.5% 1.0%+0.5% 2.0%+0.5% |
1 pF 10 pF 100 pF 1 nF 10 nF 100 nF 1 µF |
Frequency measurement | 20 Hz - 2 kHz 2 kHz - 20 kHz 20 kHz - 200 kHz 200 kHz - 1 MHz |
0.01%+0.003% 0.01%+0.003% 0.01%+0.003% 0.01%+0.003% |
0.001 Hz |
Period measurement | 1 μs ~ 0.05 s | ||
Diode test | range fixed 2 V | ||
Continuity test | range fixed 2 kΩ | ||
Temperature measurement | Support thermocouple, RTD temperature sensor | ||
General Characteristics | |||
Power supply | 230 V / 50 Hz / 110 V / 60 Hz mains connection | ||
Maximum input voltage | 1000V | ||
Display | 4.3" color LCD, 480×272 | ||
Configuration Interface | USB Device,USB Host,LAN, GPIB | ||
Size | 282 mm × 260 mm × 105 mm | ||
Weight | 3300 g |
Package Contents
- Siglent SDM3055A Digital Multimeter — 1 pc.
- Power Cord — 1 pc.
Multimeter type:
- Digital
- Desktop
Multimeter range selection:
- Auto range
Multimeter digit capacity:
- 240 000
Multimeter DC voltage:
- Up to 1000 V
Multimeter AC voltage:
- Up to 750 V
Multimeter frequency:
- Up to 1 MHz
Multimeter DC:
- Up to 10 A
Multimeter AC:
- Up to 10 A
Multimeter inductance:
- No
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter duty cycle:
- No
Multimeter true RMS:
- Yes
Multimeter backlight:
- Yes
Multimeter PC connection:
- USB
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- Yes
Multimeter transistor check:
- No
Multimeter continuity test:
- Yes
Multimeter capacitance:
- Up to 10 000 μF
Multimeter resistance:
- Up to 100 MOhm
Multimeter NCV:
- No
Multimeter battery testing:
- No
