Optical Time Domain Reflectometer EXFO MaxTester 710B
id: 864761
Made in Canada
id: 864761 3.8 kg 110, 220 V Warranty: 12 months
Complex Device, Tailored Solutions: We're Here to Help!
This device is highly sophisticated. If needed, we're ready to assist you in finding the best model for your specific needs.
Wavelength: 1310/1550 nm. Dynamic range: 30/28 dB. Event dead zone: 1 m. Attenuation dead zone: 4 m.
Add to wishlist
Compare
Compare
Overview
Warranty
Overview

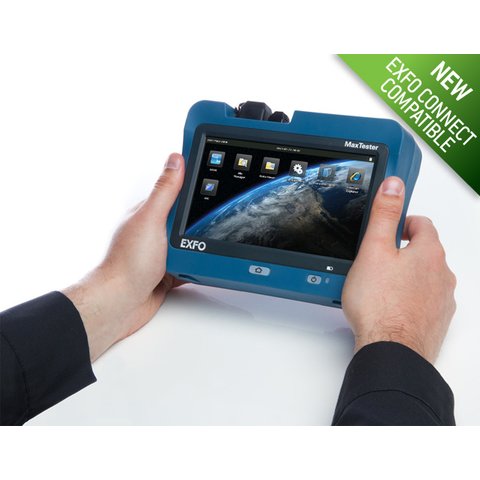

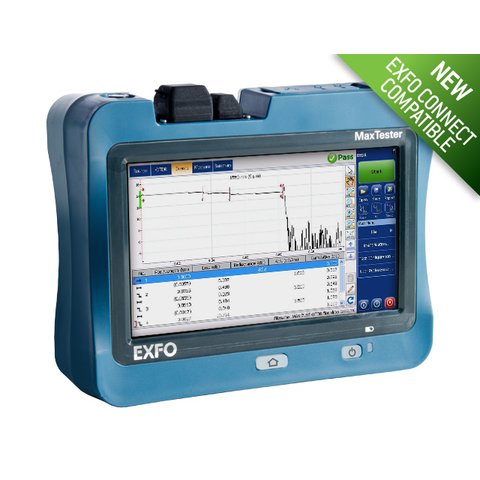

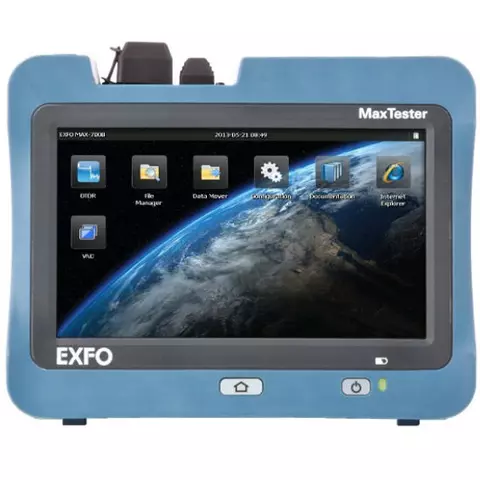

EXFO MaxTester 710B Optical Time Domain Reflectometer is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation.
EXFO MaxTester 710B is iOLM-ready (iOLM – intelligent Optical Link Mapper, a dynamic application that turns complex OTDR trace analysis into a one-touch task).
Features
- Handy, lightweight, powerful, tablet-like device
- 7-inch, outdoor-enhanced touchscreen
- 12-hour autonomous operation
- Rugged design built for outdoor operation
Application
- FTTx last-mile installation and troubleshooting
- Short access network testing
- FTTA-fiber DAS installations
- CATV/HFC network testing
Technical Specifications
| Wavelength | 1310/1550 nm |
| Dynamic range | 30/28 dB |
| Event dead zone | 1 m |
| Attenuation dead zone | 4 m |
| Distance range | 0.1 – 160 km |
| Pulse width | 5 ns – 20 μs |
| Linearity | ±0.05 dB |
| Loss threshold | 0.01 dB |
| Loss resolution | 0.001 dB |
| Sampling resolution | 0.04 to 5 m |
| Sampling points | Up to 256 000 |
| Display | Two USB 2.0 ports RJ-45 LAN 10/100 Mbit/s |
| Storage | 2 GB internal memory (20 000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery |
| Power supply | AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum |
Reflectometer dynamic range:
- 30 dB
- 28 dB
Reflectometer wave length:
- 1310 nm
- 1550 nm
Reflectometer fiber type:
- Singlemode
