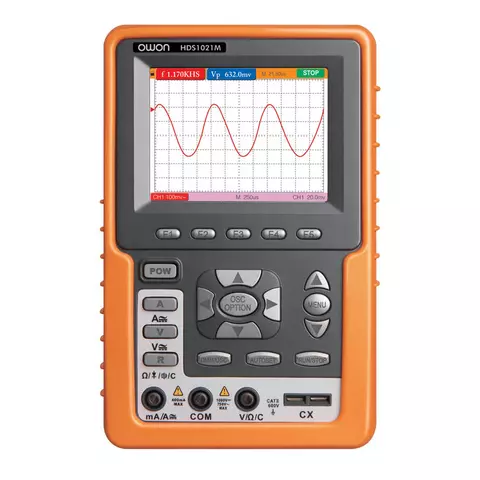

Handheld Digital Oscilloscope OWON HDS1021M
id: 856640
id: 856640 3 kg 110, 220 V Warranty: 12 months
Single-channel lightweight handheld oscilloscope with 20 MHz bandwidth, 100 MS/s sample rate and a set of multimeter measurement functions.
Compare
Compare
Overview
Warranty
Overview
OWON HDS1021M is a single-channel lightweight handheld oscilloscope with 20 MHz bandwidth and 100 MS/s sample rate. OWON HDS1021M also performs multimeter measuring functions: measures AC/DC voltage and current, resistance and capacitance.
Features
- 3.5-inch color LCD
- Real-time sample rate - 100 MS/s
- Record length - 6 000 points
- Manual- and auto-ranging multimeter modes
- Multimeter functions:
- DC voltage and current
- AC voltage and current
- Resistance
- Capacitance
Technical Specifications
| Bandwidth | 20 MHz |
| Rise time | ≤ 17.5 ns |
| Real-time sampling rate | 100 MS/s |
| Vertical sensitivity | 5 mV/div ～ 5 V/div |
| Vertical resolution | 8 bit |
| Record length (max) | 6 000 points |
| Trigger type | Edge, Video |
| Waveform storage | 4 waveforms |
| Multimeter | |
|---|---|
| DC voltage | 400 mV / 4 V / 400 V: ±(1±1%+5) |
| AC voltage | 4 V / 40 V / 400 V: ±(1±3%+5) |
| DC current | 40 mA / 400: ±(1.5%±1) / 20 A: ±(3%±3) |
| AC current | 40 mA: ±(1.5%±3) / 400 mA: ±(2%±1) / 20 A: ±(3%±3) |
| Resistance | 400 Ω: ±(1%±3) / 40 MΩ |
| Capacitance | 51.2 nF - 100 μF: ±(3%±3) |
| General characteristics | |
| Max.display | 4000 |
| LCD size | 3.5" |
| Power | power supply 100-240 V AC, 50/60 Hz battery 7.4 V |
| Dimensions | 180 × 115 × 40 mm |
| Weight | 455 g |
Package Contents
- OWON HDS1021M digital oscilloscope module - 1 pc.
- Probe - 1 pc.
- Test lead - 1 pair
- Power adaptor - 1 pc.
- Current extend module - 1 pc.
- Small capacitance module - 1 pc.
- Soft bag - 1 pc.
- USB cable - 1 pc.
- Software CD - 1 pc.
- User manual - 1 pc.
Digital oscilloscope number of channels:
- Single-channel
Digital oscilloscope type:
- Portable
- Multimeter
Digital oscilloscope bandwidth:
- 20 MHz
Digital oscilloscope sample rate:
- 100 MS/s
Digital oscilloscope screen size:
- 3.5" TFT
Digital oscilloscope storage capacity:
- 6 kB
