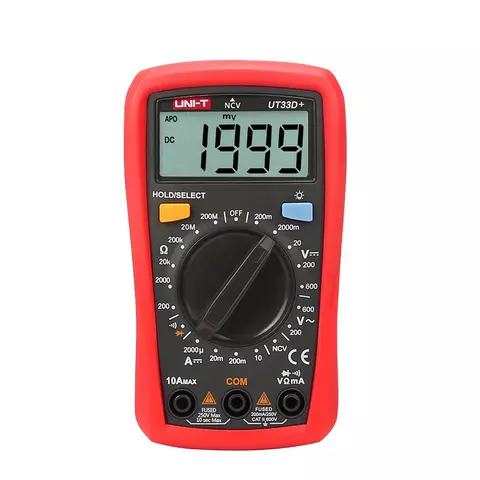

Digital Multimeter UNI-T UT33D+
Frequently bought together
UNI-T UT33D+ is a pocket size digital multimeter which can measure AC/DC voltage, DC current, resistance, tests diodes and checking continuity, non-contact voltage detection (NCV).
Features
- Measurement functions:
- AC/DC voltage
- DC current
- resistance
- continuity test (with buzzer)
- diode test
- non-contact voltage detection (NCV)
- Data Hold function
- Low battery indication
Technical Specifications
| Display | 1999 digit LCD, backlight, 48 × 16 mm | |
| DC voltage | Range | 200 mV / 2000 mV / 20 V / 200 V / 600 V |
| Accuracy | ±(0.5%+2) | |
| AC voltage | Range | 200 V / 600 V |
| Accuracy | ±(1.2%+10) | |
| DC current | Range | 2000 µA / 20 mA / 200 mA / 10 A |
| Accuracy | ±(1%+2) | |
| Resistance | Range | 200 Ω / 2000 Ω / 20 kΩ / 200 kΩ / 20 MΩ / 200 MΩ |
| Accuracy | ±(0.8%+2) | |
| Power | 2 pcs. AAA | |
| Dimensions | 130 × 73.5 × 35 mm | |
| Weight | 156 g | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Multimeter UNI-T UT33D+ — 1 pc.
- Test leads — 1 pair
- AAA 1.5V battery — 2 pcs.
- User manual — 1 pc.
Note! Batteries are not included in the package.
Multimeter type:
- Digital
Multimeter range selection:
- Manual range
Multimeter digit capacity:
- 1999
Multimeter DC voltage:
- Up to 600 V
Multimeter AC voltage:
- Up to 600 V
Multimeter resistance:
- Up to 200 MOhm
Multimeter DC:
- Up to 10 A
Multimeter AC:
- Does not measure the AC
Multimeter capacitance:
- Does not measure the capacitance
Multimeter frequency:
- Does not measure the frequency
Multimeter inductance:
- No
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter duty cycle:
- No
Multimeter true RMS:
- No
Multimeter backlight:
- Yes
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- No
Multimeter continuity test:
- Yes
Multimeter NCV:
- Yes
Multimeter battery testing:
- No
