Digital Multimeter Accta AT-201

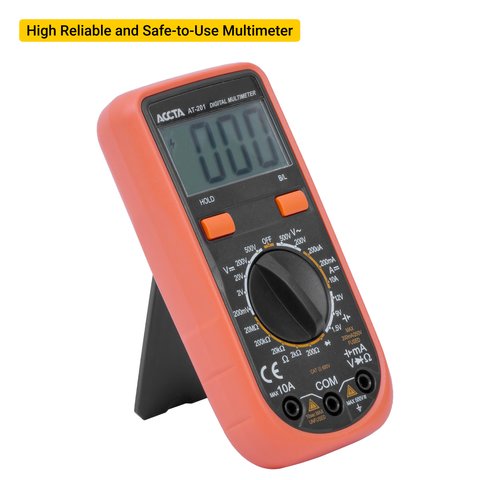

Accta AT-201 is a compact digital multimeter that can be used to measure DC/AC voltage, DC current and resistance, and to perform diode and battery testing. It's equipped with a large 1999 count LCD. The device is very reliable and safe.

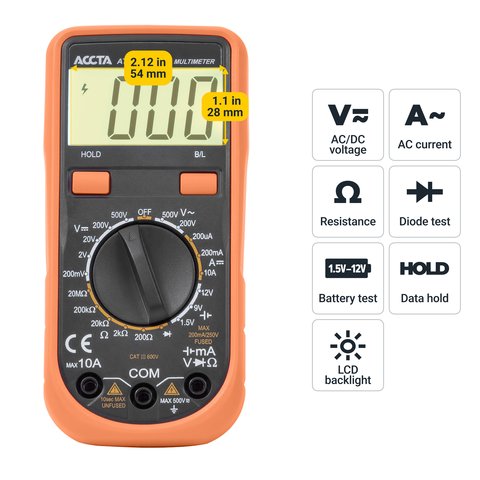

Features

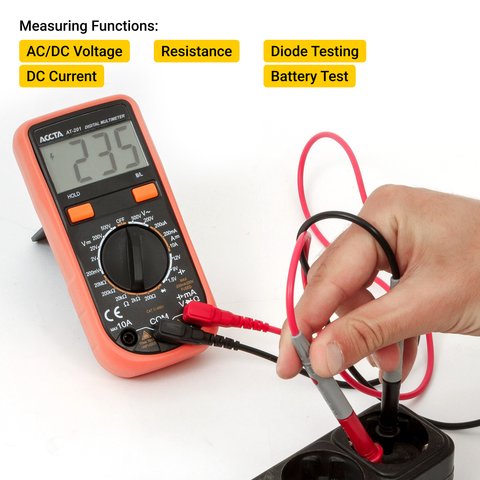

- Functions:
- DC voltage;
- AC voltage;
- DC current;
- resistance;
- diode testing;
- battery testing.

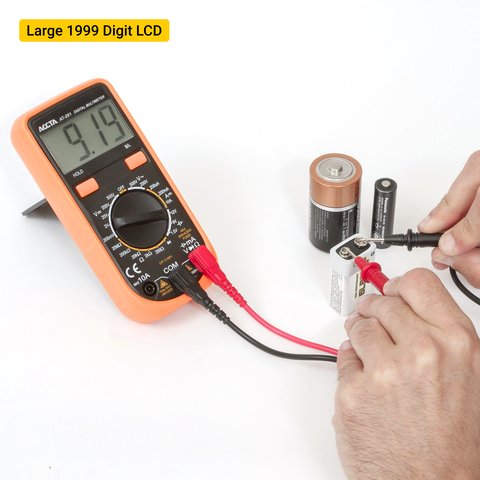

- Large 1999 count LCD.

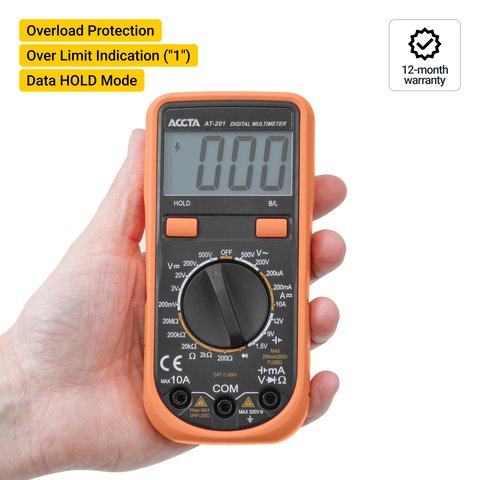

- Overload protection.
- Over limit indication ("1").
- LCD backlight.
- Data hold.

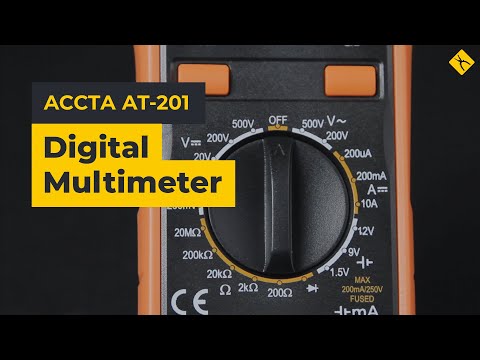

Video
You'll find even more video reviews in the Video tab. Go and check it out!
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 200 mV / 2 V / 20 V / 200 V | ±(0,5% + 2) |
500 V | ±(0,8% + 2) | |
AC Voltage | 200 V | ±(1,2% + 10) |
500 V | ||
DC Current | 200 µA | ±(1,0% + 2) |
200 mA | ±(1,2% + 2) | |
10 A | ±(2,0% + 5) | |
Resistance | 200 Ω | ±(0,8% + 5) |
2 kΩ / 20 kΩ / 200 kΩ | ±(0,8% + 2) | |
20 MΩ | ±(1,0% + 5) | |
General Specifications | ||
Power | 9V NEDA1604/6F22/006P battery × 1 pc. | |
Sampling rate | 3 times/s | |
Working temperature | 0..40°C at humidity no more than 80% | |
Display | max. 1999 digit, LCD | |

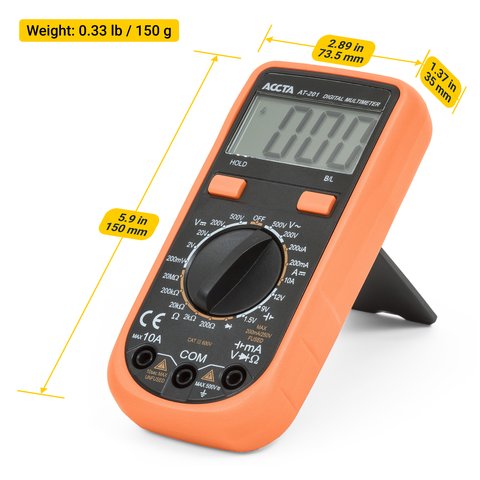

Dimensions | 150 × 73.5 × 35 mm | |
Weight | 156 g (with a battery) |

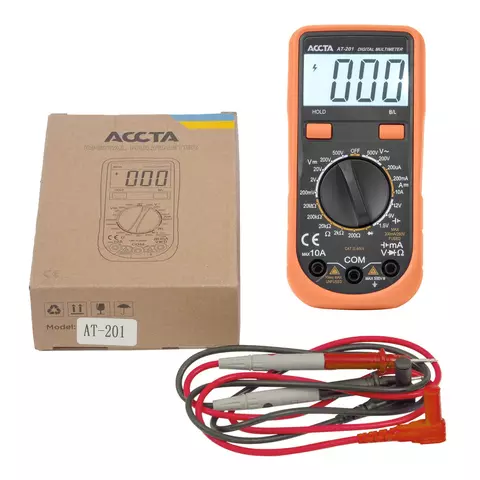

Package Contents
- Digital Multimeter Accta AT-201 — 1 pc.

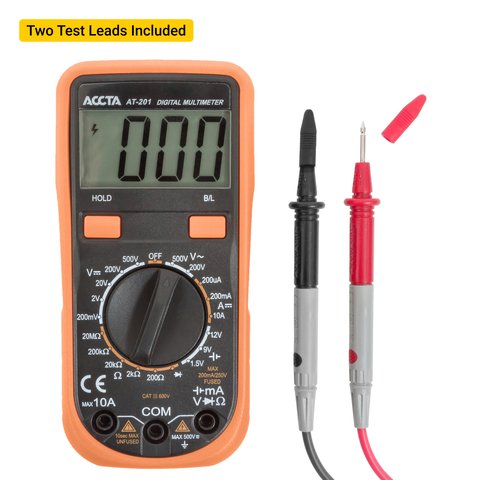

- Test Leads — 1 set.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Multimeter type:
- Digital
Multimeter range selection:
- Manual range
Multimeter digit capacity:
- 1999
Multimeter DC voltage:
- Up to 500 V
Multimeter AC voltage:
- Up to 500 V
Multimeter resistance:
- Up to 20 MOhm
Multimeter DC:
- Up to 10 A
Multimeter AC:
- Does not measure the AC
Multimeter capacitance:
- Does not measure the capacitance
Multimeter frequency:
- Does not measure the frequency
Multimeter inductance:
- No
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter duty cycle:
- No
Multimeter true RMS:
- No
Multimeter backlight:
- Yes
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- No
Multimeter continuity test:
- No
Multimeter NCV:
- No
Multimeter battery testing:
- Yes
