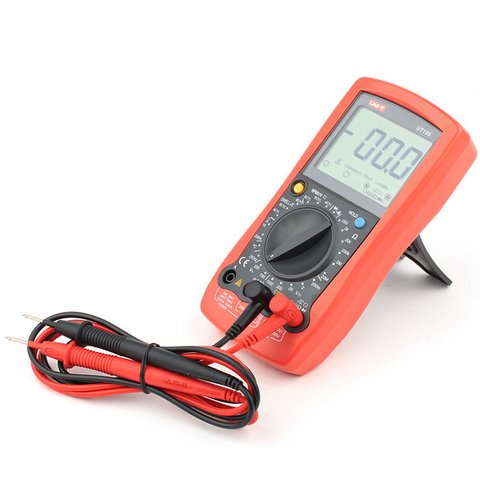

Digital Automotive Multimeter UNI-T UT106

This digital automotive multimeter measures DC current, AC/DC voltage, resistance, frequency, temperature, tach and dwell, and tests continuity and diodes.

Please note that the standard temperature probe from the multimeter package contents allows measuring temperature up to 300 ºC. In case you require measuring temperatures above that value, please, buy Uni-T UT-T03 Temperature Probe.

Features

• Functions:
  • DC current
  • AC/DC voltage
  • resistance
  • frequency
  • temperature
• continuity test (with buzzer)
• diode test
• tach (rotation speed)
• dwell
• Manual ranging
• Fused 10A range
• Data Hold function
• Low battery indication

Video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Package Contents

• Multimeter UT106
• Test lead
• Point contact temperature probe
• User manual

Optional Accessories

• Temperature Probe UNI-T UT-T03

Multimeter type:

• Digital

• Automotive

Multimeter range selection:

• Manual range

Multimeter digit capacity:

• 1999

Multimeter DC voltage:

• Up to 1000 V

Multimeter AC voltage:

• Up to 750 V

Multimeter resistance:

• Up to 20 MOhm

Multimeter frequency:

• Up to 2 kHz

Multimeter DC:

• Up to 10 A

Multimeter AC:

• Does not measure the AC

Multimeter capacitance:

• Does not measure the capacitance

Multimeter inductance:

• No

Multimeter temperature:

• Yes

Multimeter power:

• No

Multimeter duty cycle:

• No

Multimeter true RMS:

• No

Multimeter backlight:

• No

Multimeter PC connection:

• No connection to PC

Multimeter diode test:

• Yes

Multimeter analog bar graph:

• No

Multimeter transistor check:

• No

Multimeter continuity test:

• Yes

Multimeter NCV:

• No

Multimeter battery testing:

• No
