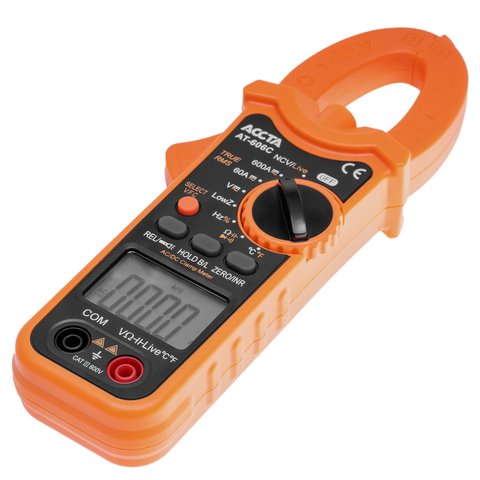

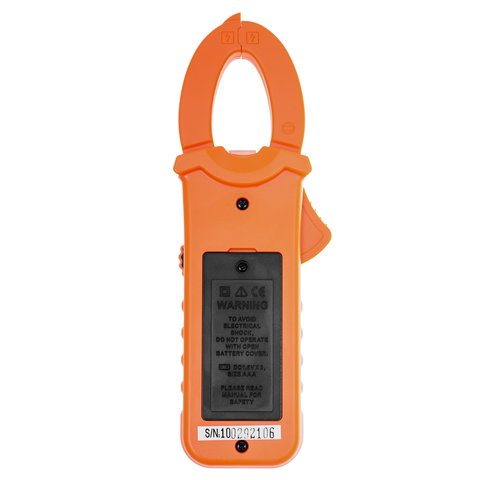

Digital Clamp Meter Accta AT-606C
Información general
Accta AT-606C is a digital True RMS clamp meter designed to measure DC/AC voltage up to 600 V, AC/DC current up to 600 A, resistance up to 60 MΩ, capacitance up to 6 mF, frequency up to 10 MHz and temperature in the range from -20°C up to 1000°C. Besides, this clamp meter is equipped with an inrush current measurement function and a voltage-to-frequency converter (VFC).
This tool is equipped with a low resistance voltage measurement function. This feature makes it suitable for testing sensitive electronic control circuits that may also contain ghost voltages. Additionally, this function provides a more reliable and accurate voltage detection within the circuit.
The LIVE function designed to identify live and neutral wires. To use it, take the red measuring probe and insert it into the socket. When the probe detects a strong AC signal, the display will show "LIVE" and the buzzer will emit a short beep. The NCV function is useful for safe non-contact voltage detection. When a weak voltage is detected, the device emits a slow beep, and when a strong voltage is detected, you hear a rapid beep.
The jaws of the clamp meter are illuminated by a built-in flashlight, making the tool suitable for use in poorly lit spaces. The maximum opening of the jaws is 35 mm and the maximum diameter is 25 mm. Accta AT-606A has a 5999-digit backlit LCD that shows measurement results clearly.
Features
- True RMS AC voltage and current measurement.
- Measurement functions:
- AC/DC voltage;
- LoZ ACV;
- AC/DC current;
- resistance;
- capacitance;
- frequency;
- inrush current;
- diode testing;
- voltage-to-frequency converter (VFC);
- LIVE function for distinguishing between live and neutral wires;
- continuity testing;
- non-contact voltage detection (NCV).
- 5999-digit LCD with backlight.
- The maximum jaw opening is 35 mm, the maximum diameter is 25 mm.
- Data hold function.
- Built-in flashlight.
- Low battery indication.
- MAX/MIN mode (registration of maximum and minimum measurement results).
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 600 mV/6 V/60 V | ±(0.5%+7) |
| 600 V | ±(1.0%+ 20) | |
| AC Voltage | 6 V/60 V | ±(0.8%+ 10) |
| 600 V | ±(1.2%+ 25) | |
| LoZ ACV | 6 V/60 V | ±(0.8%+ 10) |
| 300 V | ±(1.0%+12) | |
| AC Current | 60 A/600 A | ±(4.0%+ 10) |
| DC Current | 60 A/600 A | ±(4.0%+ 10) |
| Resistance | 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ | ±(1.0%+ 5) |
| 20 MΩ | ±(1.5%+15) | |
| 60 MΩ | ±(2.5%+20) | |
| Capacitance | 6 nF | ±(5.0%+40) |
| 60 nF/600 nF/6 μF | ±(5.0%+ 10) | |
| 60 μF/600 μF/6 mF | ||
| Frequency | 10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz | ±(0.3%+3) |
| Temperature | -20℃~1000℃ / -4-1832℉ | |
| General Specifications | ||
| Display count | 5999 | |
| Display type | LCD | |
| Working temperature and humidity | 0-40 ℃, <75% | |
| Storage temperature and humidity | -10~50℃, <80% | |
| Auto power off | after about 15 minutes of inactivity | |
| Over-range display | the display shows "OL" | |
| Max. jaw opening | 35 mm | |
| Input resistance | 10 MΩ | |
| Sampling rate | 3 times/s | |
| Power | AAA battery × 2 pcs. | |
| Dimensions | 207 mm × 72 mm × 39 mm | |
| Weight | approx. 236 g | |

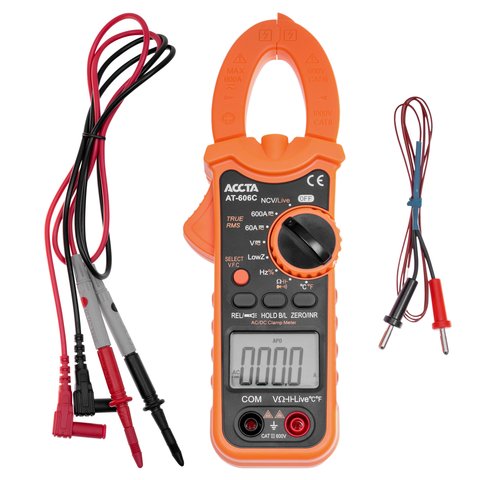

Package Contents
- Digital Clamp Meter Accta AT-606C — 1 pc.
- Test Leads — 1 set
- User Manual — 1 pc.
Capacidad de dígitos pinza amperimétrica:
- 5999
Tipo pinza amperimétrica:
- Para AC/DC
- Para medir corriente de arranque
Diámetro de mordazas pinza amperimétrica:
- Diámetro 35 mm
Voltaje DC pinza amperimétrica:
- Hasta 600 V
Voltaje AC pinza amperimétrica:
- Hasta 600 V
Resistencia pinza amperimétrica:
- Hasta 60 MOhm
Capacitancia pinza amperimétrica:
- Hasta 6000 μF
Frecuencia pinza amperimétrica:
- Hasta 10 MHz
Temperatura pinza amperimétrica:
- Sí
Potencia pinza amperimétrica:
- No
Ciclo de trabajo pinza amperimétrica:
- No
True RMS pinza amperimétrica:
- Sí
Iluminación pinza amperimétrica:
- Sí
Conexión de PC pinza amperimétrica:
- Sin necesidad de PC
Chequeo de diodos pinza amperimétrica:
- Sí
Datos en forma de barras analógicas pinza amperimétrica:
- No
Chequeo de continuidad de circuitos pinza amperimétrica:
- Sí
DC pinza amperimétrica:
- Hasta 600 A
AC pinza amperimétrica:
- Hasta 600 A
Voltaje de 3 fases pinza amperimétrica:
- No
Corriente de 3 fases pinza amperimétrica:
- No
NCV pinza amperimétrica:
- Si
