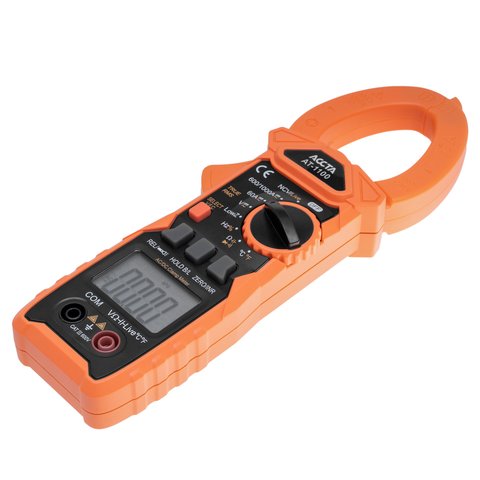

Digital Clamp Meter Accta AT-1100
Accta AT-1100 is a digital clamp meter used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, inrush current, LoZ ACV, temperature, continuity, and also for non-contact voltage detection and living wire detecting. Max. jaw opening is 40 mm. The clamp meter is equipped with a large, 5999 count LCD.
Additionally, Accta AT-1100 digital clamp meter measures True RMS AC voltage and current. It is equipped with many additional features to ensure safe, fast, and accurate measuring (overload protection, low battery indication, flashlight, data hold function, etc.).
Features
- True RMS AC voltage and current measurement.
- Measurement functions:
- AC/DC voltage;
- AC/DC current;
- resistance;
- capacitance;
- frequency;
- temperature;
- LoZ ACV;
- living wire detecting;
- inrush current;
- continuity buzzer;
- función de LIVE para medir alambre vivo;
- non-contact voltage detection (NCV).
- Data hold function ("HOLD" button).
- Low battery indication.
- Automatic power off after 15 minutes of inactivity.

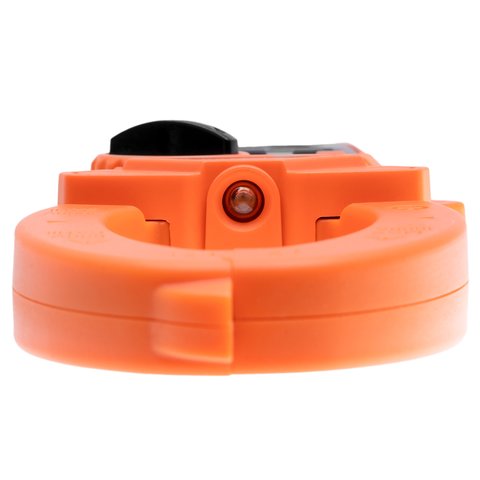

- Flashlight.
- Over range indication: "OL" is shown on the LCD.
- VFC, low pass filter.
- 5999 count LCD.
- Max. jaw opening: 40 mm.
- Linterna integrada.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 600 mV/6 V/60 V/600 V | ±(0.5%+7) |
| 1000 V | ±(1.0%+6) | |
| AC Voltage | 6 V/60 V | ±(1.0%+10) |
| 600 V/750 V | ±(1.0%+12) | |
| Resistance | 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ | ±(1.0%+5) |
| 20 MΩ | ±(1.5%+15) | |
| 60 MΩ | ±(2.5%+20) | |
| LoZ ACV | 6 V/60 V | ±(1.0%+10) |
| 300V | ±(1.0%+12) | |
| DC Current | 60 A/600 A/1000 A | ±(4.0%+10) |
| AC Current | 60 A/600 A/1000 A | ±(4.0%+10) |
| Frequency | 10 Hz~10 MHz | ±(0.3%+3) |
| Capacitance | 1 nF | ±(5.0%+40) |
| 10 nF/100 nF/1 μF /10 μF/100 μF/1 mF/10 mF | ±(5.0%+10) | |
| Temperature | -20℃~1000℃ (-4-1832)℉ | ±(2.0%+5) |
| General Specifications | ||
| Display | LCD, 5999 count, sampling rate: 3 times/s | |
| Jaw opening | 40 mm | |
| Auto power off | about 15 minutes | |
| Polarity indicate | cathode auto display | |
| Overload indicate | OL indicating on the LCD | |
| Low battery display | indicating on the LCD | |
| Operation temperature | 0℃~40℃, less than 80%RH | |
| Storage temperature | -10℃~50℃, less than 80%RH | |

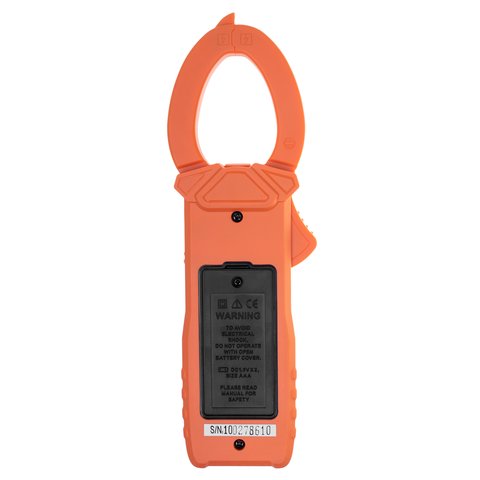

| Power | AAA battery 1.5V × 2 pcs. | |
| Dimensions | 230 mm × 75 mm × 40 mm | |
| Weight | about 313 g | |

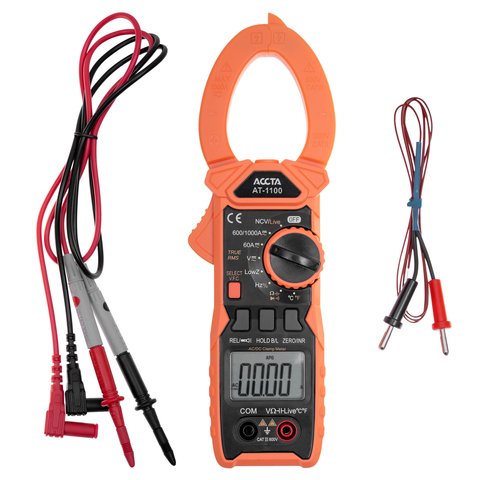

Package Contents
- Digital Clamp Meter Accta AT-1100 — 1 pc.
- Test Leads — 1 set
- User Manual — 1 pc.
Capacidad de dígitos pinza amperimétrica:
- 5999
Tipo pinza amperimétrica:
- Para AC/DC
Diámetro de mordazas pinza amperimétrica:
- Diámetro 40 mm
Voltaje DC pinza amperimétrica:
- Hasta 1000 V
Voltaje AC pinza amperimétrica:
- Hasta 750 V
Resistencia pinza amperimétrica:
- Hasta 60 MOhm
Frecuencia pinza amperimétrica:
- Hasta 10 MHz
Temperatura pinza amperimétrica:
- No
Potencia pinza amperimétrica:
- No
Ciclo de trabajo pinza amperimétrica:
- Sí
True RMS pinza amperimétrica:
- Sí
Iluminación pinza amperimétrica:
- Sí
Conexión de PC pinza amperimétrica:
- Sin necesidad de PC
Chequeo de diodos pinza amperimétrica:
- Sí
Datos en forma de barras analógicas pinza amperimétrica:
- No
Chequeo de continuidad de circuitos pinza amperimétrica:
- Sí
Capacitancia pinza amperimétrica:
- Hasta 10 000 μF
DC pinza amperimétrica:
- Hasta 1000 A
AC pinza amperimétrica:
- Hasta 1000 A
Voltaje de 3 fases pinza amperimétrica:
- No
Corriente de 3 fases pinza amperimétrica:
- No
NCV pinza amperimétrica:
- Si
