Wire Tracer UNI-T UT683KIT
id: 898472
id: 898472 0.9 kg Warranty: 24 months
The wire tracker which consists of the transmitter and receiver. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.
Add to wishlist
Compare
Compare
Buy wholesale and save

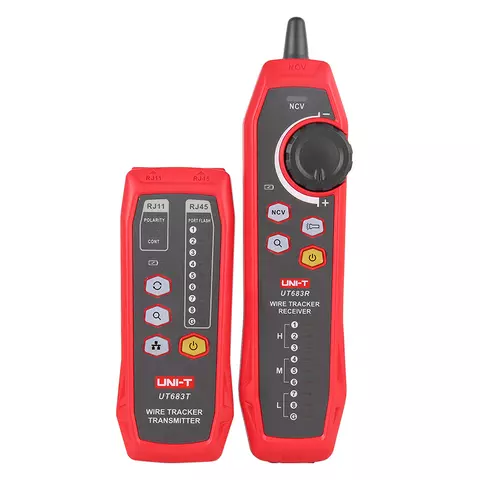

UNI-T UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.
The tester is used for the installation and repair of telecommunication and computer networks, data transmission devices, cable TV, etc.
Features
- Equipped with RJ45 interface for Ethernet cable and RJ11 interface for telephone line testing
- Low battery indication.
- Strong anti-interference ability.
- Non-contact voltage detection (NCV mode).
- Built-in flashlight.
- Headset jack.
Technical Specifications
Transmitter | |
---|---|
Line alignment | + |
Open-short test / polarity test | + |
Operating time | >8 hours |
Receiver | |
Wire tracking | RJ11 >3000 m; RJ45 >100 m |
NCV function | + |
Headset jack | 3.5 mm |
Low battery indication | + |
Operating time | >5 hours |
General Specifications | |
Power | 1050 mAh rechargeable lithium battery |
Dimensions | transmitter: 130 mm × 51 mm × 28 mm |
receiver: 197 mm × 48 mm × 34 mm | |
Weight | transmitter: around 95 g |
receiver: around 127 g |
User Manual
Download UNI-T UT683KIT user manual.
Package Contents
- Transmitter — 1 pc.
- Receiver — 1 pc.
- Micro USB charging cable — 1 pc.
- RJ11 adapter cable — 1 pc.
- RJ11 alligator clip adapter cable — 1 pc.
- RJ45 adapter cable — 1 pc.
- User manual — 1 pc.
- Pouch — 1 pc.
Cable tester cable length measurement:
- Not available
Cable tester USB cable testing:
- Not available
Cable tester twisted pair cable testing:
- Available
Cable tester coaxial cable testing:
- Not available
Cable tester locator function:
- Available
