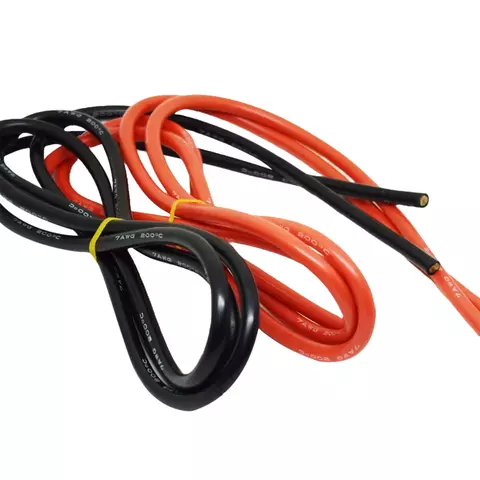

Wire In Silicone Insulation 7AWG, (12 mm², 1 m, red, UL3135)

id: 917630
Wire In Silicone Insulation 7AWG, (12 mm², 1 m, red, UL3135)
General information
Warranty
Price coming soon

General information

Price coming soon
Price coming soon
Impossible to estimate the shipping cost

The wire in silicone insulationis an ideal solution for working in limited space due to its flexibility. The silicone insulation of the wire provides plasticity and withstands sudden temperature changes, making it the best choice for electrical tasks. It is suitable for a wide range of applications, including electrical engineering work and laboratory projects, as well as home appliance repair and maintenance of the power network at home and in the workplace.

Features

  • Flexibility makes it easy to lay wires in hard-to-reach places.
  • Usage at very high and low temperatures.
  • Resistance to oxidation thanks to the base of tinned copper with an antioxidant coating.
  • Waterproof and short circuit protection.

Technical Specifications

Manufacturer Minzan
Conductor material tinned copper
Insulation material silicone
Core thickness 0.08 mm
Core number 2400
Conductor cross-section 12 mm²
Conductor diameter 4.53 mm
Maximum resistance 1.769 Ohm/km (at t = 20 °C)
Maximum current 240 A
Maximum voltage 600 V
Temperature range -60 °C ~ +200 °C
Size 7 AWG
Color red

Package Contents

  • Silicone wire (red) — 1 meter
{{token,423,name}}

Wire in silicone insulation color:

  • Red

Wire in silicone insulation length:

  • 1 m

Wire in silicone insulation AWG GB wire gauge:

  • 7AWG GB

Wire in silicone insulation Cross-section:

  • 12 mm²
