VSWR Bridge SIGLENT RBSSA3X25 + SIGLENT Refl-SSA3000X Software Licence
id: 894375
id: 894375 0.045 kg Warranty: 24 months
Kit for measuring VSWR with the SIGLENT SSA3000X series of spectrum analyzers. Includes SIGLENT Refl-SSA3000X software licence.
Add to wishlist
Compare
Compare
Buy wholesale and save
Overview
Related products
Warranty
Overview

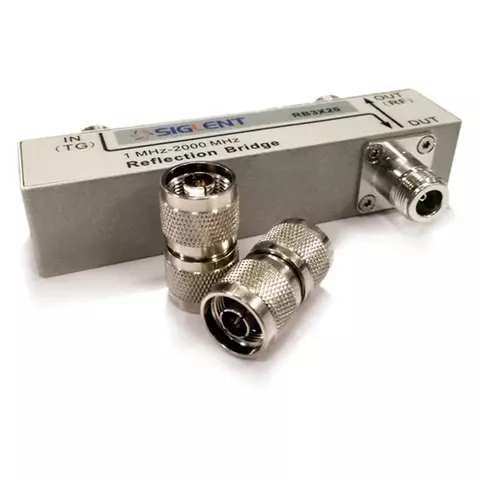

SIGLENT RBSSA3X25 is used in connection with SIGLENT’s SSA3000X series of spectrum analyzers to measure S11-related parameters such as return loss, reflection coefficient and VSWR.
The reflection bridge has 3 ports:
- signal input terminal IN(TG);
- signal output terminal OUT(RF);
- the port that is connected to the Device Under Test DUT.
Features
- Includes SIGLENT Refl-SSA3000X reflection/VSWR activation license.
Technical Specifications
| Frequency range | 1 MHz - 2000 MHz | |
| Connector type | N (Female) | |
| Impedance | 50 Ω | |
| Insertion loss | IN to DUT: 5 dB (typical) | |
| Directivity | 1 MHz - 2.0 GHz | 2.0 GHz - 2.5 GHz |
| 20 dB (typical) | 15 dB (typical) | |
| Dimensions | 136 ×75 × 30 mm | |
| Weight | 0.5 kg | |
User Manual
Download SIGLENT RBSSA3X25 user manual.
Package Contents
- VSWR Bridge SIGLENT RBSSA3X25 — 1 pc.
Compatibility
VSWR Bridge is compatible with the following models of Spectrum Analyzers:
- SIGLENT SSA3021X
- SIGLENT SSA3032X
VSWR bridge frequency range:
- 1 MHz ~ 2.5 GHz
