VSWR Bridge SIGLENT RBSSA3X20
id: 883211
VSWR Bridge SIGLENT RBSSA3X20
General information
Related products
Warranty
Discontinued
General information
0.3 kg Warranty: 24 months
Reflect measurement kit for Siglent SSA3000X spectrum analyzers.
Discontinued

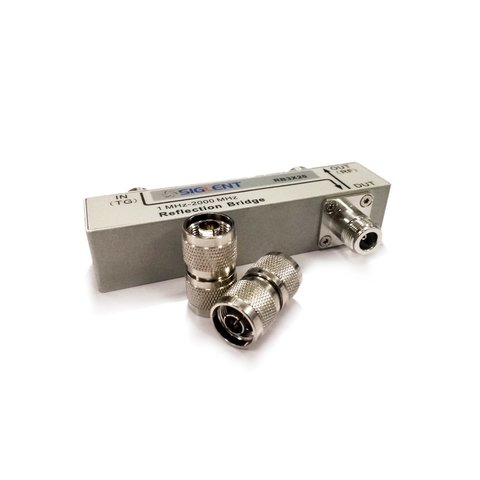

SIGLENT RBSSA3X20 is used in connection with SIGLENT’s SSA3000X series of spectrum analyzers to measure S11-related parameters such as return loss, reflection coefficient and VSWR. The RBSSA3X20 also provide 2 N(M)-N(M) adapters to facilitate connection with SSA3000X’s ports.
The reflection bridge has 3 ports:
- Signal input terminal
- Signal output terminal
- The port thatis connected to the Device Under Test
Technical Specifications
| Frequency range |
1 MHz - 2000 MHz |
| Connector type | N (Female) |
| Impedance | 50 Ω |
| Insertion loss | 5 dB |
| Directivity | 20 dB |
| Dimensions | 136 × 75 × 30 mm |
| Weight | 0,5 kg |
User Manual
Download SIGLENT RBSSA3X20 User Manual.
Package Contents
- Reflect Measurement Kit SIGLENT RBSSA3X20 — 1 pc.
- N(m)-N(m) Adapters — 2 pcs.
VSWR Bridge is compatible with the following models of Spectrum Analyzers:
- SIGLENT SSA3021X
- SIGLENT SSA3032X
