UNI-T UT285C Three-Phase Power Quality Analyzer
id: 902484
UNI-T UT285C Three-Phase Power Quality Analyzer
General information
Warranty
Price coming soon
General information
15 kg Warranty: 12 months
A three phase power quality analyzer with 4-channel voltage/current real-time waveform display and True RMS values of voltages and currents
Price coming soon

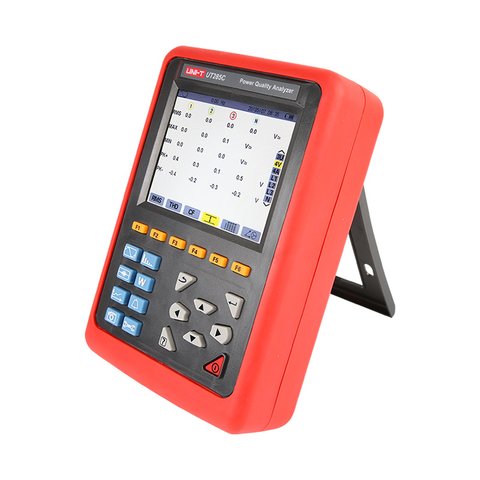

UNI-T UT285C is an advanced three-phase power quality analyzer, combining multifunctionality with an intuitive interface. Its features include simultaneous measurement of four-channel current and voltage, assessment of peak values, imbalance factors, and various power parameters. The device displays real-time waveforms, harmonic ratio bar charts, and dynamically captures instantaneous changes. With a robust design and alarm generation capabilities, it offers comprehensive power quality analysis in a compact package.
Features
- Real-time waveform display (4 channels voltage/current);
- True RMS values of voltages and currents;
- DC components of voltages;
- Peak current and voltage values;
- Minimum and maximum half-cycle RMS current and voltage values;
- Measurement of each harmonic up to order 50;
- Bar charts show harmonic ratios of current and voltage of each phase;
- Total harmonic distortion (THD);
- Active, reactive, apparent power, by phase and cumulative;
- Transformer K factor, power factors (PF) and displacement factors (DPF or Cosφ);
- Short-term voltage flicker (PST);
- Three phase unbalance (current and voltage);
- USB interface/PC software
Technical Specifications
| True RMS phase-to-neutral voltage | 1.0 ~ 1000 V | ±(0.5%+5) |
| True RMS phase-to phase voltage | 1.0 ~ 2000 V | ±(0.5%+5) |
| DC voltage | 1.0 ~ 1000 V | ±(1.0%+5) |
| True RMS current | 10 mA ~ 1000 A | ±(0.5%+5) |
| Peak of phase-to-neutral voltage | 1.0 ~ 1414 V | ±(1.0%+5) |
| Peak of phase-to-phase voltage | 1.0 ~ 2828 V | ±(1.0%+5) |
| Current peak | 10 mA ~ 1414 A | ±(1.0%+5) |
| Active power | 0.000 W ~ 9999.9 kW | ±(1%+3) |
| Cosφ≥0.8 | ||
| ±(1.5%+10) | ||
| 0.2≤Cosφ<0.8 | ||
| Reactive power, inductive/capacitive | 0.000 RVA ~ 9999.9 kVAR | ±(1%+3) |
| Sinφ≥0.5 | ||
| ±(1.5%+10) | ||
| 0.2≤Sinφ<0.5 | ||
| Apparent power | 0.000 VA ~ 9999.9 kVA | ±(1%+3) |
| Power factor | -1.000 ~ 1.000 | ±(1.5%+3) |
| Cosφ≥0.5 | ||
| ±(1.5%+10) | ||
| 0.2≤Cosφ<0.5 | ||
| Active energy | 0.000 Wh ~ 9999.9 MWh | ±(1%+3) |
| Cosφ≥0.8 | ||
| ±(1.5%+10) | ||
| 0.2≤Cosφ<0.8 | ||
| Reactive energy, inductive/capacitive | 0.000 VARh ~ 9999.9 MVARh | ±(1%+3) |
| Sinφ≥0.5 | ||
| ±(1.5%+10) | ||
| 0.2≤Sinφ<0.5 | ||
| Apparent energy | 0.000 VAh ~ 9999.9 MVAh | ±(1%+3) |
| Phase angle | -179° ~ 180° | ±(2°) |
| Total harmonic ratio | 0 ~ 99.9% | ±(1%+5) |
| Distortion factor | 0 ~ 99.9% | ±(1%+10) |
| Transformer K factor | 1.00 ~ 99.99 | ±(5%) |
| 3 phases unbalance | 0 ~ 100% | ±(1%) |
| Parameters of electricity | W, VA, Var, PF, DPF, Cosφ, Tanφ | |
| Energy parameters | Wh, Varh, Vah | |
| Total harmonic distortion | Order 0 ~ 50, each phase | |
| Number of transient records | 150 sets | |
| Alarm | 40 different types of parameter selections, 12,800 sets alarm logs | |
| Phasor diagram display | Auto | |
| Power source | 9.6 V rechargeable lithium-ion battery | |
| Size | 240 × 170 × 68 mm | |
| Weight | 6.4 kg | |
| Color | Red/Grey | |
User Manual
Download UNI-T UT285C Three-Phase Power Quality Analyzer User Manual.
Package Contents

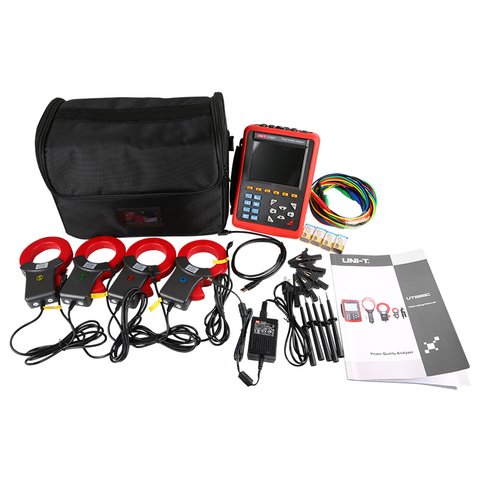

- UNI-T UT285C three-phase power quality analyzer — 1 pc.
- Power adapter — 1 pc.
- Test leads — 5 pcs.
- Alligator clip — 4 pcs.
- 1000 A current clamp — 4 pcs.
- Carry cloth bag — 1 pc.
