Tablet Digital Oscilloscope Micsig TO102
id: 848023
Tablet Digital Oscilloscope Micsig TO102
General information
Video
Warranty
USD 880.00
General information
Video
4 kg 110, 220 V Warranty: 12 months
2-channel handheld digital oscilloscope – tBook Series. 100 MHz bandwidth, 1 GSa/s real time sampling rate, 18M/9M memory depth.
USD 880.00

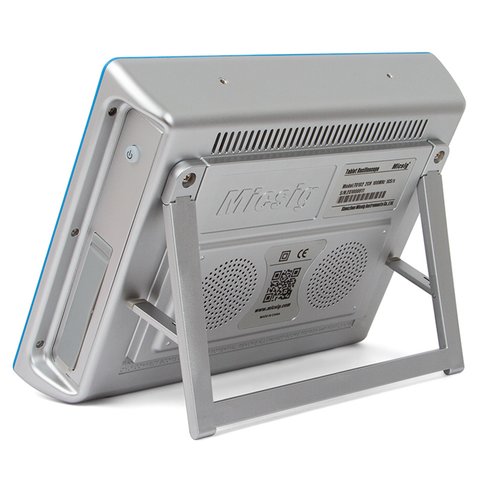

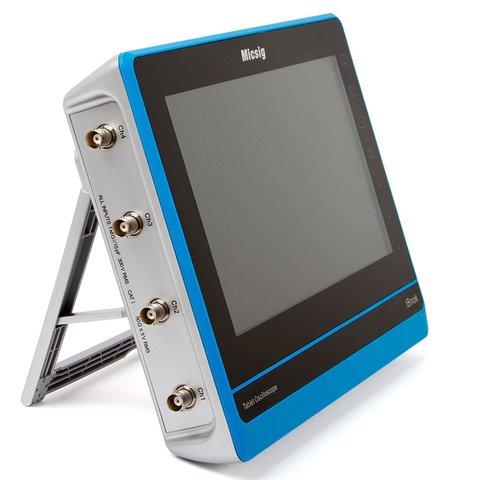

Micsig TO102 tBook Series Digital Oscilloscope is a dual channel handheld digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real time sampling rate, 18M/9M memory depth. Operation control is conducted with the help of 10.1 inch TFT capacitive touch screen.
Features
- Control mode: touch screen
- 18M/9M memory depth
- 1024*600 screen resolution
- 31 auto measurements
- Cursor measurements
- Android OS
- Interfaces: USB, Wi-Fi
Video
Technical Specifications
| Channels | 2 |
| Bandwidth | 100 MHz |
| Rise Time | ≤3.5 ns |
| Real time sampling rate | single channel: 1 GSa/s dual channels: 500 MSa/s |
| Memory depth | single channel: 18 Mpts dual channels: 9 Mpts |
| Vertical system | |
|---|---|
| Input coupling | DC, AC, GND |
| Input impedance | 1 MΩ ±1% ≈ 15 pF ±3 pF |
| Vertical scale | 2 mV/div ～ 5 V/div |
| Vertical resolution | 8 bits |
| Max. voltage input | 300V CAT Ⅲ |
| Horizontal system | |
| Time base range | 200 ps/div ～ 1000 s/div |
| Timebase accuracy | 20 ppm |
| Display mode | normal, average, pk-pk, envelope |
| Trigger system | |
| Trigger types | edge, pulse, short pulse, logic, serial data (UART, LIN, CAN, SPI, I2C, 1553B, 429) |
| Coupling modes | DC, AC, High-frequency suppression, Low-frequency suppression, Noise suppression |
| Trigger modes | auto, normal, single |
| Trigger source | CH1, CH2 |
| Measurement | |
| Automatic measurements | 31 types |
| Cursor types | horizontal cursor, vertical cursor, cross cursor |
| Storage | |
| Storage types | tablet oscilloscope, USB device, PC |
| File formats | CSV, waveform, jpg |
| Refernce waveforms | ≤4 |
| Waveform settings | 4 sets |
| Math functions | |
| Operator | + , - , × , / |
| FFT window settings | Rectangular, Hamming, Blackman-Harris, Hanning |
| Display Features | |
| Screen | 10.1 inch TFT LCD touch screen |
| Resolution | 1024 × 600 |
| 3D waveform display | supported |
| Grid of waveform display zone | 18 div × 10 div |
| Backlight | 500 (250) |
| Language | Simplified Chinese, English |

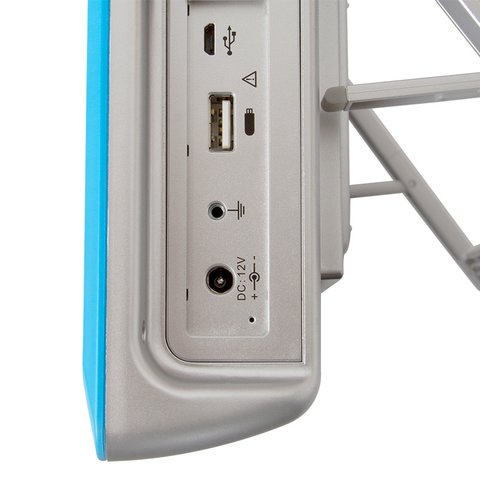

| I/O Port | |
| Mini USB 2.0 | connection to PC |
| USB 2.0 | connection to flash disk, mouse, keyboard, wireless mouse |
| WiFi | supports 802.11 b/g/n, up to 150 Mbps |
| Power Supply | |
| Power adapter | input: 100-240 V AC, 50-60 Hz, 2 A; output: 12 V DC, 5 A |
| Battery (option) | capacity: 7.4 V / 9000 mAh, work time: 4~8 hours |
| Environment | |
| Operation temperature | -20℃ ~ +50℃ |
| Operation humidity | < 95% RH |
| Operating altitude | ＜3000 m |
| Storage altitude | ＜12000 m |
| Mechanical Parameters | |
| Dimensions | 275 × 210 × 60 mm |
| Weight | Oscilloscope: 1770 g (no battery), accessories (standard): 420 g, battery (option): 276 g |
Package Contents
- Micsig TO102 Tablet Digital Oscilloscope — 1 pc.
- Power Adapter — 1 pc.
- Oscilloscope Probes — 1 set
- User Manual — 1 pc.
Digital oscilloscope screen size:
- 10.1" TFT display
Digital oscilloscope number of channels:
- Dual-channel
Digital oscilloscope bandwidth:
- 100 MHz
Digital oscilloscope type:
- Portable
- Touch
Digital oscilloscope sample rate:
- 1 GS/s
Digital oscilloscope storage capacity:
- 18 MB
