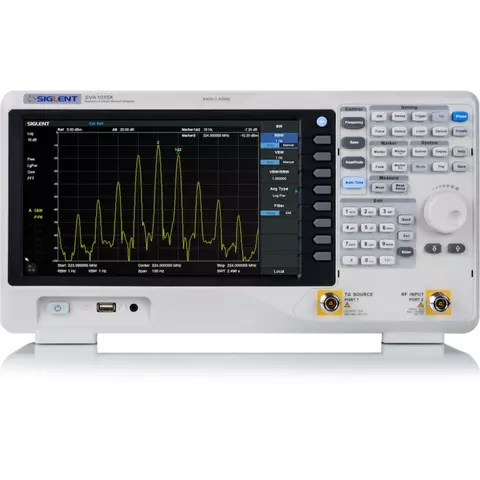

Spectrum Vector Analyzer SIGLENT SVA1015X
SIGLENT SVA1015X is a SVA1000X series spectrum analyzer with a frequency range from 9 kHz up to 1,5 GHz. This device is powerful and reliable, with an user friendly interface and concise style of data display. SIGLENT SVA1015X provides precise automatic RF features measurement. Spectrum analyzer is characterized by plenty of optional functions including a vector network analyzer, a Frequency Domain Reflectometer based distance-to-fault locator, and a modulation analyser.
Applicable to research and development, education, production, maintenance and other related fields, meets a wider range of application requirements.
Features
- All-Digital IF Technology
- Frequency Range from 9 kHz up to 1.5 GHz
- -156 dBm/Hz Displayed Average Noise Level (Typ.)
- -99 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
- Total Amplitude Precision < 1.2 dB (Typ.)
- 1 Hz Minimum Resolution Bandwidth (RBW)
- Preamplifier Standard
- Vector Network Analyzer function
- 1.5 GHz Tracking Generator
- Optional functions:
- Distance To Fault
- Modulation Analysis
- EMI Pre-compliance Test Kit
- 10.1" (1024×600) Multi-Touch Screen
- Web Browser Remote Control
Technical Specifications
| Frequency Range | 9 kHz ~ 1,5 GHz |
| Resolution Bandwidth (RBW) | 1 Hz ~ 1 MHz |
| Displayed Average Noise Level | -156 dBm/Hz |
| Phase Noise | <-99 dBc/Hz @1 GHz, 10 kHz |
| Total Amplitude Precision | ≤1.2 dB |
| Max. Input Voltage | 50 V |
| Display | TFT Color 1024×600, 10.1" |
| Interfaces | USB, USB-Host, LAN |
| Dimensions | 393 × 207 × 116,5 mm |
| Weight | 4,4 kg |
Data Sheet
Download SIGLENT SVA1015X Data Sheet.
User Manual
Download SIGLENT SVA1015X User Manual.
Package Contents
- Spectrum Vector Analyzer SIGLENT SVA1015X — 1 pc.
- USB Cable — 1 pc.
- Power Cord — 1 pc.
Spectrum analyzer Max. frequency:
- 1.5 GHz
Spectrum analyzer additional features:
- With tracking generator
