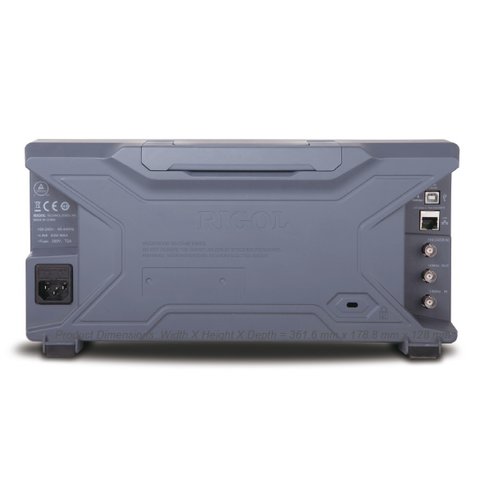

Spectrum Analyzer RIGOL DSA832E-TG
id: 885558
Spectrum Analyzer RIGOL DSA832E-TG
General information
Video
Warranty
USD 2599.00
General information
Video
8 kg Warranty: 36 months
Compact and lightweight spectrum analyzer for portable applications. Digital IF technology, tracking generator option. Frequency range: 9 kHz to 3.2 GHz.
USD 2599.00
Buy wholesale and save
RIGOL DSA832E-TG digital spectrum analyzer is the part of DSA800 series of spectrum analyzers which are small, lightweight and cost-effective. RIGOL DSA832E-TG is equipped with easy-to-operate numeric keypad, high-resolution color LCD display and various remote communication interfaces. RIGOL DSA800 series of spectrum analyzers, and DSA832E-TG model in particular can be widely used in various fields, such as education, company research and development as well as industrial manufacture.
Features
- Tracking generator option.
- All-digital IF technology ensures reliability and premium performance in most demanding RF applications.
- Frequency range from 9 kHz tp 3.2 GHz.
- Displayed average noise level: -158 dBm/Hz.
- Offset phase noise: -90 dBc/Hz.
- Total amplitude accuracy: < 0,3 dB.
- Minimum resolution bandwidth (RBW): 10 Hz.
- Standard preamplifier up to 3.2 GHz.
- 8-inch TFT LCD display (800×480).
Technical Specifications
| Frequency Range | from 9 kHz to 3,2 GHz |
| Resolution Bandwidth (RBW) | 10 Hz |
| Displayed Average Noise Level | -158 dBm/Hz |
| Phase Noise | -100 dBc/Hz (typ.) |
| Amplitude Precision | < 0.3 dB |
| Max. Input Voltage | from 100 V to 240 V |
| Input Impedance | 50 Ω nominal |
| Display | 8-inch, TFT LCD (800×480) |
| Interfaces | USB, USB-Host, LAN, IEC/IEEE (GPIB) |
| Dimensions | 361.6 × 178.8 × 128 mm |
| Weight | 5.15 kg |
User Manual
Download RIGOL DSA832E-TG Manual.
Package Contents
- Spectrum Analyzer RIGOL DSA832E-TG — 1 pc.
- Power Cord — 1 pc.
- Standard preamplifier up to 3.2 GHz — 1 pc.
- User Manual — 1 pc.
Spectrum analyzer additional features:
- With tracking generator
Spectrum analyzer Max. frequency:
- 3,2 GHz
