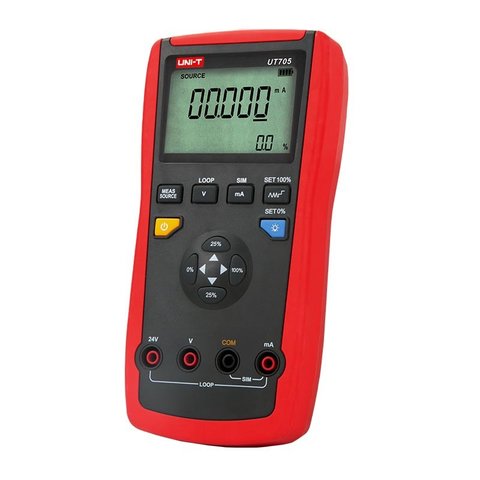

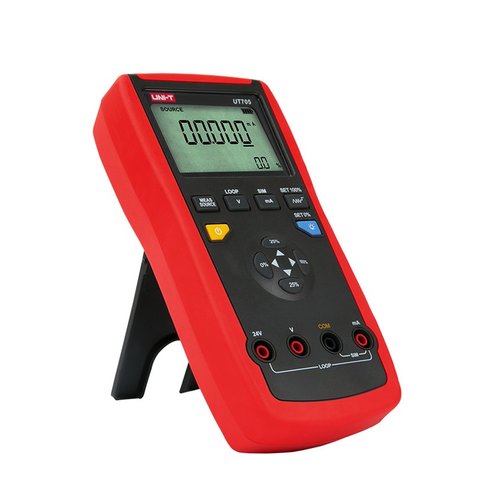

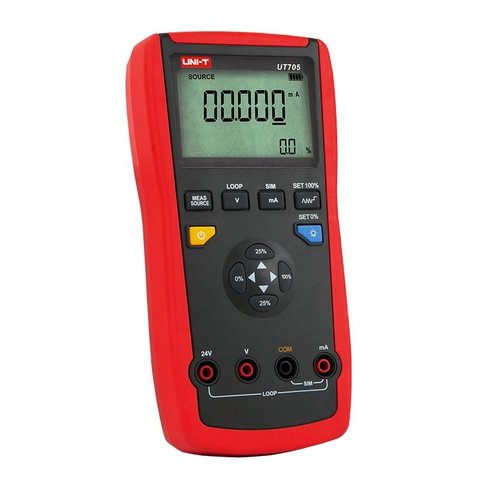

Single Function Loop Calibrator UNI-T UT705
id: 897079
id: 897079 1.2 kg Warranty: 24 months
Device for loop calibration and maintenance, which has DC voltage/current and loop current measurement functions, selectable steps, and ramp output.
Add to wishlist
Compare
Compare
Buy wholesale and save
Overview
Warranty
Overview
UNI-T UT705 is a portable high-performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help user work more efficiently and accurately.
Features
- Up to 0.02% output and measurement accuracy.
- Compact and ergonomic design.
- Auto stepping and ramping output for fast linearity detection.
- Conduct mA measurement while providing loop power to the transmitter.
- Save frequently-used setting for future use.
- Large LCD with adjustable backlight.
Technical Specifications
| DC voltage measurement | 30 V | ±(0.02+2) |
| DC current measurement | 24 mA | ±(0.02+2) |
| Loop current measurement | 24 mA | ±(0.02+2) |
| DC current (source) | 24 mA | ±(0.02+2) |
| DC current (simulate) | 24 mA | ±(0.02+2) |
| Loop power function | Voltage: 24 V Accuracy: 10% |
|
| Ramp functions | Source functions: Voltage, resistance, temperature Ramps: Slow ramp, fast ramp, 25% step-ramp |
|
| Step functions | Source functions: Voltage, resistance, temperature Steps: 25% of range, 100% of range |
|
| General Specifications | ||
|---|---|---|
| Power | 9V battery (6F22) | |
| Display | backlit LCD, 63 mm × 40 mm | |
| Dimensions | 96 mm × 193 mm × 47 mm | |
| Weight | 410 g | |
User Manual
Download UNI-T UT705 user manual.
Package Contents
- Single Function Loop Calibrator UNI-T UT705 — 1 pc.
- Test Leads — 1 pair
- Alligator Clip — 1 pair
- 9V Battery — 1 pc.
- User Manual — 1 pc.
Warranty
ID: 897079
Single Function Loop Calibrator UNI-T UT705
USD 225.00
