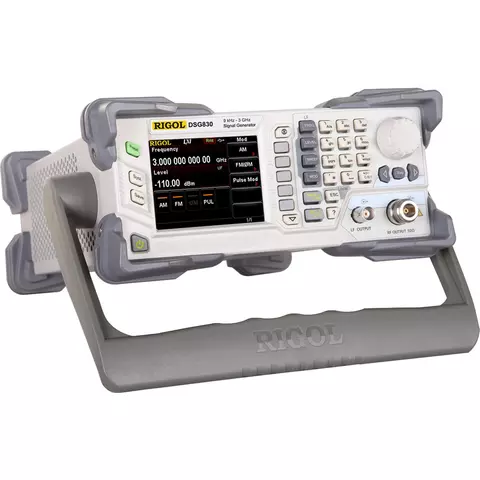

RF Signal Generator RIGOL DSG815
id: 862508
RF Signal Generator RIGOL DSG815
General information
Warranty
USD 2099.00
General information
6 kg 110, 220 V Warranty: 36 months
High-performance RF signal generator which provides standard AM/FM/ØM analog modulation with a maximum frequency 1.5 GHz, and also frequency and level sweep functions.
USD 2099.00
Buy wholesale and save
RIGOL DSG815 offer standard AM/FM/ØM analog modulation with a maximum frequency 1.5 GHz, and also frequency and level sweep functions.
Features
- Maximum frequency – 1.5 GHz
- Amplitude accuracy: < 0.5 dB (typical)
- Output amplitude range: -110 dBm to +13 dBm
- High signal purity, phase noise: < -105 dBc/Hz @ 20 kHz (typical)
- Standard 2 ppm internal clock; 5 ppb high stable clock for option
- Standard AM/FM/ØM modulation
- Standard USB/LAN interfaces.
Technical Specifications
| Frequency | |
|---|---|
| Frequency range | 9 kHz to 1.5 GHz |
| Resolution | 0.01 Hz |
| Frequency switching speed | <10 ms (typ.) |
| Phase offset | Adjustable in 0.01° steps (nom.) |
| SSB phase noise | down to < -105 dBc/Hz |
| Internal Reference Clock | |
| Reference frequency | 10 MHz |
| Temperature stability | in temperature range 0 °C to 50 °C (< 2 ppm) |
| Aging rate | < 1 ppm / year |
| Frequency Sweep | |
| Operating modes | step sweep (equally or logarithmically spaced frequency steps) list sweep (the list of arbitrary frequency steps) |
| Sweep modes | single, continuous |
| Sweep range | full frequency range |
| Sweep shapes | triangle, ramp |
| Step change | linear or logarithmic |
| Dwell time range | 20 ms to 100 s |
| Triggering | auto, trigger key, external, bus (USB, LAN) |
| Output Level | |
| Maximum output level | 9 kHz ≤ f <100 kHz (+5 dBm) 100 kHz ≤ f ≤ 1.5 GHz (+13 dBm) |
| Minimal output level | 9 kHz ≤ f <100 kHz (-110 dBm) 100 kHz ≤ f ≤ 1.5 GHz (-110 dBm) |
| Setting resolution | 0.01 dB |
| General Specifications | |
| Display | 3.5-inch color TFT LCD, 320 × 240 |
| Storage | internal (96 MB) / USB storage device |
| Power Supply | 100 - 240 V, 45 - 440 Hz |
Additional Information
Download RIGOL DSG815 User Guide.
Download RIGOL DSG815 Data Sheet.
Standard Accessories
- RIGOL DSG815 signal generator (1 pc.)
- Power cable (1 pc.)
Function / waveform generator channels:
- Single channel
Function / waveform generator Max. signal frequency:
- 1.5 GHz
