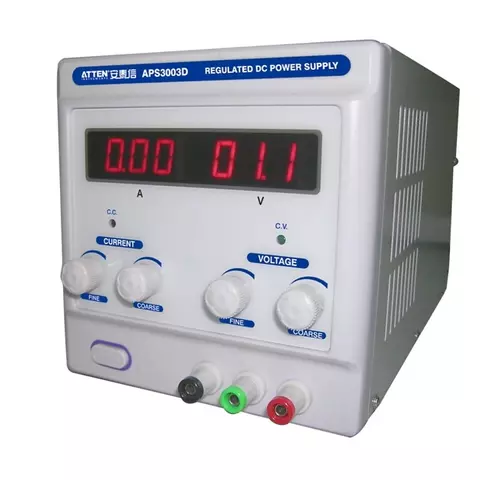

Regulated Power Supply Unit ATTEN APS3003D
id: 843011
Regulated Power Supply Unit ATTEN APS3003D
General information
Warranty
USD 64.00
General information
6 kg 220 V Warranty: 6 months
Constant current (0-3 A) and voltage (0-30 V) supply unit with one adjustable channel.
USD 64.00
Buy wholesale and save
ATTEN APS3003D supplies DC current (0-3 A) and voltage (0-30 V) and is ideal for educational institutions and research labs. ATTEN APS3003D has 1 adjustable channel.
Features
- 1 adjustable channel
- Low ripple and noise level
- Overload and reverse polarity protection
Technical Specifications
| Rated output voltage | 0-30 V (Adjustable) | |
| Rated output current | 0-3 A (Adjustable) | |
| AC input voltage | AC 110 V/220 V, 60 Hz/50 Hz | |
| Ripple and noise | ≤3 mV (rms) | |
| Load stability | ≤0.3% | |
| Display resolution | voltage 0.1 V and current 0.01 A | |
| Protection | current limited lower voltage, short circuit protection and over-temperature protection. |
|
| Insulation Resistance | ≥ 7 MΩ | |
| Cooling method | Strong wind cooling | |
| Dimensions | 260 × 150 × 160 mm | |
Laboratory power supply type:
- Transformer
Laboratory power supply number of channels:
- Single-channel
Laboratory power supply Max. voltage:
- Up to 30 V
Laboratory power supply Max. current:
- Up to 3 A
Laboratory power supply indicator type:
- LED indicators
