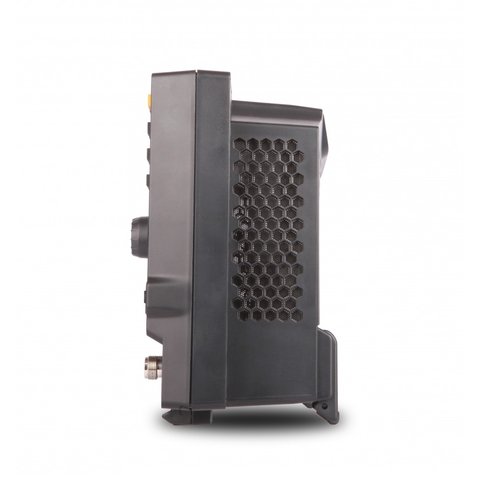

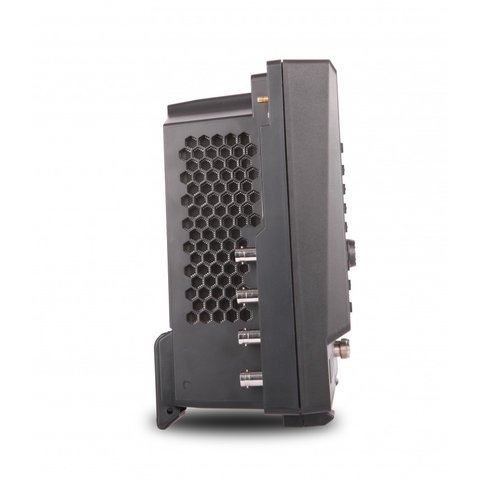

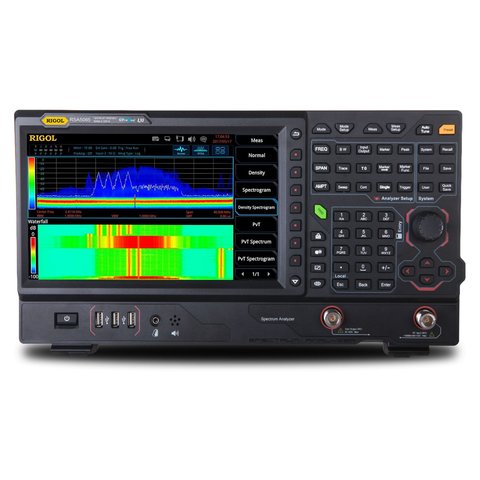

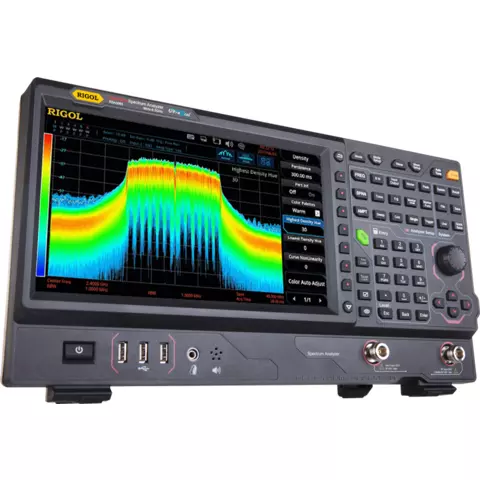

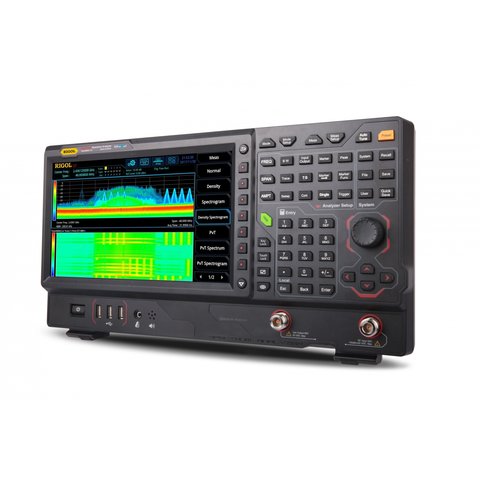

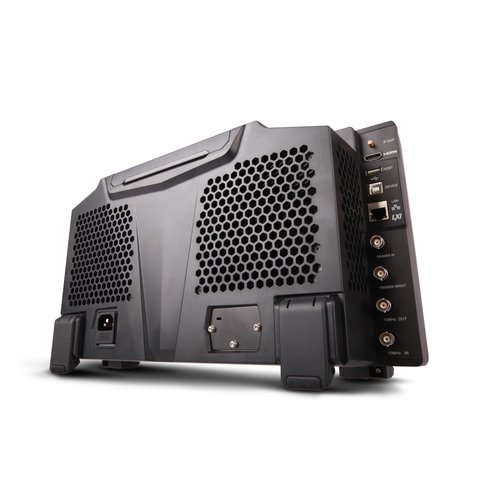

Real-time Spectrum Analyzer RIGOL RSA5032

RIGOL RSA5032 combines industry leading real-time performance (7.45µs 100% POI), rich data displays and advanced triggering options, allowing the user to quickly capture, identify and analyze complex events. The device scans a complete spectrum of 9 kHz to 3.2 GHz with a maximum sample rate of 51.2 MS/s.

It is a perfect tool for engineers working with RF technologies (WiFi, Bluetooth, etc).

Features

• Ultra-Real technology
• Frequency: up to 3.2 GHz
• Displayed average noise level (DANL): <-165 dBm (typical)
• Phase noise: <-108 dBc/Hz (typical)
• Level measurement uncertainty: <0.8 dB
• Min. RBW 1 Hz
• EMC filter and quasi-peak detector
• Various measurement functions
• Multiple measurement modes
• Up to 40 MHz real-time analysis bandwidth
• Multiple trigger modes and trigger masks
• Density, Spectrogram, and other display modes PC software options
• 10.1'' capacitive multi-touch screen, supporting touch gestures
• USB, LAN, HDMI and other communication and display interfaces

Ultra-Real Technology Features

• Seamless analysis
  • Seamless I/Q data acquisition in the analysis bandwidth
  • Seamless spectrum analysis
• FMT
  • Frequency mask trigger (FMT) to trigger the measurement by sporadic or transient events in the spectrum
• Composite displays
  • Spectrogram for gap-free display of the spectrum
  • Density for you to visualize how frequently signals occur

Comparative Specifications

Technical Specifications

All Measurement Modes

General-Purpose Spectrum Analyzer (GPSA) Mode

Frequency

Frequency Readout Accuracy
Marker Frequency Resolution		span/(number of sweep points - 1)
Marker Frequency Uncertainty		±(marker frequency readout × reference frequency accuracy + 1% × span + 10% × resolution bandwidth + marker frequency resolution)
Frequency Counter
Resolution		1 Hz
Uncertainty		±(marker frequency readout × reference frequency accuracy + counter resolution)
Frequency Span
Range		0 Hz, 10 Hz to maximum frequency
Resolution		2 Hz
Uncertainty		±span/(number of sweep points - 1)
SSB Phase Noise
		20℃ to 30℃，fc = 500 MHz
Carrier Offset	1 kHz	<-95 dBc/Hz (typical)
	10 kHz	<-106 dBc/Hz, <-108 dBc/Hz (typical)
	100 kHz	<-106 dBc/Hz, <-108 dBc/Hz (typical)
	1 MHz	<-115 dBc/Hz, <-117 dBc/Hz (typical)
Residual FM
		20℃ to 30℃ , RBW = VBW = 1 kHz
Residual FM		<10 Hz (nominal)
Bandwidth
Resolution Bandwidth (-3 dB)		1 Hz to 10 MHz, in 1-3-10 sequence
RBW Accuracy		<5% (nominal)
Resolution Filter Shape Factor (60 dB: 3 dB)		<5 (nominal)
Video Bandwidth (-3 dB)		1 Hz to 10 MHz, in 1-3-10 sequence
Resolution Bandwidth (-6 dB)		200 Hz, 9 kHz, 120 kHz, 1 MHz

Amplitude

Measurement Range
Range		fc ≥ 10 MHz
		DANL to +30 dBm
Maximum Safe Input Level
DC Voltage		50 V
CW RF Power		+30 dBm, attenuation ≥ 40 dB, preamp off.
		-10 dBm, attenuation = 20 dB, preamp on.
Maximum Damage Level
CW RF Power		+33 dBm (2 W)
Displayed Average Noise Level (DANL)
		RSA5032	RSA5032-TG	RSA5065	RSA5065-TG
Preamp off	9 kHz to 100 kHz	<-120 dBm (typical)		<-120 dBm (typical)
	100 kHz to 20 MHz	<-135 dBm, <-140 dBm (typical)		<-135 dBm, <-140 dBm (typical)
	20 MHz to 1.5 GHz	<-142 dBm, <-145 dBm (typical)		<-142 dBm, <-145 dBm (typical)
	1.5 GHz to 2.7 GHz	<-140 dBm, <-143 dBm (typical)		<-140 dBm, <-143 dBm (typical)
	2.7 GHz to 3.2 GHz	<-138 dBm, <-141 dBm (typical)		<-138 dBm, <-141 dBm (typical)
	3.2 GHz to 5.5 GHz			<-138 dBm, <-143 dBm (typical)
	5.5 GHz to 6.5 GHz			<-136 dBm, <-141 dBm (typical)
Preamp on	100 kHz to 20 MHz	<-152 dBm, <-160 dBm (typical)		<-152 dBm, <-160 dBm (typical)
	20 MHz to 1.5 GHz	<-162 dBm, <-165 dBm (typical)		<-162 dBm, <-165 dBm (typical)
	1.5 GHz to 2.7 GHz	<-160 dBm, <-163 dBm (typical)		<-160 dBm, <-163 dBm (typical)
	2.7 GHz to 3.2 GHz	<-158 dBm, <-161 dBm (typical)		<-158 dBm, <-161 dBm (typical)
	3.2 GHz to 5.5 GHz			<-156 dBm, <-161 dBm (typical)
	5.5 GHz to 6.5 GHz			<-154 dBm, <-159 dBm (typical)
Level Display
Logarithmic Scale		1 dB to 200 dB
Linear Scale		0 to reference level
Number of Display Points		801
Number of Traces		6
Trace Detector		normal, pos-peak, neg-peak, sample, RMS average, voltage average, quasi-peak
Trace Function		clear write, max hold, min hold, average, view, blank
Scale Unit		dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W
Frequency Response
		RSA5032	RSA5032-TG	RSA5065	RSA5065-TG
		attenuation = 10 dB, relative to 50 MHz, 20℃ to 30℃
Preamp off	100 kHz to 3.2 GHz	<0.5 dB, <0.3 dB (typical)		<0.5 dB, <0.3 dB (typical)
	3.2 GHz to 6.5 GHz			<0.7 dB, <0.5 dB (typical)
		attenuation = 0 dB, relative to 50 MHz, 20℃ to 30℃
Preamp on	100 kHz to 3.2 GHz	<0.7 dB, <0.3 dB (typical)		<0.7 dB, <0.3 dB (typical)
	3.2 GHz to 6.5 GHz			<0.9 dB, <0.5 dB (typical)
Input Attenuation Switching Uncertainty
Setting Range		0 dB to 50 dB, in 1 dB step
Switching Uncertainty		fc = 50 MHz, relative to 10 dB, preamp off, 20℃ to 30℃
		<0.3 dB
Absolute Amplitude Accuracy
Uncertainty		fc = 50 MHz, peak detector, preamp off, attenuation = 10 dB, input signal level = -10 dBm, 20℃ to 30℃
		<0.3 dB
Reference Level
Range	Logarithmic Scale	-170 dBm to +30 dBm, in 0.01 dB step
	Linear Scale	707 pV to 7.07 V, 0.11% (0.01 dB) resolution
RBW Switching
Uncertainty		1 Hz to 1 MHz: <0.1 dB
		3 MHz, 10 MHz: <0.3 dB
Level Measurement Uncertainty
		95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamp off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20℃ to 30℃
Level Measurement Uncertainty		<0.8 dB (nominal)
RF Input VSWR
		RSA5032	RSA5032-TG	RSA5065	RSA5065-TG
VSWR	300 kHz to 3.2 GHz	<1.6 (nominal)		<1.6 (nominal)
	3.2 GHz to 6.5 GHz			<1.8 (nominal)
Distortion
Second Harmonic Intercept (SHI)		fc ≥ 50 MHz, input signal level = -20 dBm, attenuation = 0 dB, preamp off.
		+45 dBm
Third-order Intercept (TOI)		fc ≥ 50 MHz, two -20 dBm tones at input mixer spaced by 200 kHz, attenuation = 0 dB, preamp off.
		+11 dBm, +15 dBm (typical)
1 dB Gain Compression (P1dB)		fc ≥ 50 MHz, attenuation = 0 dB, preamp off.
		0 dBm (norminal)
Spurious Response
Residual Response		input terminated with a 50 Ω load, attenuation = 0 dB, 20℃ to 30℃
		<-90 dBm, <-100 dBm (typical)
Intermediate Frequency		<-60 dBc
Input-related Spurious		mixer level = -30 dBm
		<-60 dBc

Sweep

Trigger

Real-time Spectrum Analyzer (RTSA) Mode

Package Contents

• RIGOL RSA5032 Real-time Spectrum Analyzer — 1 pc.
• Power Cable — 1 pc.

Spectrum analyzer Max. frequency:

• 3,2 GHz
