Multifunction tester for measuring insulation resistance, voltage, residual-current device (RCD) testing.
USD 150.68
Buy wholesale and save
UNI-T UT526 – multifunction tester for measuring insulation resistance, voltage and residual-current device (RCD) testing.
Features
- Voltage Measurement
- Test Light
- Phase Switch (RCD): 0° and 180°
- Low Battery Display
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| Insulation Resistance Measurement | ||
| Test Voltage | 250 V / 500 V / 1000 V | 10%+0 |
| Test Current | 250 V (R=250 kΩ); 1 mA 500 V (R=500 kΩ); 1 mA 1000 V (R=1 MΩ); 1 mA |
10%+0 10%+0 10%+0 |
| Test Current Short Circuit < 2 mA | 250 V: 0.05 MΩ - 200 MΩ 500 V: 0.05 MΩ - 300 MΩ 1000 V: 0.05 MΩ - 500 MΩ |
5%+5 5%+5 5%+5 |
| RCD Test | ||
| Operational Voltage | 220 V 10% / 45Hz - 65Hz | |
| Test Current | 10 mA / 30 mA / 100 mA / 300 mA | 0 - 10% |
| Trip Time | 0ms-2000 ms, 1 n General (10 mA) | 5%+2 |
| Resistance Measurement | ||
| Test Voltage | Around 5.0 V | |
| Test Current | > 200 mA (R<2 Ω) | |
| Continuity Resistance Range | 0.00 W - 2000 W | 2%+5 |
| AC/DC Voltage Measurement | ||
| Range | 0 - 440 V | 2%+3 |
| Frequency | 20 Hz - 100 Hz | |
| General Characteristics | ||
| Power | 1.5 V Battery × 6 | |
| Display | LCD, 71 × 34 mm | |
| Size | 160 × 100 × 71 mm | |
| Weight | 380 g | |

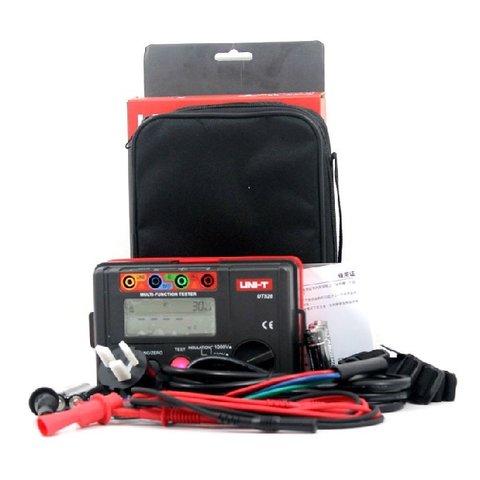

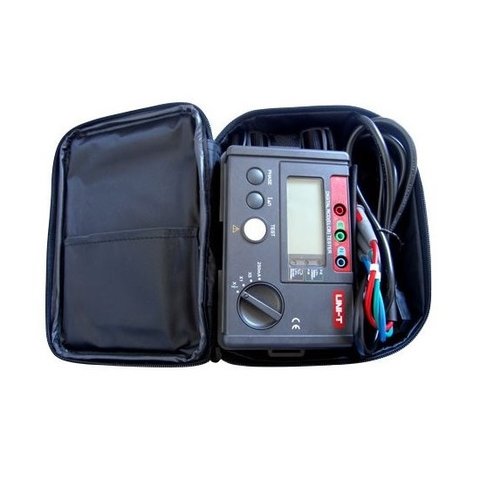

Package Contents
- UNI-T UT526 Tester — 1 pc.

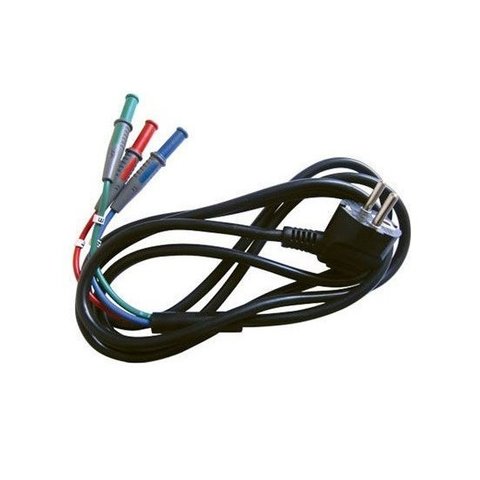

- Test Lead — 1 pc.
- Alligator Clip — 1 pc.
- Carrying Bag — 1 pc.
Note! Batteries are not included in the package.
