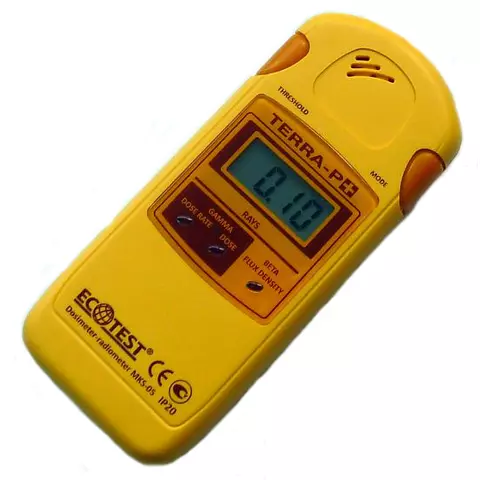

Radiation Detector EcoTest TERRA-P+ MKS-05
General information
Warranty
USD 259.00
General information
0.15 kg Warranty: 12 months
TERRA-P+ is a new version of world-known dosimeter TERRA-P. It can measure surface beta-particles flux density with capability of automatic subtraction of gamma background, has 5 independent measuring channels.
USD 259.00
Buy wholesale and save
In comparison with TERRA-P MKS-05 dosimeter-radiometer, TERRA-P+ has new features::
- wider measurement range of gamma radiation ambient dose equivalent rate
- measurement of surface beta-particles flux density
- measurement of ambient dose equivalent accumulation time
- automatic subtraction of gamma background at measurement of beta contamination
- programming of threshold level values:
- gamma radiation ambient dose equivalent rate
- gamma radiation ambient dose equivalent
- surface beta-particles flux density
- digital display backlight
- wider operating temperature range.
Technical Specifications
| Measurement ranges and main relative errors | |
|---|---|
| Gamma radiation dose equivalent rate (137Cs), µSv/h | 0.1…5 000; 25+2/H*(10) |
| Gamma radiation dose equivalent (137Cs), mSv | 0,001-9999 |
| Beta-particles flux density (90Sr+90Y), 1/(cm²)·min) | 10-100000; 25 + 200/φβ |
| Dose equivalent accumulation time and accuracy of measurement, 1min…100h | ±0.1s per 24h |
| Energy ranges of measurement and energy dependence | |
| Gamma radiation, MeV | 0.05…3.0; ±25% |
| Beta radiation, MeV | 0.5…3.0 |
| Ranges of threshold level values programming for: - ambient dose equivalent rate, µSv/h - ambient dose equivalent, mSv - flux density, 10³/cm²·min |
0-5000 0-9999 0-9 999 |
| Resolution of threshold level programming for: - ambient dose equivalent rate, µSv/h - ambient dose equivalent, mSv - flux density, 10³/cm²·min |
0.01 0.001 0.01 |
| General Specifications | |
| Battery life, hours | 2000 |
| Operating temperature range, °C | -20 ... +50 |
| Dimensions, mm | 120 × 52 × 26 |
| Weight, kg | 0.15 |
Package Contents
- Ecotest TERRA-P+ MKS-05 dosimeter-radiometer — 1 pc.
- Operating manual — 1 pc.
- Leather case — 1 pc.
