Radiation Detector EcoTest TERRA MKS-05
id: 813654
Radiation Detector EcoTest TERRA MKS-05
General information
Warranty
USD 379.00
General information
0.15 kg Warranty: 12 months
Measuring gamma and X-ray radiation ambient dose equivalent rate and equivalent, surface beta-particles flux density, dose equivalent accumulation time.
USD 379.00
Buy wholesale and save

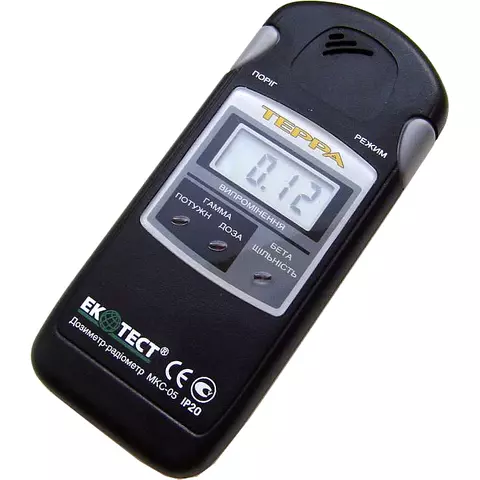

Ecotest TERRA MKS-05 radiometer is designed for measuring gamma and X-ray radiation ambient dose equivalent rate and equivalent, surface beta-particles flux density, dose equivalent accumulation time.
Ecotest TERRA MKS-05 Radiometer Features
- Five independent measuring channels with alternate data indication on the single liquid crystal display
- Built-in gamma, beta sensitive Geiger-Muller counter
- Prompt gamma background evaluation within 10 seconds
- Automatic gamma background subtraction while measuring beta contamination
- Automatic setting of measurement intervals and ranges
- Audio signal for each detected gamma-quantum and beta-particle
- Audio alarm in case of exceeded programmed threshold levels
- Digital display backlight
- Low battery indication
- Crashproof frame
Ecotest TERRA MKS-05 Radiometer Technical Specifications
| Measurement ranges and basic accuracy | |
|---|---|
| Gamma and X-ray radiation dose equivalent rate, µSv/h | 0.1 - 9 999; ±15% |
| Gamma and X-ray radiation dose equivalent, mSv | 0.001 - 9 999; ±15% |
| Beta-particles flux density, 1/(cm²)·min) | 10 - 100 000; ±20% |
| Dose equivalent accumulation time and measurement accuracy | 1 min - 100 h; ±0.1 s per 24 h |
| Energy ranges of measurement and energy dependence | |
| Gamma and X-ray radiation, MeV | 0.05 - 3.0; ±25% |
| Beta radiation, MeV | 0.5 - 3.0 |
| Resolution of threshold level programming | |
| Dose rate, µSv/h | 0,01 |
| Dose, mSv | 0,001 |
| Flux density, 10³/(cm²)·min) | 0,01 |
| General information | |
| Measurement time intervals, s | 1 - 70 |
| Battery life, h | 2000 |
| Operating temperature range, °C | -20 to +50 |
| Dimensions, mm | 120 × 52 × 26 |
| Weight, kg | 0,15 |
Ecotest TERRA MKS-05 Radiometer Package
- Ecotest TERRA MKS-05 radiometer
- User manual
- Leather case
