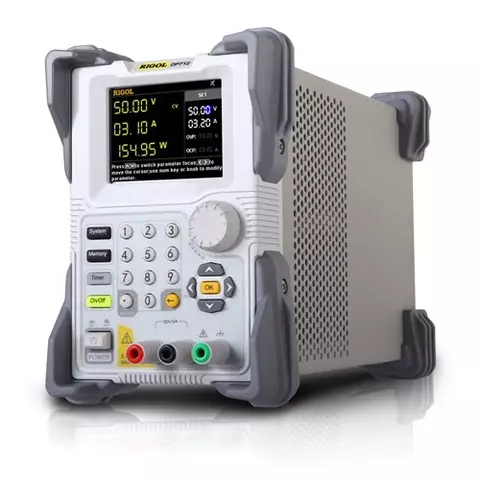

Programmable Power Supply RIGOL DP712
General information
Warranty
USD 299.00
General information
7.9 kg 110, 220 V Warranty: 36 months
Single channel power supply designed for supplying up to 50 V and 3 A DC. Low ripple and noise, 3.5" color LCD, power: 150 W.
USD 299.00
Buy wholesale and save
RIGOL DP712 is a single-channel programmable power supply (50 V/3 A, 150 W).
Features
- 3.5 inch TFT color LCD
- Series/parallel connection support
- Multi unit output synchronization by Ext trigger
- Resolution: 1 mV/1 mA (opt.)
- Low Ripple & Noise: <500 μVrms / 4 mVpp
- OVP, OCP and OTP
- Timer output (opt.)
- RS232 output
Application
- Education in universities and technical colleges
- Manufacturing and production tests
- Off-line repair
- Electronic engineering
Technical Specifications
| Model | RIGOL DP711 | RIGOL DP712 |
|---|---|---|
| Channels | 1 | |
| Voltage | 0 V to 30 V | 0 V to 50 V |
| Current | 0 A to 5 A | 0 A to 3 A |
| Load Regulation | < 0.01% + 2 mA | |
| Line Regulation | < 0.01% + 2 mA | |
| Normal Mode Voltage | < 500 μVrms/3 mVpp | < 500 μVrms/4 mVpp |
| Normal Mode Current | < 2 mArms | |
| Command Processing Time | < 100 ms | |
| Interface | RS232 | |
| Display | 3.5 inch TFT color LCD | |
| Dimensions | 140 × 202 × 332 mm | |
| Net weight | 6.9 kg | |
Package Contents
- RIGOL DP712 Programmable Power Supply — 1 pc.
Laboratory power supply type:
- Transformer
Laboratory power supply number of channels:
- Single-channel
Laboratory power supply Max. voltage:
- Up to 50 V
Laboratory power supply Max. current:
- Up to 3 A
Laboratory power supply indicator type:
- 3.5" color LCD
Laboratory power supply maximum power:
- 150 W
