Programmable DC Electronic Load SIGLENT SDL1020X-E
id: 893833
id: 893833 7 kg Warranty: 36 months
200 W DC programmable electronic load. Features an input range of 150 V/30 A 200W and 1 mV, 1 mA min. readback resolution
Add to wishlist
Compare
Compare
Buy wholesale and save
Overview
Warranty
Overview

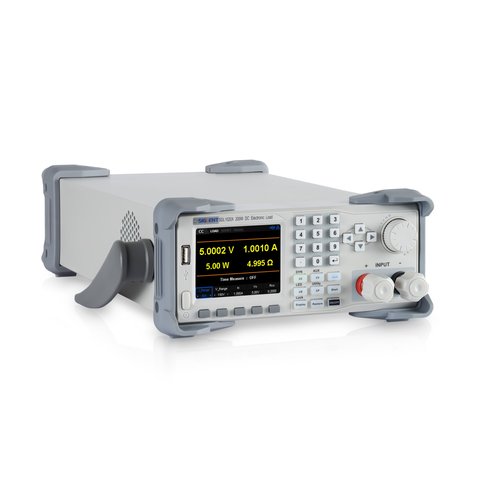

SIGLENT SDL1020X-E is a programmable DC electronic load with a total power up to 200 W. The device has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications.

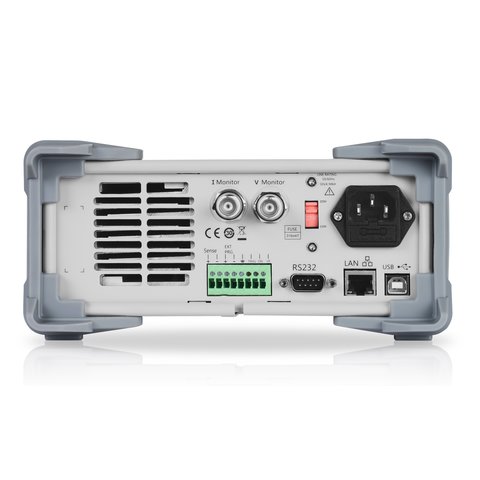

SIGLENT SDL1020X-E model provides 1 mV/1 mA resolution and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes S232/USB/LAN interface types.
Features
- SDL1020X-E (Single channel): DC 150 V/30 A, total power up to 200 W.
- 4 static modes / dynamic mode: CC/CV/CR/CP.
- CC Dynamic mode: continuous, pulsed, toggled.
- CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz.
- CV Dynamic mode: 0.5 Hz.
- Measuring speed of voltage and current: up to 500 kHz.
- Adjustable current rise time range: 0.001 A/us~2.5 A/us.
- Min. readback resolution: 1 mV, 1 mA.
- Short-circuit, Battery test, CR-LED mode, and factory test functions.
- 4-wire SENSE compensation mode function.
- List function supports editing as many as 100 steps.
- Program function supports 50 groups of steps.
- OCP, OVP, OPP, OTP and LRV protection.
- External analog control.
- Voltage, Current monitoring via 0-10 V.
- 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously.
- Built-in RS232/USB/LAN communication interface, USB GPIB module (optional).
- Waveform trend chart and ease-to-use file storage and call functions.
- Includes PC software: supports SCPI, LabView driver.
Technical Specifications
| Model | SDL1020X | SDL1020X-E | |||
|---|---|---|---|---|---|
| Input Rating (0~40 °C) |
Input voltage | 0~150 V | |||
| Input current | 0~5 A | 0~30 A | 0~5 A | 0~30 A | |
| Input power | 200 W | ||||
| Minimum Operating Voltage (DC) |
0.15 V at 5 A | 0.9 V at 30 A | 0.15 V at 5 A | 0.9 V at 30 A | |
| CV Mode | Range | 0~36 V | 0~150 V | 0~36 V | 0~150 V |
| Resolution | 1 mV | 1 mV | |||
| Accuracy | ± (0.05%+0.025%FS) 50 ppm/°C | ± (0.05%+0.025%FS) 50 ppm/°C | |||
| CC Mode | Range | 0~5 A | 0~30 A | 0~5 A | 0~30 A |
| Resolution | 1 mA | 1 mA | |||
| Accuracy *2 | ± (0.05%+0.05%FS) 100 ppm/°C | ± (0.1%+0.1%FS) 100 ppm/°C | |||
| CR Mode *1 | Range | 0.03 Ω~10 kΩ | |||
| Resolution | 1 mA/Vsense | ||||
| Accuracy | 0.01%+0.0008 s [1] | ||||
| CP Mode *3 | Range | 200 W | |||
| Resolution | 10 mW | ||||
| Accuracy | 0.1%+0.1% FS | ||||
| Dynamic Mode | |||||
| CC Mode | |||||
| T1&T2 | 20 us~999 S/Res: 1 uS | 20 us~999 S/Res: 1 uS | |||
| Accuracy | 20 us~200 ms/Acc: 5 us, 200 ms ~999 s/Acc: 5 ms | 20 us~200 ms/Acc: 5 us, 200 ms ~999 s/Acc: 5 ms | |||
| Current Slew Rate *4 | 0.001~0.5 A/us | 0.001~2.5 A/us | 0.001~0.5 A/us | 0.001~2.5 A/us | |
| Minimum Rise Time | ≈10 uS | ≈12 uS | ≈10 uS | ≈12 uS | |
| Measuring Range | |||||
| Readback Voltage | Range | 0~36 V | 0~150 V | 0~36 V | 0~150 V |
| Resolution | 0.1 mV | 1 mV | 1 mV | ||
| Accuracy | ± (0.025%+0.025% FS) 20 ppm/ °C | ± (0.05%+0.02% FS) 20 ppm/°C | |||
| Readback Current | Range | 0~5 A | 0~30 A | 0~5 A | 0~30 A |
| Resolution | 0.1 mA | 1 mA | |||
| Accuracy | ± (0.05%+0.05% FS) 50 ppm/°C | ± (0.05%+0.05% FS) 50 ppm/°C | |||
| Readback Power | Range | 200 W | |||
| Resolution | 10 mW | ||||
| Accuracy | ± (0.1%+0.1% FS) | ||||
| Readback Resistance | Range | 0.03 Ω ~10 KΩ | |||
| Resolution | 0.001 Ω | ||||
| Protection Range | |||||
| OPP | 210 W | ||||
| OCP | 5.1 A | 31 A | 5.1 A | 31 A | |
| OVP | 41 V | 155 V | 41 V | 155 v | |
| OTP | 85°C | ||||
| Battery Measurement | Battery Input: 0.5~150 V Max Measurement: Capacity=999 AH Resolution=0.1 mA; Time Range=1 s~24 H |
||||
| Input Resistance | >200 kΩ | ||||
| Dimensions | 256 × 115 × 410 mm (W × H × D) | ||||
| Weight | 5.8 kg | ||||
[1] Resistance Range: (1/(1/R+(1/R)*0.01%+0.0008),1/(1/R-(1/R)*0.01%-0.0008)
*2 Current Slew rate: >0.2 A/us.
*3 The input voltage/current value should not be smaller than 10% of the full scale.
*4 Current slew rate: rising slew rate for 10%~90% of the current (0-maximum current).
User Manual
Download SIGLENT SDL1020X-E User Manual.
Programming Guide
Download SIGLENT SDL1020X-E Programming Guide.
Data Sheet
Download SIGLENT SDL1020X-E Data Sheet.
Package Contents
- Programmable DC Electronic Load SIGLENT SDL1020X-E — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- Guarantee Card — 1 pc.
- Quick Start Guide — 1 pc.
