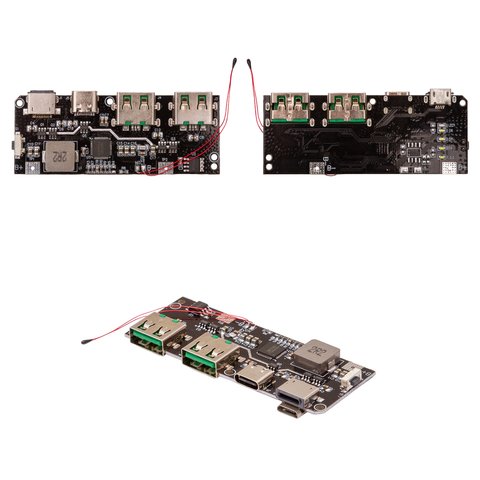

PowerBank Controller, (22.5 W, Li-ion, 4.5 A, QC4.0, QC3.0, PD, SW6206)
id: 919891
PowerBank Controller, (22.5 W, Li-ion, 4.5 A, QC4.0, QC3.0, PD, SW6206)
General information
Warranty
Price coming soon
General information
Provides power up to 22.5 W, supports Li-Ion, Li-Pol, LiFePo4 batteries, has 6 universal ports, BMS system for protection and supports fast charging with various protocols.
Price coming soon
Controller for PowerBank QC4.0 QC3.0 – provides charging output power up to 22.5 W, supports Li-Ion and Li-Pol batteries, as well as LiFePo4 operation mode, providing protection against surges and overloads thanks to the built-in BMS.
Features
- Built-in BMS system: protects batteries from overvoltage, overcharging and ensures charge balancing.
- 6 universal ports: Type-C, Lightning, MicroUSB, Type-A1, Type-A2, DC 5.5x2.1.
- Fast charging: supports PD3.0, QC4+, QC3.0, SCP, VOOC protocols.
- Low start-up current: the module activates at 50mA consumption.
- Simultaneous operation: supports simultaneous external discharge via Type-A1, Type-A2 and Type-C ports.
- Compact dimensions: 72 mm x 27 mm.
Technical characteristics
| Supply voltage | 5V, 9V, 12V |
| Power | 22.5 W |
| Input ports | MicroUSB, Lightning, Type-C |
| Maximum current | Up to 5A |
| Element support | 4.2/4.35/4.4/4.4/4.5 V |
| Power output | Up to 22 W |
| Low current mode support | Yes |
| Outgoing fast charging protocol | PPS, PD3.0, PD2.0, QC4+, QC4, QC3.0, QC2.0, AFC, FCP, SCP, PE2.0, PE1.1, SFCP, VOOC |
| Fast charging input protocol | PD3.0, PD2.0, AFC, FCP, SCP, PE1.1 |
| Type-C interface | Support PPS/PD3.0/PD2.0, fast charging output |
| BC1.2 Module | Support DCP mode, Apple/Samsung, built-in 12-bit ADC for power measurement |
| Protection | Overvoltage, overcurrent, short circuit, thermal protection |
| USB ports | Type-A1, Type-A2, Type-C (all support fast charging) |
| Simultaneous charging and discharging | Supported |
| Charge indicator | LED discharge status indicator |
Li-ion battery charge controller type:
- Li-ion
