Portable Digital Oscilloscope FNIRSI 150
id: 895991
Portable Digital Oscilloscope FNIRSI 150
General information
Warranty
USD 22.50
General information
0.5 kg
Availability in stock:
HK
Warranty: 6 months Portable single-channel oscilloscope with 200 kHz bandwidth, 1 MSa/s sampling rate, 1 kB memory depth and 2.4" TFT display.
USD 22.50
Similar products
ID
Product
Regular price
(USD)
(USD)
Your price
(USD)
(USD)
Availability in stock

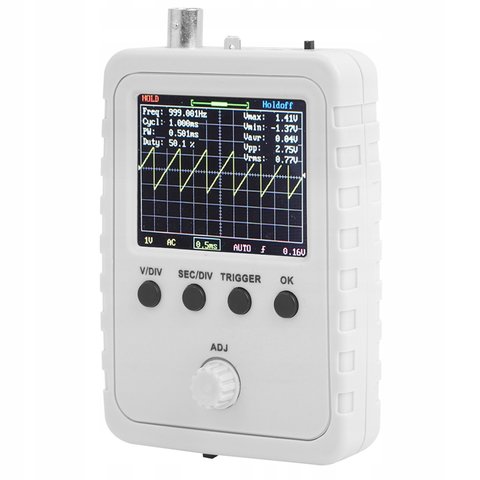

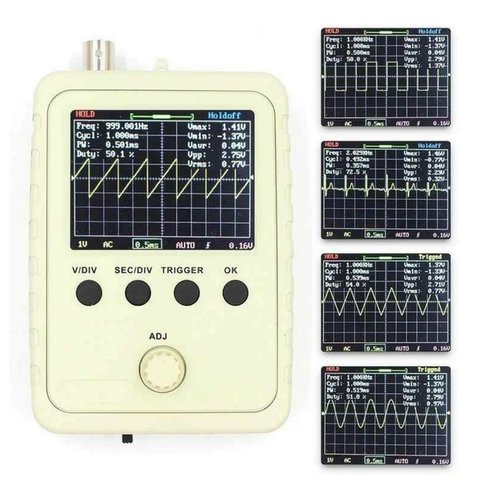

FNIRSI 150 is a digital pocket-sized oscilloscope weighing only 100 g. FNIRSI 150 is used to display waveforms, measure frequency, period and duty cycle, and measure multiple voltages. The oscilloscope is equipped with a 2.4” TFT display with bright backlight.
Features
- A pocket-sized device that provides the precision of measurements.

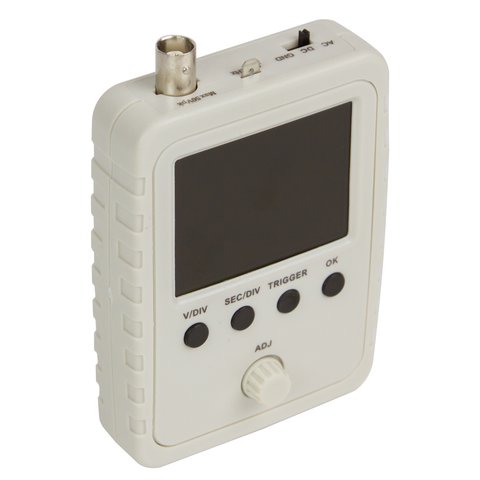

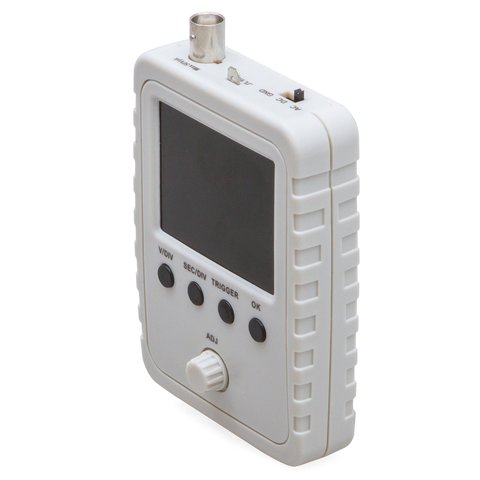

- There are four buttons and an encoder knob on the front panel of the oscilloscope:
- V/DIV — vertical scanning setting;
- SEC/DIV — horizontal scanning setting;
- TRIGGER — setting the mode and type of synchronization;
- OK— HOLD mode, measurements ON/OFF;
- ADJ — selected parameter change.
- Used for diagnostics and debugging of audio amplifiers, automotive sensors, switching power supplies.
Technical Specifications
| Number of Channel | 1 |
| Analog Bandwidth | 0 - 200 KHz |
| Sensitivity | 5 mV/Div - 20 V/Div |
| Sensitivity error | 5% |
| Resolution | 12-bit |
| Input Impedance | 1 MΩ |
| Maximum Input voltage | 50 Vpk |
| Coupling | DC, AC, GND |
| Max Real-time Sampling Rate | 1 MSa/s |
| Timebase | 10 us/Div - 500 s/Div |
| Record Length | 1024 |
| Trigger Modes | Auto, Normal, Single |
| Trigger Types | Rising/falling edge |
| Trigger Position | 1/2 of buffer size fixed |
| Display | 2.4-inch color TFT LCD with 320 x 240 resolution |
| Power Supply | 9V DC (8 - 10 V acceptable) |
| Supply Current | 120 mA @ 9 V |
| Dimensions | 115 × 75 × 22 mm |
| Weight (not including cables and power supply) | 100 g |

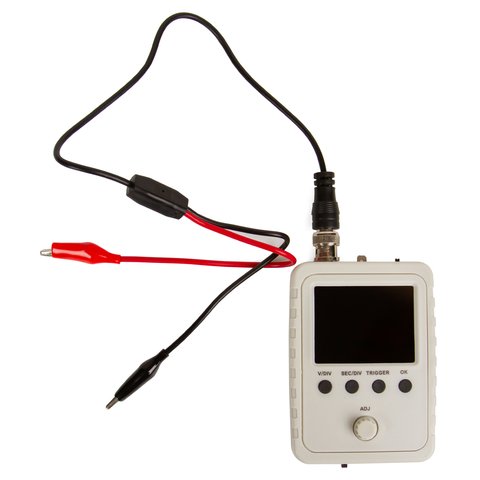

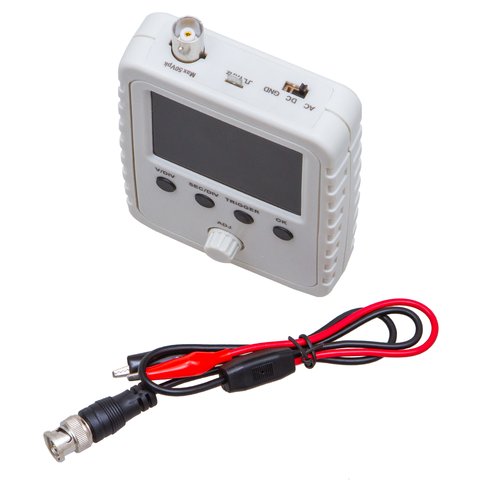

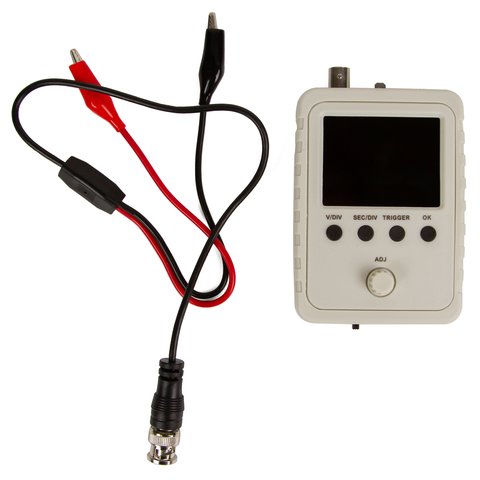

Package Contents
- FNIRSI 150 portable digital oscilloscope — 1 pc.
- Measuring probe — 1 pc.
- User manual — 1 pc.
The power supply source isn't included in the package.
Digital oscilloscope number of channels:
- Single-channel
Digital oscilloscope type:
- Portable
Digital oscilloscope sample rate:
- 1 MS/s
Digital oscilloscope storage capacity:
- 1 Kpts
Digital oscilloscope bandwidth:
- 200 kHz
Digital oscilloscope screen size:
- 2.4-inch TFT Display
