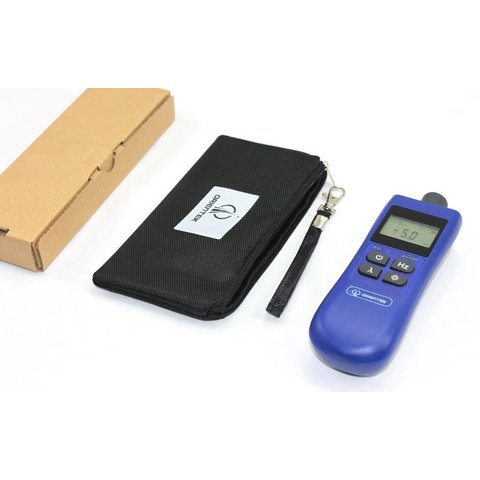

Pocket Size Optical Laser Source ORIENTEK T15M-M
id: 848337
Pocket Size Optical Laser Source ORIENTEK T15M-M
General information
Warranty
USD 72.00
General information
1 kg Warranty: 12 months
Excellent stability, portability and facile adjustments for accurate optical fiber testing. Wavelength: 850/1300 nm, modulation: 270 Hz, 1 kHz and 2 kHz.
USD 72.00
Buy wholesale and save
ORIENTEK T15M-M laser source offers excellent stability, portability and facile adjustments for accurate optical fiber testing. Single output connector serves dual wavelengths, 850 nm & 1300 nm.
ORIENTEK T15M-M can be used to test single mode optical fiber of long distance and local network. Also it can work with optical power meter to measure the loss of optical fiber.
Features
- LCD screen with backlight
- Rechargeable battery
- Auto power-off at low battery charge
- Modulation of 270 Hz, 1 kHz and 2 kHz
- Wave ID information can be transmitted (when used with ORIENTEK T25M Handheld Power Meter)
Technical Specifications
| Measuring Range (dBm) | 850/1300 nm |
| Laser | Class I |
| Spectral Width | 3 nm typical |
| Stability | 15 min preheat @25℃ ±0.05dB/15 min，±0.1dB/8 hr |
| Available Connector | FC/PC, SC/PC, ST/PC Interchangeable connectors |
| Modulated Wavelength | 270 Hz, 1 kHz, 2 kHz |
| CW Output Power | -5 dBm ±0.5dB |
| Operating & Storage Temperature | -10℃~+50℃ / -20℃~+70℃ |
| Power Supply | AA Batteries (×2) |
| Dimensions, (L×W×H) | 135×50×30 mm |
| Weight | 130 g |
