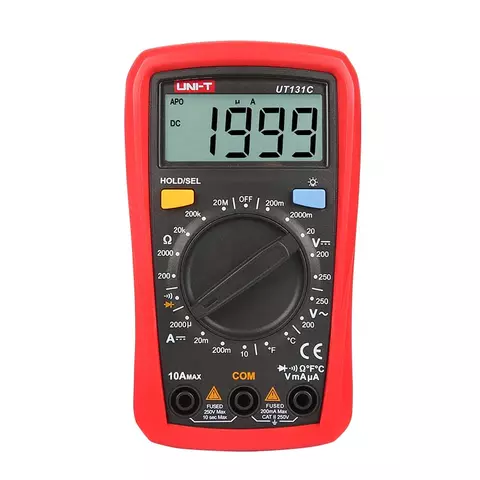

Pocket Digital Multimeter UNI-T UT131C
General information
UNI-T UT131C is a pocket digital multimeter. It is used for DC/AC voltage, DC current, resistance and temperature measuring, as well as diode testing. Its innovative industrial design ensures that the multimeter can withstand 2 meters drop.
Features
- Compact and lightweight multimeter, perfect for carrying in the toolbox or pocket.
- Testing & measurement functions:
- DC/AC voltage;
- DC current;
- resistance;
- temperature;
- diode testing;
- continuity.
- Continuity buzzer.
- Comfortable protective cover with test lead holder.
- 2 m drop proof.
- Ergonomic design.
- Auto power off.
- Auto backlight off.
- Manual range selection.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC voltage | 200 mV~ 250 V | ±(0.5%＋2) |
| AC voltage | 200 V ~ 250 V | ±(1.2%+3) |
| DC current | 2000 μA ~ 10 A | ±(1%+2) |
| Resistance | 200 Ω ~ 20 MΩ | ±(0.8%+2) |
| Temperature | -40°C ~ 1000°C | ±(1%+4) |
| ‒40°F ~ 1832°F | ±(1.5%+5) | |
| General Specifications | ||
| Power | 1.5 V battery (R03) × 2 | |
| Display | 2000-count LCD, 66 × 51 mm | |
| Dimensions | 131 × 95 × 58 mm | |
| Weight | 300 g | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download UNI-T UT131C user manual.
Package Contents
- Pocket Digital Multimeter UNI-T UT131C — 1 pc.
- Test leads — 2 pcs.
- Temperature probe — 1 pc.
- User manual — 1 pc.
Multimeter type:
- Digital
Multimeter range selection:
- Manual range
Multimeter digit capacity:
- 1999
Multimeter DC voltage:
- Up to 250 V
Multimeter AC voltage:
- Up to 250 V
Multimeter resistance:
- Up to 20 MOhm
Multimeter DC:
- Up to 10 A
Multimeter AC:
- Does not measure the AC
Multimeter capacitance:
- Does not measure the capacitance
Multimeter frequency:
- Does not measure the frequency
Multimeter inductance:
- No
Multimeter temperature:
- Yes
Multimeter power:
- No
Multimeter duty cycle:
- No
Multimeter true RMS:
- No
Multimeter backlight:
- Yes
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- No
Multimeter continuity test:
- Yes
Multimeter NCV:
- No
Multimeter battery testing:
- No
