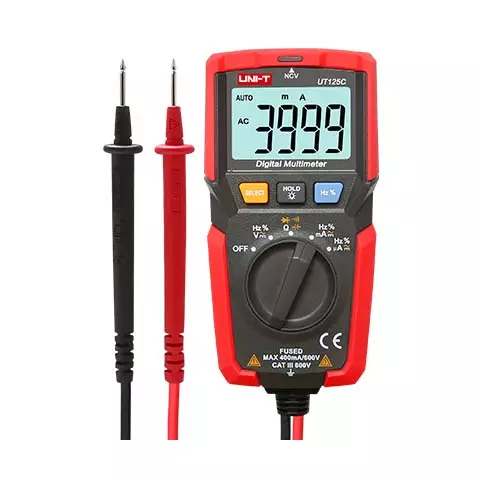

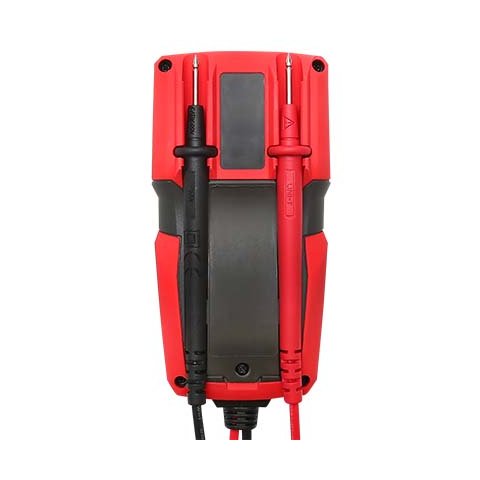

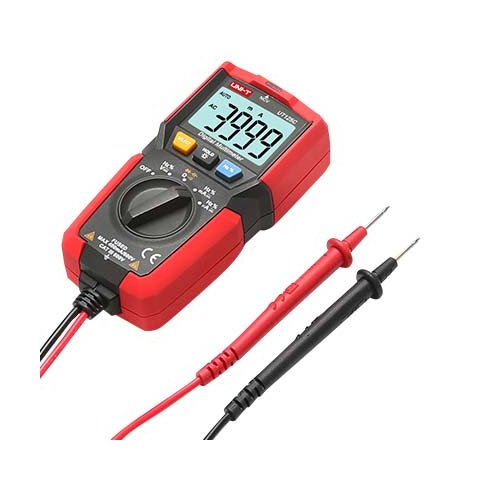

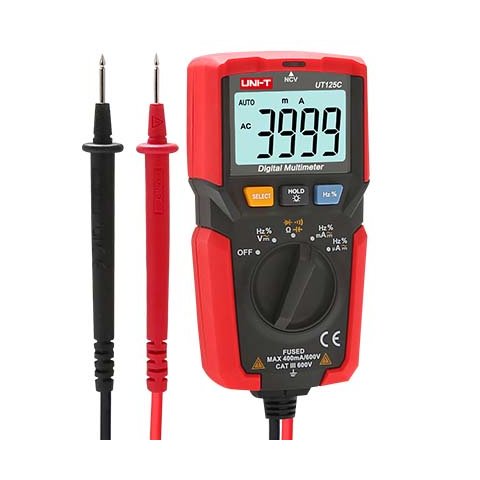

Pocket Digital Multimeter UNI-T UT125C

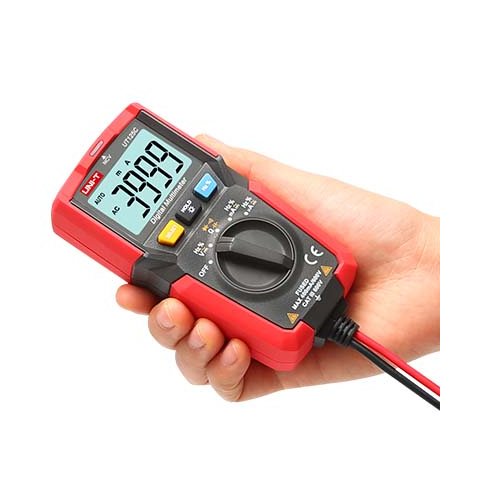

UNI-T UT125C is a palm-sized, stable and reliable multimeter with 4000 display counts and overload protection. It is an ideal tool for measuring AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity.
Features
- Overload protection with the overrange indication.
- Auto power off. The device automatically powers off if no operation for 30 minutes. Press any button to wake up the multimeter.
- Operating temperature: 0°C ~ 40°C.
- Storage temperature: -10°C ~ 50°C.
- Low power indicator.
- Other functions: data hold, NCV, backlight.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 400 mV/4 V/40 V/400 V/600 V | ±(0.5%+5) |
AC Voltage | 4 V/40 V/400 V/600 V | ±(1,2%+5) |
DC Current | 400μA/4 mA/40 mA/400 mA | ±(1.8%+5) |
AC Current | 400μA/4 mA/40 mA/400 mA | ±(2,0%+8) |
Resistance | 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ | ±(1,0%+5) |
Capacitance | 50 nF/500 nF/5 μF/50 μF/100 μF | ±(4%+10) |
Frequency | 9.999 kHz ~ 60 kHz | ±(0,1%+5) |
Duty Cycle | 20%~80% | |
General Characteristics | ||
Display | LCD 38 × 23 mm, 4000 display counts | |
Dimensions | 112 × 58 × 35 mm | |
Weight | 180 g |
User Manual
Download UNI-T UT125C User Manual.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Pocket Digital Multimeter UNI-T UT125C — 1 pc.
Note! Batteries are not included in the package.
Multimeter type:
- Digital
Multimeter range selection:
- Auto range
Multimeter digit capacity:
- 3999
Multimeter DC voltage:
- Up to 600 V
Multimeter AC voltage:
- Up to 600 V
Multimeter resistance:
- Up to 40 MOhm
Multimeter capacitance:
- Up to 100 μF
Multimeter DC:
- Up to 400 mA
Multimeter AC:
- Up to 400 mA
Multimeter inductance:
- No
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter duty cycle:
- No
Multimeter true RMS:
- No
Multimeter backlight:
- Yes
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- No
Multimeter continuity test:
- Yes
Multimeter frequency:
- Up to 60 kHz
Multimeter NCV:
- Yes
Multimeter battery testing:
- No
