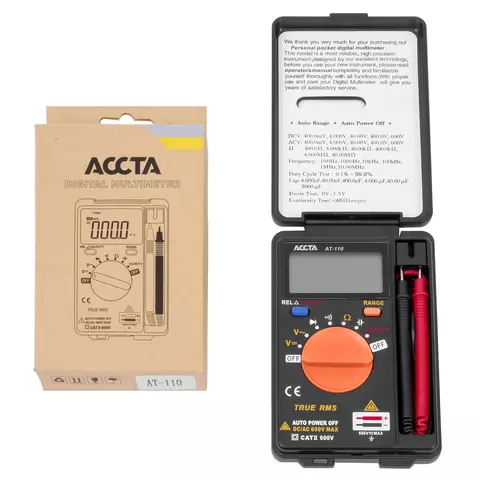

Pocket Digital Multimeter Accta AT-110
Accta AT-110 is an auto-ranging pocket-sized digital True RMS multimeter. The device may be used for diodes and continuity testing, measuring AC and DC voltage, resistance, capacitance, frequency, and duty cycle. Accta AT-110 is powered by two AAA batteries (1.5 V).
Features
- Measurement functions:
- True RMS;
- DC voltage;
- AC voltage;
- resistance;
- capacitance;
- frequency;
- continuity testing;
- diode testing;
- duty cycle.
- Auto range.
- Continuity buzzer.
- Low battery indication.
- Powered by two AAA batteries.
- Auto power off.
Technical Specifications
Function | Range | Accuracy |
---|---|---|
DC Voltage | 400 mV / 4 V / 40 V / 400 V / 600 V | ±(0.5%+4) |
AC Voltage | 400 mV / 4 V / 40 V / 400 V / 600 V | ±(0.8%+6) |
Resistance | 400 Ω /4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ | ±(0.8%+4) |
Capacitance | 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 2000 µF | ±(3.5%+8) |
Frequency | 100 Hz / 1000 Hz / 10 kHz / 100 kHz / 1 MHz / 10 MHz | ±(0.5%+4) |
General Specifications | ||
Power | AAA battery 1.5 V × 2 pcs. | |
Input impedance | 10 MΩ | |
Sampling rate | 3 times/s | |
AC Frequency response | 40-400 Hz | |
Display | LCD, 55 × 43 mm | |
Dimensions | 145 × 80 × 28 mm | |
Weight | 180 g |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Pocket Digital Multimeter Accta AT-110 — 1 pc.
- Lanyard — 1 pc.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
Multimeter type:
- Digital
Multimeter range selection:
- Auto range
Multimeter digit capacity:
- 3999
Multimeter DC voltage:
- Up to 600 V
Multimeter AC voltage:
- Up to 600 V
Multimeter resistance:
- Up to 40 MOhm
Multimeter capacitance:
- Up to 200 μF
Multimeter frequency:
- Up to 10 MHz
Multimeter AC:
- Does not measure the AC
Multimeter DC:
- Does not measure the DC
Multimeter inductance:
- No
Multimeter temperature:
- No
Multimeter power:
- No
Multimeter duty cycle:
- Yes
Multimeter true RMS:
- Yes
Multimeter backlight:
- No
Multimeter PC connection:
- No connection to PC
Multimeter diode test:
- Yes
Multimeter analog bar graph:
- No
Multimeter transistor check:
- No
Multimeter continuity test:
- Yes
Multimeter NCV:
- No
Multimeter battery testing:
- No
