Charge Card TP5000, ((USB type-C input 5V), 2 A, 4.2V/3.6V)
id: 920332
Charge Card TP5000, ((USB type-C input 5V), 2 A, 4.2V/3.6V)
General information
Warranty
Price coming soon
General information
0.01 kg Warranty: 1 months
Compact device for charging LiFePo4, Li-Ion and Li-Po batteries with LED indication of charge status, Type-C support and automatic shutdown in case of overvoltage
Price coming soon
Attention! The resistor is not included in the kit.
Important! To reconfigure the board to charge a Li-ion battery, you need to close the jumper marked A on the board.

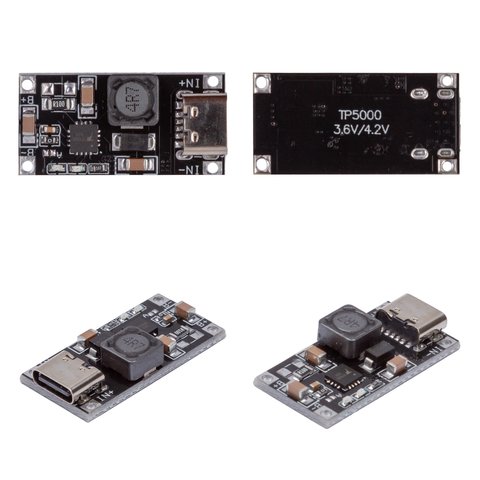

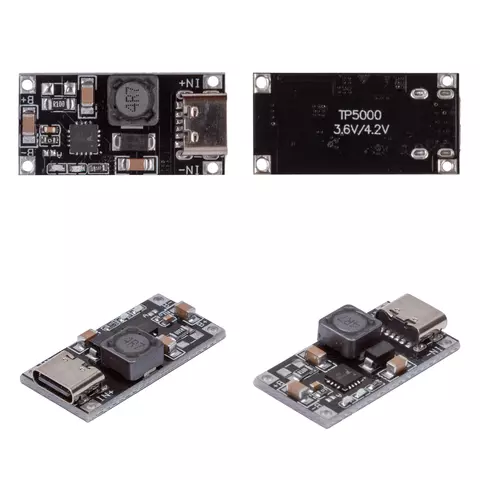

The TP5000 charging board is a device for charging various types of batteries, equipped with a TP5000 controller with a charge level indicator. Disconnects the battery at a higher voltage level than the permissible one. Equipped with a color indicator: red LED - the charging process is in progress, green LED - the battery is fully charged.
Important! To power the board, you must use a USB-A – Type-C cable. The board does not support Type-C – Type-C cables.
Features
- Support for various types of batteries: lithium iron phosphate (LiFePo4), lithium-ion or lithium polymer (Li-Ion, Li-Po).
- Disconnecting the battery at high voltage.
- Colorful indication of charging status.
- Convenient connection via Type-C connector or by soldering wires.
Technical specifications
| Input voltage | 5 V |
| Maximum charge voltage for LiFePo4 | 3.6 V |
| Maximum charge voltage for Li-ion | 4.2 V |
| Current | 2 A |
| Battery discharge protection | None |
| Input connector | Type-C (+ places for soldering wires) |
| Operating temperature | -10 – +85 °C |
| Dimensions | 5 × 17 × 42 mm |
Package content
- TP5000 charging board – 1 pc.
Li-ion battery charge controller type:
- Li-ion
- LiFePO4
Li-ion battery charge controller characteristic:
- (USB type-C input 5V)
