OWON P4250 Oscilloscope Probe (2 Pack)
id: 911465
id: 911465 0.15 kg
Set of two 250 Mhz 2 kV oscilloscope probes with 100:1 attenuation ratio
Add to wishlist
Compare
Compare
OWON P4250 is a universal high-voltage oscilloscope probe with a fixed attenuation ratio of 100:1 and a bandwidth of 250 MHz that can measure voltages of up to 2 kV. It is used to connect the circuit-under-test and oscilloscope input and is fully compatible with oscilloscopes from all manufacturers equipped with a standard BNC connector.
Features
- High accuracy of measurements;
- Insulated BNC head;
- Designed for work with high frequencies up to 250 MHz;
- Safe measurement of operating voltage up to 2 kV;
- Injection-molded ground wires for reliable contact and extended service life;
- High-quality plastic used for the handle results into enhanced hand feel and a robust construction;
- Several functions and a compact size for a convenient use;
- Advanced technological build for superior performance;
- Compatible with oscilloscopes from Owon, Rigol, Siglent, Atten, and other brands.
Technical Specifications
Attenuation ratio | 100:1 |
Bandwidth | 250 MHz |
Maximum operating voltage | 2 kV |
Input resistance | 100 MΩ |
Input capacitance | 5 pF |
Compensation range | 10 – 35 pF |
Rise time | 1.5 ns |
Connector type | BNC |
Operating temperature | 0°C to 50°C |
Cable length | 120 cm |
Material | Plastic |
Weight | 95 g |

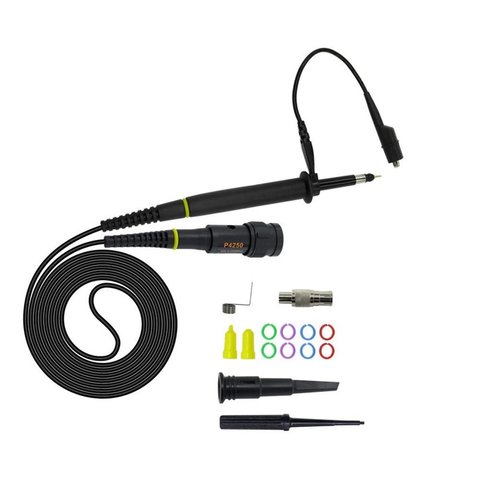

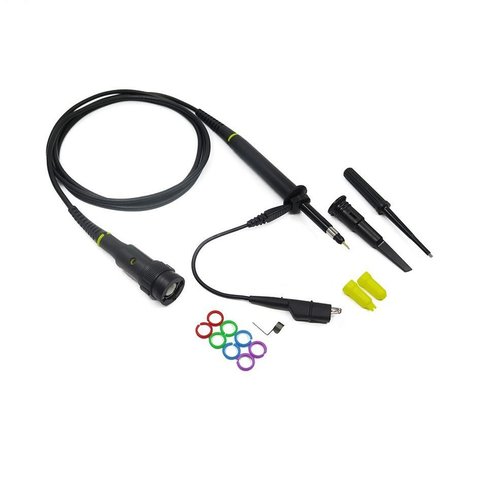

Package Contents
- OWON P4250 oscilloscope probe — 1 pc.
- Protective cap — 2 pc.
- Color ring — 4 pc.
- Regulating rod — 1 pc.
- User manual — 1 pc.
Test Lead for Oscilloscope is compatible with the following models of Digital Oscilloscopes:
- OWON AS101
- OWON SDS1102
- OWON SDS1202
- RIGOL DS1202Z-E
- RIGOL DS2202A-S
- RIGOL DS2202E
Test lead for oscilloscope bandwidth:
- 250 MHz
Test lead for oscilloscope Max. input voltage:
- 2000 V
