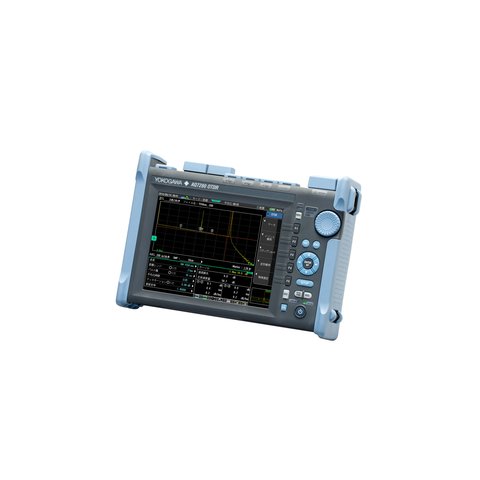

Optical Time Domain Reflectometer Yokogawa AQ7282A
id: 865635
Optical Time Domain Reflectometer Yokogawa AQ7282A
General information
Warranty
USD 4900.00
General information
9 kg Warranty: 12 months
Handheld Optical Time Domain Reflectometer with 1310/1550 nm wavelength (single-mode) and 38/36 dB dynamic range (single-mode).
USD 4900.00
Buy wholesale and save
Yokogawa AQ7282A Optical Time Domain Reflectometer is a handheld optical time domain reflectometer with high dynamic range. Its reliability is ensured by shockproof casing and software protected from viruses. Perfect for optical fiber installation, maintenance and repair. The device may be used for various optic fiber networks.
Features
- Wave length: 1310/1550 nm (single-mode).
- Dynamic range: 38/36 dB (single-mode).
- Short dead zone: 0.6 m.
- Battery life up to 15 hours!
- USB interface.
- Plug-in module for a video probe.
- Compact and lightweight.
Technical Specifications
| Wave length | 1310/1550 nm (± 25 nm) |
| Dynamic range | 38/36 dB |
| Dead zone | 0.6 m |
| Distance range, km | 0.2, 0.5, 1, 2, 5, 10, 20, 30, 50, 100, 200, 300, 400, 512 |
| Pulse width, ns | 3, 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000, 5000, 10000, 20000 |
| Sampling points | up to 256 000 |
| Laser class | 1M |
| Measuring step | minimum 2 cm | Battery life | up to 15 hours |
| Operating Temperature | -10 to +50 °C |
Package Contents
- Optical Time Domain Reflectometer – 1 pc.
- Optical Time Domain Reflectometer Module – 1 pc.
- Battery – 1 pc.
- AC power adapter with cable – 1 pc.
- Carrying strap – 1 pc.
- User Manual – 1 pc.
- CD with Software – 1 pc.
Reflectometer dynamic range:
- 38 dB
- 36 dB
Reflectometer wave length:
- 1300 nm
- 1550 nm
Reflectometer fiber type:
- Singlemode
