Optical Time Domain Reflectometer ORIENTEK TR600 SV20A
General information
Warranty
USD 2700.00
General information
5 kg 110, 220 V Warranty: 12 months
OTDR for single mode fibers. Wavelength: 1310/1550 nm. Dynamic range: 32/30 dB.
USD 2700.00
Buy wholesale and save

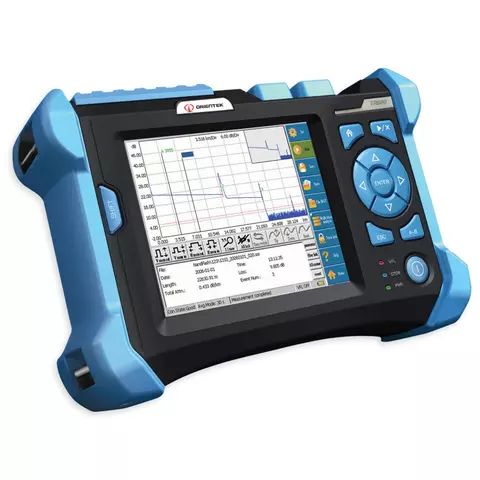

OrienTek TR600 SV20A is an optical time domain reflectometer (OTDR) for single mode fibers with a wavelength of 1310/1550 nm. The device is characterized by a high dynamic range and short dead zone.
Features
- Wavelength: 1310/1550 nm.
- Applicable fiber: Single mode.
- Built-in Visible Fault Locator (VFL).
- < 2 m extra-short event dead zone.
- Distance Range: 4, 8, 16, 32, 64, 128, 256 km.
- USB interfaces, supporting USB flash and printer and direct cable download to PC via ActiveSync software.
- Memory capacity > 800 traces.
- Built-in lithium battery with high capacity for over 8 hours of operating life.
- Display: 6.5-inch color TFT touch screen LCD (640 × 480).
- One year warranty.
Technical Specifications
| Wavelength | 1310/1550 nm |
| Dynamic range | 32/30 dB |
| Pulse with | 5, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240, 20480 ns |
| Display | 6.5-inch color TFT touch screen LCD (640 × 480) |
| Lineraity | ± 0.5 dB/dB |
| Loss threshold | 0.05 dB |
| Loss resolution ratio | 0.01 dB |
| Sampling resolution ratio | 0.125 – 8 m |
| Sampling point | 32 K |
| Typical real-time refreshing duration | 0.2 |
| Memory capacity | SD card (4 G), > 10 000 traces |
| Measurement duration | user-defined; 5 sec; 10 sec; 15 ces; 30 sec; 1 min; 2 min; 3 min |
| Environment Conditions | |
|---|---|
| Operation temperature | -10 ～ +50℃ |
| Storage temperature | -40 ～ +70℃ |
| Relative humidity | 0% - 95% (non condensation) |
| Interfaces | |
| Optical interface | FC/UPC (PC and APC are selectable) |
| Data interface | USB, SD card |
| General Specifications | |
| Power supply | Li battery; > 8 hours of opration |
| Dimensions | 150 × 235 × 66 mm |
| Weight | 1,5 kg |
Data Sheet
Download Download ORIENTEK TR600 SV20A Data Sheet.
Interfaces
- Optical interface 1 / VFL
- Optical interface 2 / OTDR
- Charging indicator
- SD card interface
- Power adapter interface
- Earphone interface
- USB interface
- Ethernet interface
Reflectometer dynamic range:
- 32 dB
- 30 dB
Reflectometer wave length:
- 1310 nm
- 1550 nm
Reflectometer fiber type:
- Singlemode
- Multimode
