Optical Time Domain Reflectometer ORIENTEK TR600 SS24AF
id: 848332
Optical Time Domain Reflectometer ORIENTEK TR600 SS24AF
General information
Warranty
USD 3300.00
General information
5 kg 110, 220 V Warranty: 12 months
OTDR for single mode & multimode fibers. Wavelength: 1310/1550/1625 nm. Dynamic range: 32/30/28 dB.
USD 3300.00
Buy wholesale and save

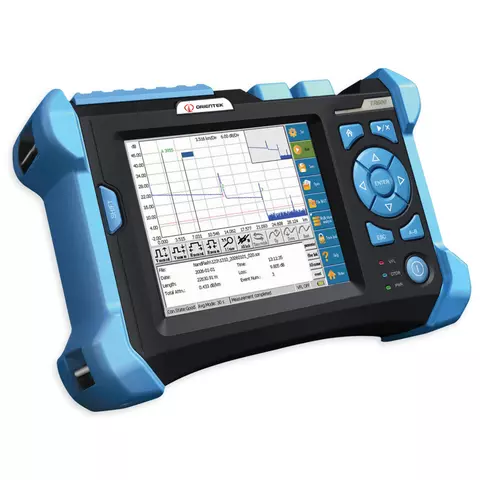

OrienTek TR600 SS24AF is an optical time domain reflectometer (OTDR) for single mode and multimode fibers with a wavelength of 1310/1550/1625 nm. The device is characterized by a high dynamic range and short dead zone.
Features
- Wavelength: 1310/1550/1625 nm.
- Applicable fiber: Single mode, Multimode.
- Built-in Visible Fault Locator (VFL).
- < 2 m extra-short event dead zone.
- Distance Range: 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256, 512 km (SMF); 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32 (MMF of 850 nm).
- USB interfaces, supporting USB flash and printer and direct cable download to PC via ActiveSync software.
- Memory capacity > 800 traces.
- Built-in lithium battery with high capacity for over 8 hours of operating life.
- Display: 6.5-inch color TFT touch screen LCD (640 × 480).
- One year warranty.
- Corrosion-proof, water-proof, dust-proof and unbreakable case.
Technical Specifications
| Wavelength | 1310/1550/1625 nm |
| Dynamic range | 32/30/28 dB |
| Pulse with | 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240, 20480 ns 5, 10, 30, 80, 160, 320, 640, 1280 (MMF of 850 nm) |
| Display | 6.5-inch color TFT touch screen LCD (640 × 480) |
| Lineraity | ± 0.5 dB/dB |
| Loss threshold | 0.01 dB |
| Loss resolution ratio | 0.001 dB |
| Sampling points | 128 K |
| Typical real-time refreshing duration | 0.2 |
| Memory capacity | ≥ 800 traces (build-in) ≥ 65500 traces (1 GB SD storage) |
| Measurement duration | user-defined; 5 sec; 10 sec; 15 ces; 30 sec; 1 min; 2 min; 3 min |
| Environment Conditions | |
|---|---|
| Operation temperature | -10 ～ +50℃ |
| Storage temperature | -40 ～ +70℃ |
| Relative humidity | 0% - 95% (non condensation) |
| Interfaces | |
| Optical interface | FC/UPC (PC and APC are selectable) |
| Data interface | USB, SD card |
| General Specifications | |
| Power supply | AC adapter 100 to 240 V, 50/60 Hz, 1.5 A DC: 19V±2V(2A) Built-in Lithium battery: 4400 mAh, operating time ≥ 8 hours |
| Dimensions | 150 × 235 × 66 mm |
| Weight | 1,5 kg |
Data Sheet
Download Download ORIENTEK SS24AF Data Sheet.
Interfaces
- Optical interface 1 / VFL
- Optical interface 2 / OTDR
- Charging indicator
- SD card interface
- Power adapter interface
- Earphone interface
- USB interface
- Ethernet interface
Package Contents
- OrienTek TR600 SS24AF OTDR — 1 pc.
- FC Connectors — 2 pcs.
- SC Connector — 1 pc.
- CD with Trace Manage Software — 1 pc.
- SD card — 1 pc.
- Peli Case — 1 pc.
Reflectometer dynamic range:
- 32 dB
- 30 dB
- 28 dB
Reflectometer wave length:
- 1310 nm
- 1550 nm
- 1625 nm
Reflectometer fiber type:
- Singlemode
- Multimode
