Optical Time Domain Reflectometer EXFO Maxtester MAX-720C-SM1
General information
Warranty
USD 3889.00
General information
Made in Canada
3.8 kg
Availability in stock:
HK
Complex Device, Tailored Solutions: We're Here to Help!
This device is highly sophisticated. If needed, we're ready to assist you in finding the best model for your specific needs.
Wavelength: 1310/1550 nm. Dynamic range: 36/35 dB. Event dead zone: 0.7 m. Attenuation dead zone: 3 m.
USD 3889.00
Note! This item is shipped within 10 working days.

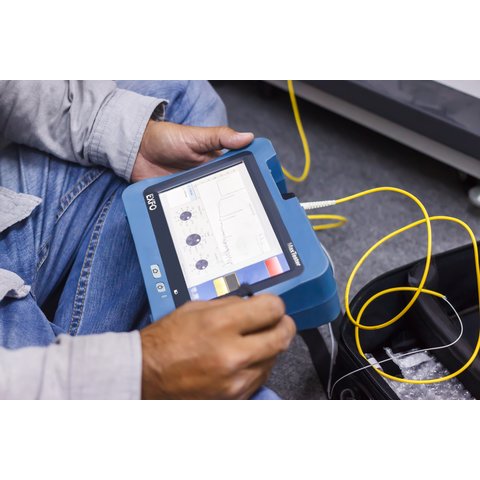

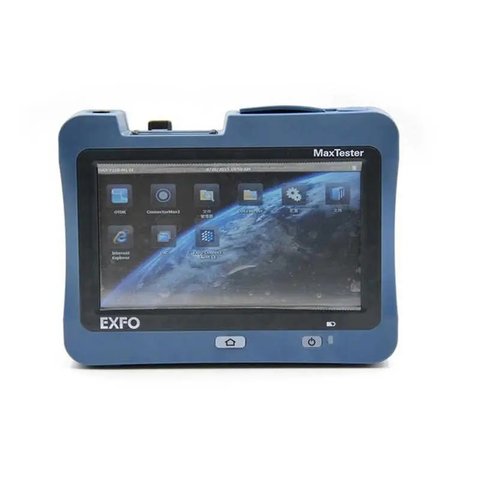

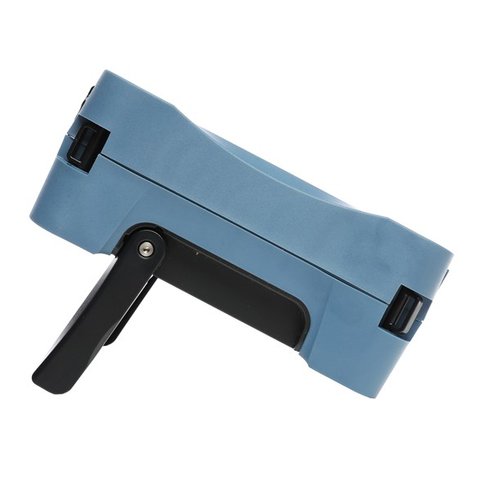

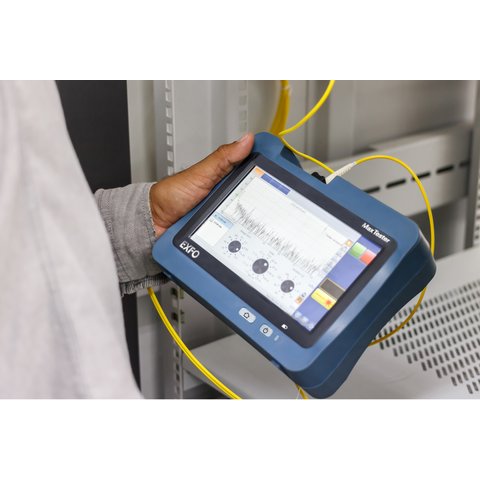

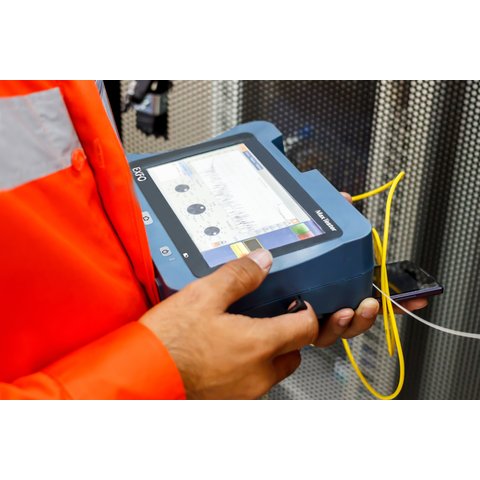

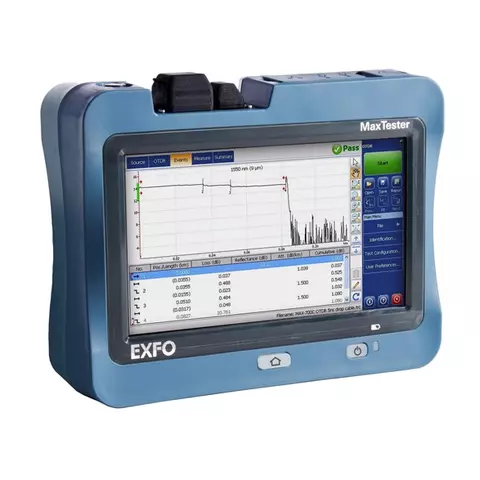

EXFO Maxtester MAX-720C-SM1 is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation.

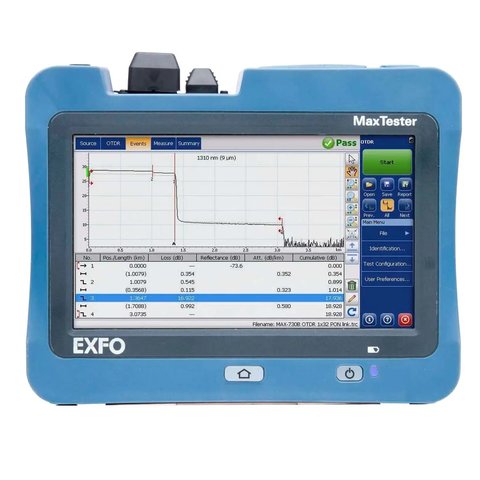

EXFO Maxtester MAX-720C may be supplied with iOLM software: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task
Features
- Handy, lightweight, powerful, tablet-inspired design.
- Wavelength: 1310/1550 nm.
- Test fiber type: SM (singlemode).
- 7-inch, outdoor-enhanced touchscreen.
- 12-hour autonomous operation.
- Dynamic range of up to 36/35 dB.
- Fully featured and integrated field test solution.
Technical Specifications
| Wavelength | 1310 ± 20 nm, 1550 ± 20 nm | |
| Dynamic range | 36/35 dB | |
| Event dead zone | 0.7 m | |
| Attenuation dead zone | 3 m | |
| PON dead zone | 35 m | |
| Distance range | 0.1-260 km | |
| Pulse width | 3-20 000 ns | |
| Launch conditions | EF-compliant | |
| Linearity | ±0,03 dB | |
| Loss threshold | 0.01 dB | |
| Loss resolution | 0.001 dB | |
| Sampling resolution | 0.04 to 10 m | |
| Sampling points | up to 256 000 | |
| Distance uncertainty | ±(0.75 m + 0.005 % × distance + sampling resolution) | |
| Measurement time | user-defined (60 minutes max.) | |
| Reflectance accuracy | ±2 dB | |
| Typical real-time refresh | 4 Hz | |
| Display | 7-in (178-mm) outdoor-enhanced touchscreen, 800 × 480 TFT | |
| Interfaces | Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s |
|
| Storage | 6 GB internal memory (20 000 OTDR traces, typical) | |
| Batteries | rechargeable lithium-polymer battery (12 hours of operation) | |
| Power supply | power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz | |
| Operating temperature | –10 °C to 50 °C (14 °F to 122 °F) | |
| Storage temperature | –40 °C to 70 °C (–40 °F to 158 °F) | |
| Relative humidity | 0 % to 95 % non-condensing | |
| Dimensions (H × W × D) | 166 mm × 200 mm × 68 mm | |
| Weight (with battery) | 1.5 kg | |
User Manual
Download EXFO MAX-720C-SM1 User Manual.
Spec Sheet
Download EXFO MAX-720C-SM1 Spec Sheet.
Package Contents
- Optical Time Domain Reflectometer EXFO Maxtester MAX-720C-SM1 — 1 pc.

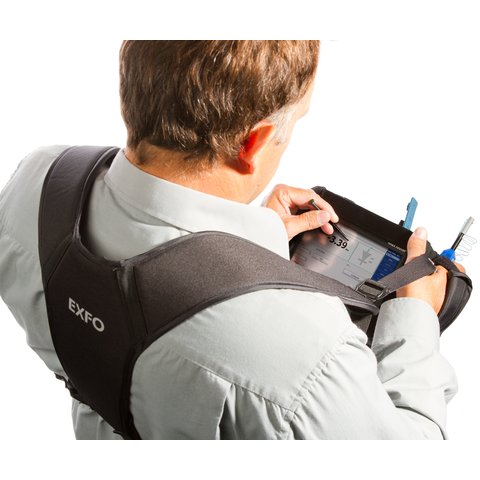

- Hand Strap — 1 pc.
- Battery — 1 pc.
- 20 W Power Supply — 1 pc.
- Soft Carrying Case — 1 pc.
- Stylus — 1 pc.
- Calibration Certificate — 1 pc.
- CD — 1 pc.
Reflectometer wave length:
- 1310 nm
- 1550 nm
Reflectometer fiber type:
- Singlemode
