Charging Module, (with Power Delivery (PD) support, DC5525, 65W)
id: 920353
Charging Module, (with Power Delivery (PD) support, DC5525, 65W)
General information
Warranty
Price coming soon
General information
0.015 kg Warranty: 1 months
A compact device with Type-C and DC5525 connectors that provides fast charging at an input voltage of 8 - 30 V and a power of up to 65 W
Price coming soon

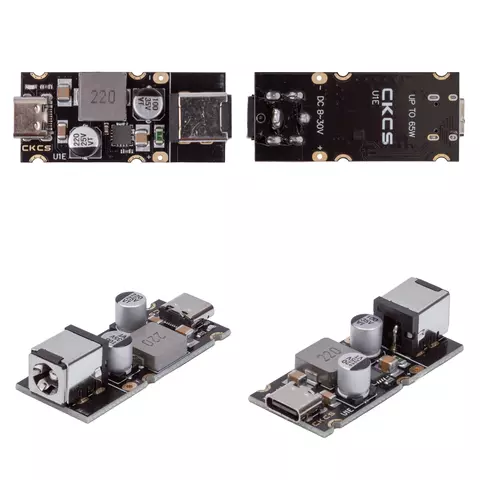

Charging module, with support for Power Delivery (PD), DC5525, 65W - a device with support for fast charging Power Delivery (PD). Equipped with a convenient Type-C connector for connecting a charging device and a DC5525 (5.5/2.5mm) connector for connecting a power source. Supports a wide input voltage range of 8 – 30 V.
Important! For the device to operate, the power supply must be at least 70 W. And the output voltage cannot be higher than the input.
Features
- Connecting the device using a Type-C connector.
- Input voltage range from 8 to 30 V.
- Supports Power Delivery (PD).
Technical specifications
| Supply voltage | 8 – 30 V |
| Maximum output power | 65 W |
| Output voltage | 5 V 3 A / 9 V 3 A / 12 V 3 A / 20 V 3.25 A |
| Dimensions | 47 × 20 × 12 mm |
| Weight | 10 g |
Package content
- Charging module – 1 pc.
