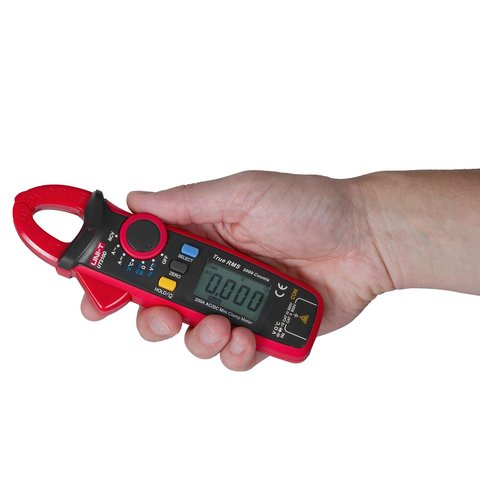

Mini Clamp Meter UNI-T UT210D
Frequently bought together
UNI-T UT210D Mini Clamp Meter designed for operation in limited space environments. Perfect for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.
Features
- NCV measurements
- ZERO mode
- Auto range
- 2~3 times/s sampling rate
- True RMS
- Continuity buzzer
- Data hold function
- Auto power off function
- Low battery indication
- LCD backlight
- Ergonomic and lightweight
Technical Specifications
Function | Range | Accuracy |
---|---|---|
AC current | 200 A | ±(2%+10) |
DC current | 200 A | ±(2%+3) |
AC voltage | 600 V | ±(1%+3) |
DC voltage | 600 V | ±(0.7%+3) |
Resistance | 20 MΩ | ±(1%+2) |
Frequency | 60 kHz | ±(0.1%+4) |
Capacitance | 20 mF | ±(4%+5) |
Temperature | -40~1000℃ | ±(1%+3) |
-40~1832℉ | ±(1.5%+5) | |
Diode test | Around 3.0V | |
General Characteristics | ||
Jaw opening | 17 mm | |
Power | 1.5 V battery (R03) x 2 | |
Display | LCD, 39.3 × 26.5 mm | |
Size | 175 × 60 × 33.5 mm | |
Weight | 170 g |
Video

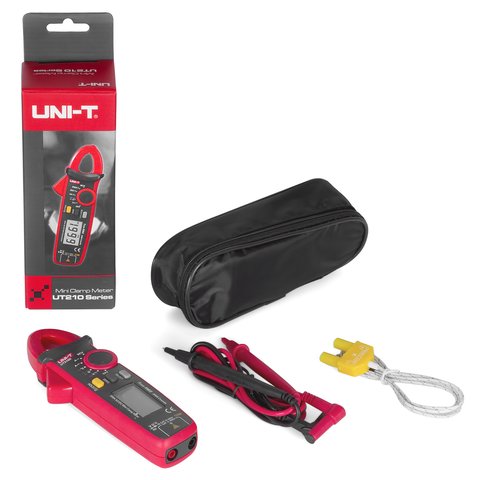

Package Contents
- UNI-T UT210D Mini Clamp Meter — 1 pc.
- Test leads — 1 set
- Point contact temperature probe — 1 pc.
- Carrying case — 1 pc.
- User manual — 1 pc.
Note! Batteries are not included in the package.
Clamp meter digit capacity:
- 2000
Clamp meter type:
- For AC/DC
Clamp meter DC voltage:
- Up to 600 V
Clamp meter AC voltage:
- Up to 600 V
Clamp meter resistance:
- Up to 20 MOhm
Clamp meter capacitance:
- Up to 20 000 µF
Clamp meter temperature:
- Yes
Clamp meter power:
- No
Clamp meter duty cycle:
- No
Clamp meter true RMS:
- Yes
Clamp meter backlight:
- Yes
Clamp meter PC connection:
- No connection to PC
Clamp meter diode test:
- Yes
Clamp meter analog bar graph:
- No
Clamp meter continuity test:
- Yes
Clamp meter jaw diameter:
- Diameter 17 mm
Clamp meter Three-phase voltage measurement:
- No
Clamp meter Three-phase current measurement:
- No
Clamp meter AC:
- Up to 200 A
Clamp meter DC:
- Up to 200 A
Clamp meter frequency:
- Up to 60 kHz
Clamp meter NCV:
- Yes
