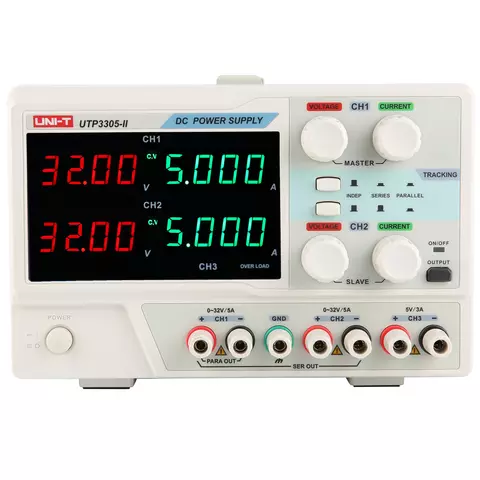

Linear DC Power Supply UNI-T UTP3305-II

Name: Linear DC Power Supply UNI-T UTP3305-II
Brand: UNI-T
SKU: 907385
Availability: OutOfStock
Rating: 5 (1 reviews)

id: 907385

General information

Warranty

Price coming soon

General information

5 (1)

11.5 kg Warranty: 24 months

Three-channel linear DC power supply with overvoltage/current/temperature protection. Output voltage: 0~32 V. Output current: 0~5 A

Price coming soon

Impossible to estimate the shipping cost

UNI-T UTP3305-II is a linear DC power supply that features two fully adjustable channels and one fixed channel. The adjustable channels provide 0~32V output voltage and 0~5A output current. The third channel provides a fixed output of 5V and 3A. The power supply is equipped with a temperature-controlled cooling system and OVP, OCP, OTP, and reverse polarity protection. Besides, the device features tracking and series/parallel output.

Features

Two fully adjustable channels (0~32 V) and one fixed channel (5 V).
Display mode: LED displaying voltage and current simultaneously.
Low ripple and noise.
Overvoltage/current/temperature protection.
Reverse polarity protection.
Parallel/series output function.
Output on/off control.
Intelligent temperature control fan.

Technical Specifications

General Specifications
Output Voltage (CH1/CH2)	0~32 V
Output Voltage (CH3)	5 V
Output Current (CH1/CH2)	0~5 A
Output Current (CH3)	3 A
Output Power	335 W
Load Regulation	CV: <0.01%+3 mV; CC: <0.2%+3 mA
Ripple and Noise	CV: ≤1 mVrms; CC: ≤3 mArms
Output Regulation Resolution	CV: 10 mV (typical), CC: 1 mA (typical)
Tracking Bias	CC: ±(0.3% of reading + 10 mA)
Reliability	MTBF(e): ≥2000 hours
Display Mode	4-bit voltage and current dual display
Power	input voltage: 115 V AC/230 V AC; frequency: 47 Hz~63 Hz
Display	4 windows, LED
Dimensions	226 mm × 146 mm × 319 mm
Weight	10.5 kg
