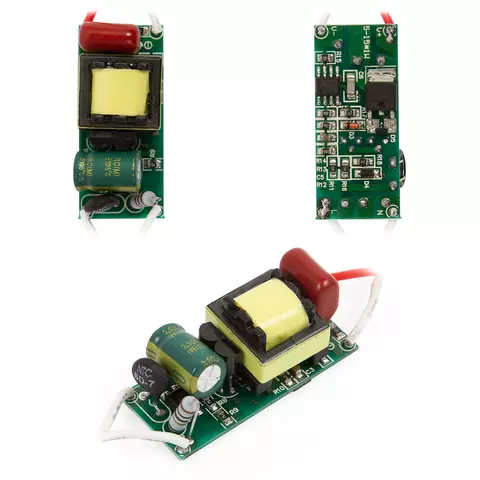

LED Lamp Driver with Dimmer 5-15 W 85V-265V 50/60 Hz
id: 863562
LED Lamp Driver with Dimmer 5-15 W 85V-265V 50/60 Hz
General information
Warranty
USD 1.80
General information
0.02 kg 110, 220 V Warranty: 6 months
The driver is used to regulate the current flowing through the LED during operation. Also has a dimmer function.
USD 1.80
Buy wholesale and save
LED driver regulates the input current using PWM (Pulse-Width Modulation) and transforms the AC power into acceptable DC voltage. Also has a dimmer function.
The driver is compatible with the follwoing dimmers:
Technical Specifications
| Input voltage | AC 85-265 V |
| Output voltage | DC 15-45 V |
| Output current | 300 mA |
| Operating temperature | -20~80 °C |
| Certification | CCC, CE, EMC, RoHS |
| Usage | 5-15 LEDs × 1 W |
| Weight | 20 g |
LED lamp driver voltage:
- 85 V ~ 265 V
LED lamp driver galvanic isolation:
- With galvanic isolation
LED lamp driver housing:
- Without housing
LED lamp driver output current:
- 300 mA
LED lamp driver power:
- 5 W ~ 15 W
LED lamp driver type:
- Dimmable
