LED Controller with Bluetooth Control SP107E (960 px, RGB, WS2811, WS2812B, WS2813, SK6812 5-24 V)
General information

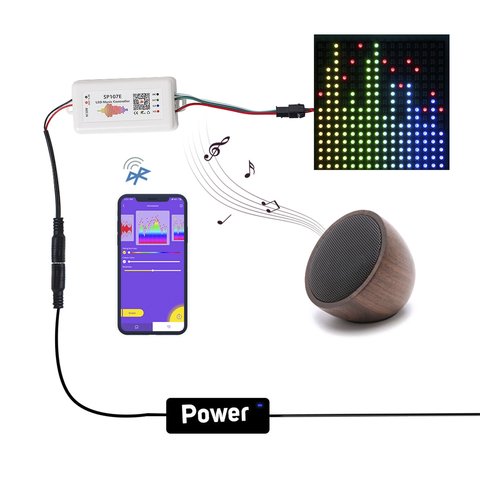

SP107E-Music-Controller is a multicolor LED controller that allows controlling RGB modules and strips (WS2811, WS2812B, WS2813, SK6812) via Bluetooth with the help of a special smartphone application.
SP107E is equipped with built-in microphone, which reacts to sound and changes the behavior of connected modules and strips. There's also an AUX IN input, which can be used to input an audio signal instead of the microphone.

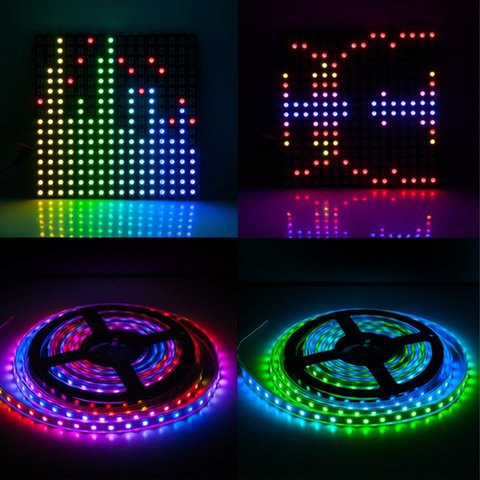

The adapter has 30 music lightning effects for LED modules, 18 for LED strips and 180 non-music lighting effects. Speed, brightness, number of pixels, color and sensitivity of all effects can be adjusted.
Technical Specifications
| Voltage | 5-24 V |
| Input current | 18-45 mA |
| Maximum remote control distance | 20 m |
| Maximum number of pixels | 960 |
| Operating temperature | -20oC - +60oC |
| Dimensions | 85 × 45 × 22 mm |
| Weight | 40 g |

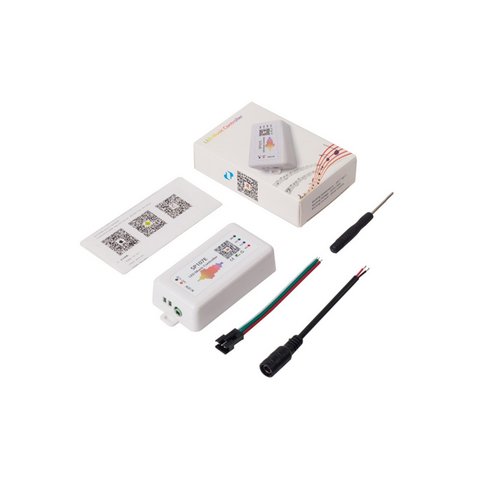

Package Contents
- Controller — 1 pc.
- Connection cables — 2 pc.
- Mini screwdriver — 1 pc.
LED standalone controller voltage:
- 5-24 V
LED standalone controller remote control present:
- No
LED standalone controller SD-card present:
- No
LED standalone controller Wi-Fi present:
- No
LED standalone controller control type:
- Standalone
LED standalone controller number of controlled pixels:
- 960 pxls
LED standalone controller bluetooth:
- Yes
