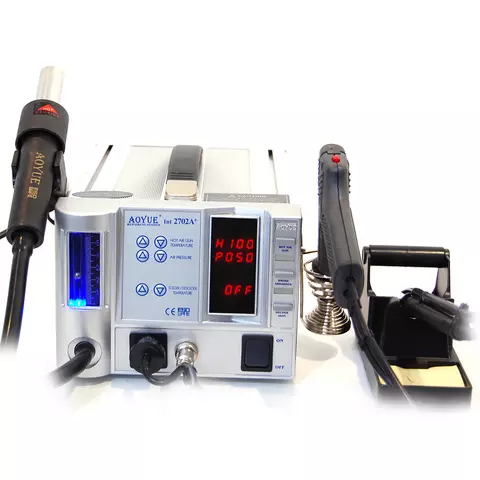

Lead-Free Hot Air Soldering Station AOYUE 2702A+ (110 V)
id: 814130
Lead-Free Hot Air Soldering Station AOYUE 2702A+ (110 V)
General information
Video
Warranty
USD 235.00
General information
Video
Video
7.5 kg 110 V Warranty: 12 months
4 in 1 lead-free soldering station combines hot air gun, soldering iron, desoldering gun and smoke absorber functions. Microprocessor controlled ESD safe unit. Diaphragm pump. Hot air gun auto-cool function.
USD 235.00
Buy wholesale and save
AOYUE 2702A+ is a lead-free hot air soldering station which combines hot air gun, soldering iron, desoldering gun and smoke absorber functions. AOYUE 2702A+ can be used to work with the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, BGA, etc).
Features
- 4 in 1: hot air gun, soldering iron, desoldering gun, and smoke absorber
- Microprocessor controlled ESD safe unit
- Set and actual temperature of hot air gun, soldering iron, air pressure and desoldering gun temperature digital control and display
- Auto-sleep mode: setting up time (1 to 20 minutes), after which soldering station automatically comes to sleep mode and returns to previous settings when the handle is held up again
- Programmable auto reworking time (20 to 9999 s)
- Auto-cool function: increasing the reliable operation of the station and its components
- Compatibility with AOYUE air nozzles
- Compatibility with AOYUE LF-series tips
Applications
- In medium and large scale service centers.
- Mobile and radio systems devices repair.
- Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair.
- LAN, network nodes, and military communications systems equipment repair.
- BGA reballing.
Technical Specifications
| Main Station | |
|---|---|
| Power Input | 110 V |
| Dimensions, mm | 188 × 126 × 250 |
| Weight, kg | 5.6 |
| Soldering Iron | |
| Power Consumption | 70 W |
| Temperature Range | 200 °C to 480 °C |
| Heating Element | Ceramic heater |
| Output Voltage | 24 V |
| Hot Air Gun | |
| Power Consumption | 500 W |
| Temperature Range | 100 °C to 480 °C |
| Heating Element | Metal heating core |
| Pump Type | Diaphragm pump |
| Air Capacity | 23 l/min (max) |
| Desoldering Gun | |
| Temperature Range | 200 °C to 480 °C |
| Heating Element | Ceramic heater |
| Output Voltage | 24 V |
| Suction Flow | 15 l/min (max) |
| Vacuum Generator | Vacuum pump |
| Vacuum Pressure | 600 mm Hg |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download AOYUE 2702A+ User Manual.
Package Contents
- Main station — 1 pc.
- Hot air gun — 1 pc.
- Hot air gun holder — 1 pc.
- Soldering iron with smoke absorber — 1 pc.
- Soldering iron holder — 1 pc.
- Soldering iron tip with heater cartridge — 1 pc.
- Air nozzles (1124, 1130, 1197, 1313, 1919) — 5 pcs.
- Nozzle cleaning pin — 1 pc.
- Spare hot air gun heating element — 1 pc.
- Vacuum suction pen — 1 pc.
- IC popper — 1 pc.
- Power cord (1 m) — 1 pc.
- User manual — 1 pc.
Hot air soldering station pump type:
- Compressor
Hot air soldering station design type:
- Desktop
Hot air soldering station vacuum pick-up tool:
- Non-available
Hot air soldering station desoldering pump:
- Available
Hot air soldering station power supply:
- Non-available
Hot air soldering station soldering iron power:
- 70 W
Hot air soldering station hot air gun power:
- 500 W
Hot air soldering station desoldering gun:
- Available
