LCR Meter OWON LCR2020

Name: LCR Meter OWON LCR2020
Brand: OWON
SKU: 917837
Availability: OutOfStock

id: 917837

General information

Warranty

Price coming soon

General information

4 kg Warranty: 12 months

Measures inductance, capacitance, resistance value, complex impedance, quality factor, loss tangent value, phase angle, and DC resistance with an accuracy of 0.05%

Price coming soon

Impossible to estimate the shipping cost

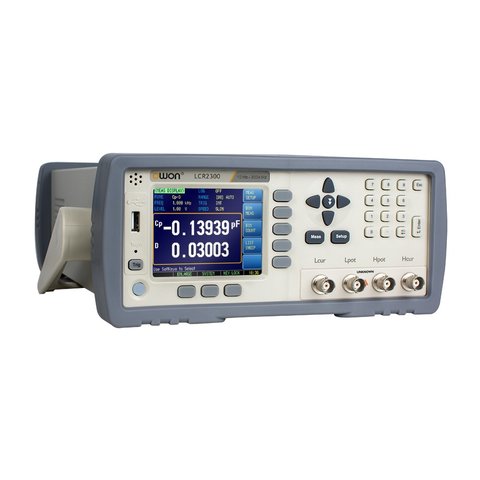

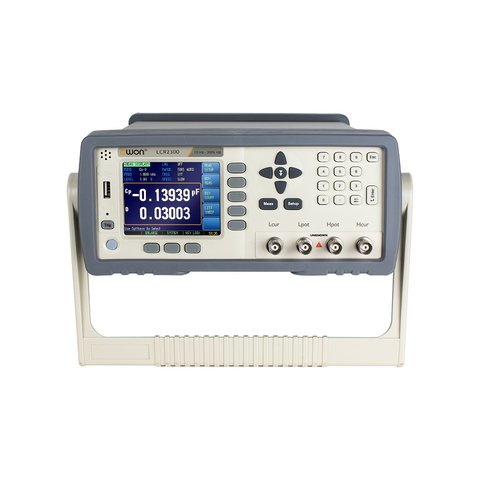

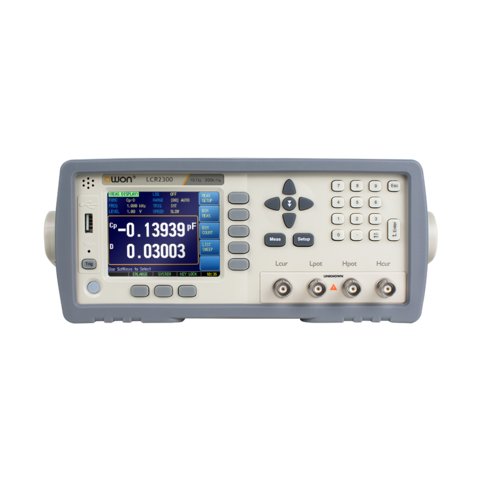

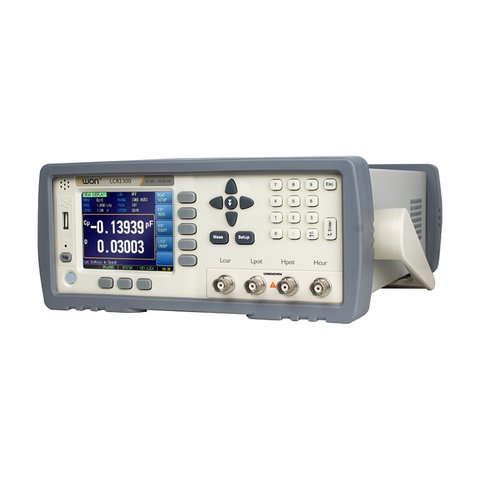

OWON LCR2020 is a precision benchtop RLC meter controlled by high-performance 32-bit ARM microprocessor. It measures inductance, capacitance, resistance value, complex impedance, quality factor, loss tangent value, phase angle, and DC resistance with an accuracy of 0.05%. It supports measurement frequencies from 10 Hz to 20 kHz, offers sorting and data storage functions, and features interfaces for RS-232C, Handler, and USB The device supports SCPI and Modbus protocols for remote control and data acquisition.

Features

Consecutive test frequency
Basic accuracy: 0.05%
Measurement speed up to 40 times per second
9-range test options, auto, lock, and nominal (the instrument automatically selects the best range based on nominal value)
DCR measurement and internal DC bias voltage (±2.5V)
3.5-inch color LCD

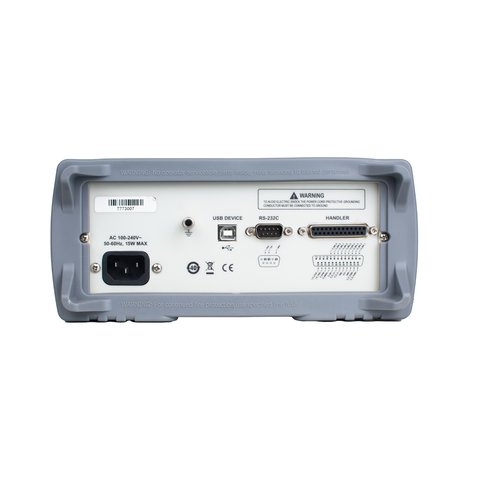

Interfaces: RS-232C, Handler, USB Host/Device
Supports SCPI and ModbusRTU communication protocols

Technical Specifications

Test Functions	Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θr, Z-θd, DCR
Monitor Parameters	Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Lac, △, △%
Test Frequency	10 Hz～20 kHz
Basic Accuracy	0.05% (Slow/Med), 0.1% (Fast)
Measurement Speed	40 times/s, 10 times/s, 3 times/s
Display Ranging	L: 0.00001 μH ～ 9999.99 H C: 0.00001 pF ～ 9999.99 mF R, X, Z: 0.00001 Ω ～ 99.9999 MΩ B, G: 0.01 nS ～ 999.999 cm D: 0.00001 ～ 9.99999 Q: 0.00001 ～ 99999.9 θd: -179.999°～179.999° θr: -3.14159 ～ 3.14159 %: -999.999% ～ 999.999%
Output Impedance	30 Ω, 50 Ω, 100 Ω
Ranging	Auto, Hold and Nominal range. Total 9 ranges
DC Bias (Internal)	-2.50 V ~ +2.50 V
Correction Function	OPEN/SHORT
Beep Feature	OFF/PASS/FAIL and HIGH/LOW tone
Memory	built-in 10 files
Trigger Mode	Internal, Manual, External and Remote Trigger
Interface	USB Host / Device, RS232, Handler
Display	3.5” LCD
Power Supply	100-240 V AC, 50-60 Hz
Fuse	250 V, 3 A, Slow-Blow
Maximum Rated Power	15 V
Dimensions	264 mm × 349.5 mm × 216 m × 322.9 mm
Weight	3 kg
